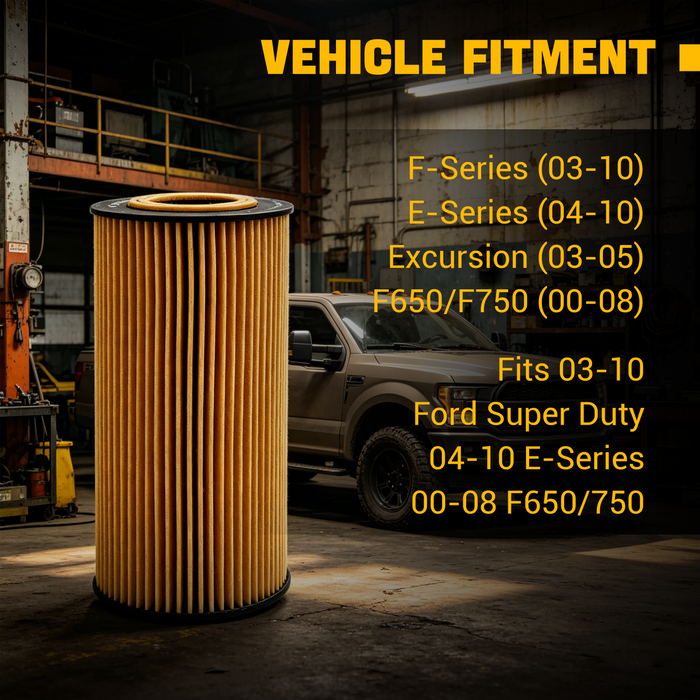

FITMENT
-
2003-2007 6.0L F-250 F-350 F-450 F550 Super Duty
-
2008-2010 6.4L F-250 F-350 F-450 F550 Super Duty
-
2004-2010 6.0L E-350 Super Duty
-
2003-2005 6.0L Excursion
-
2004-2005 6.0L E-350 Club Wagon
-
2004-2010 6.0L E-450 Super Duty
-
2000-2008 6.0L F650 F750
OEM Cross-Reference
-
FL2016,3C3Z-6731 AA, 1840752C91, PF1704, P7235, CH9549, 57311, P550528, LF16166, ML1034.
DESCRIPTION
Product Overview
- The lubrication systems in Ford 6.0L and 6.4L Powerstroke engines subject motor oil to immense stress—whether fluid pressure is actuating 6.0L HEUI injectors or high-performance twin turbochargers are shearing oil in the 6.4L. Under these extreme conditions, conventional filtration media can degrade, leading to restricted oil passages and letting unfiltered particulates reach critical bearings.
- The TruckTok premium oil filter features a high-strength inner core and a reinforced synthetic-blend pleated media to counteract these severe pressures. Built to resist pleat collapse and distortion during heavy towing or extreme cold starts, this filter maintains structural integrity and supports stable oil pressure regulation across both engine generations.
Key Features

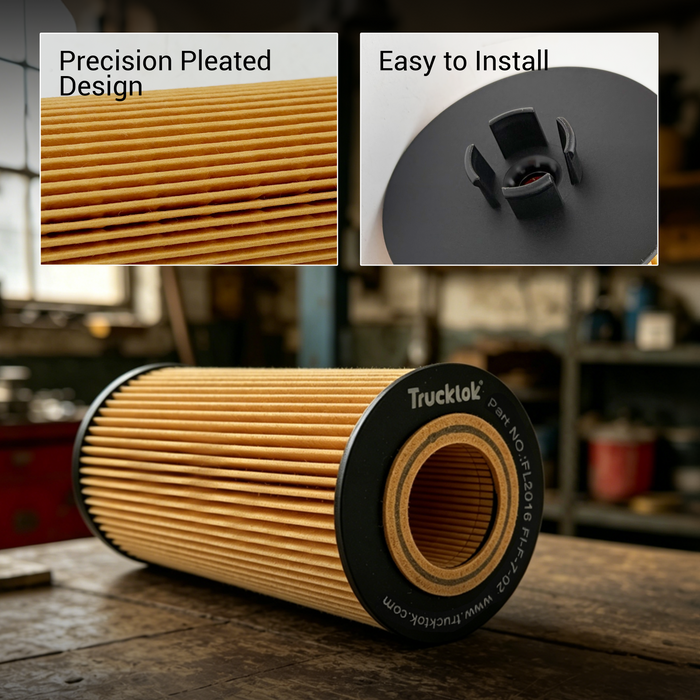

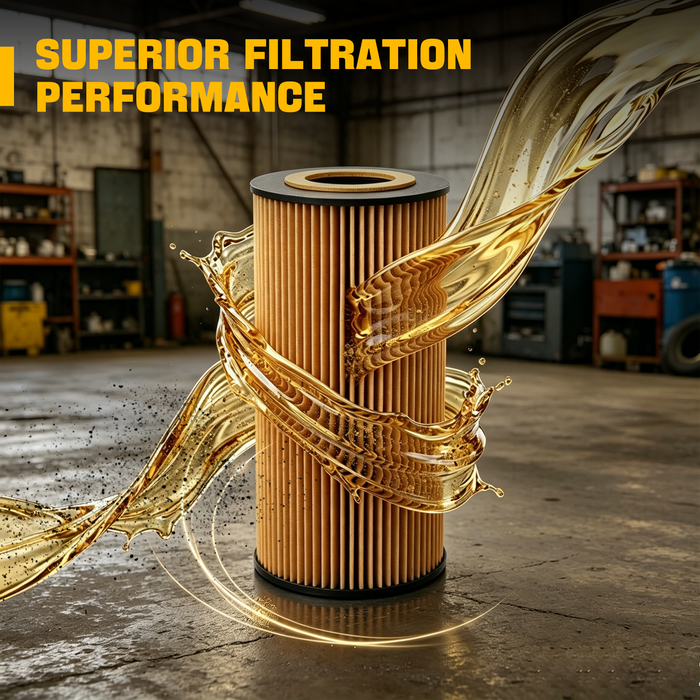

- Engineered with a high-density, pleated synthetic-blend formulation to deliver up to 99% efficiency in trapping abrasive soot, metal particulates, and micron-level debris while ensuring high dirt-holding capacity.
- Built with reinforced end caps and a sturdy inner core engineered to withstand immense operational pressures, effectively preventing structural distortion or pleat collapse.
- Supports steady, unrestricted flow rates to prevent oil starvation, helping maintain critical system pressure during heavy towing and extreme duty cycles.

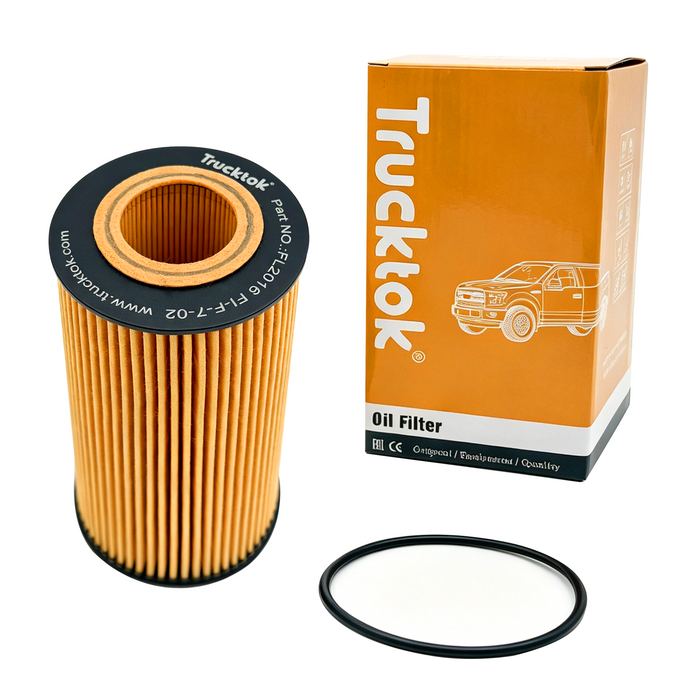

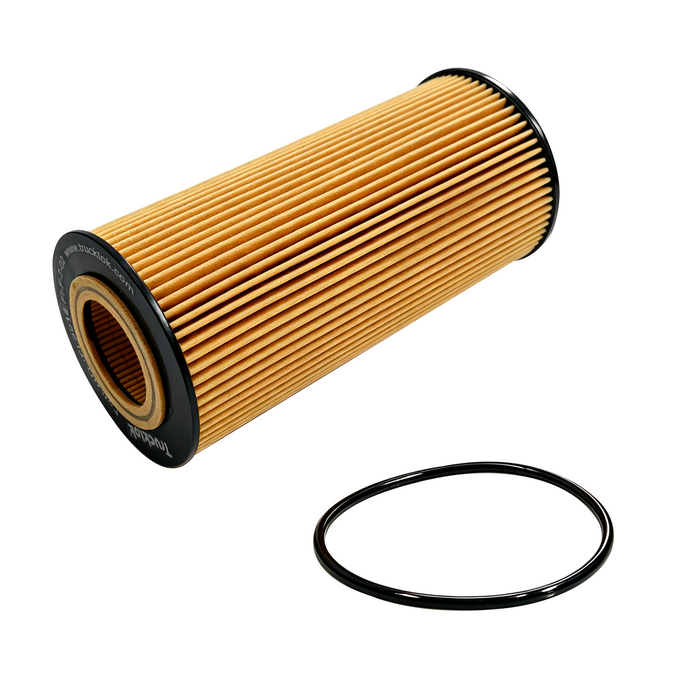

- Supplies a brand-new, premium elastomeric O-ring designed to resist chemical degradation and extreme engine temperatures for a dependable, leak-free seal.
Replacement Interval
-
Replace every 3,000 to 5,000 miles, coinciding strictly with your scheduled engine oil drain interval. Whether protecting the 6.0L HEUI system from high-pressure mechanical shearing or safeguarding the 6.4L common-rail platform against severe fuel dilution caused by DPF regeneration cycles, clean oil is critical. Because heavy-duty diesel platforms generate high volumes of carbon soot, and modern EGR-equipped engines accelerate particulate loading within the lubrication system, maintaining strict compliance with this shortened service window is vital. Do not exceed the maximum limit of 5,000 miles between oil and filter elements to prevent catastrophic component wear and premature injector failure.
FAQ
Q: Why does an oil filter matter more on a diesel than a gas engine?
A: Diesel engines produce high volumes of carbon soot (0.1-0.5 microns) that accelerate component wear in main bearings and turbo shaft journals. EGR systems further compound this contamination. On the 6.0L Powerstroke, clean oil is critical because the HEUI system utilizes engine oil pressure to actuate the fuel injectors. While the 6.4L transitioned to common-rail injection, its high-performance twin turbochargers and tight-tolerance bearings still demand exceptional oil purity for longevity.
Q: How does the oil drain-back protection work on this filter?
A: The FL2016 is a direct-replacement cartridge element and does not feature an integrated anti-drainback or internal check valve. Fluid bypass and drain-back functions are managed entirely by the factory mechanical valve assemblies located inside the engine-block filter housing. Upon installation, the cartridge seats within the housing to let these factory systems properly regulate oil flow.
Q: How does this compare to the Motorcraft FL2016 filter?
A:This service element is engineered to meet OEM specifications for filtration efficiency, micron rating, and physical dimensions. It features a precise cartridge-style design that drops directly into the factory plastic oil filter housing cap without requiring modifications, separate adapters, or spin-on threads.
Q: Can I run this filter with full synthetic 5W-40 diesel oil?
A: Yes. The premium synthetic-blend filtration media is fully compatible with conventional 15W-40, synthetic-blend, and full synthetic 5W-40 diesel engine oils. The reinforced pleated structure handles the flow rates and operational pressures of these standard diesel formulations without altering the factory bypass thresholds.
Q: Should I replace the fuel filter at the same time?
A: Yes. Because engine oil and fuel filtration maintenance intervals frequently overlap between 10,000 and 15,000 miles, performing both services concurrently is a recommended industry practice. To streamline your schedule, we offer dedicated multi-filter combinations: our 2003-2007 6.0L Fuel + Oil Filter Kit and our 2008-2010 6.4L Fuel + Oil Filter Kit.
