FITMENT
- Rope Compatibility: Designed for steel cables and synthetic ropes from 7/32" to 7/16" in diameter.
- Winch Compatibility: Works with all standard electric and hydraulic winches (Class III to V).
DESCRIPTION
Product Overview

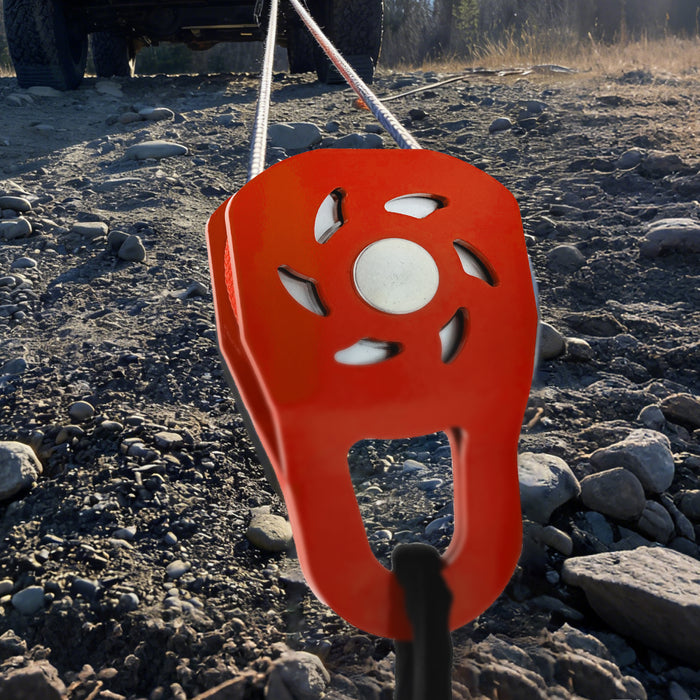

- A snatch block is the single most effective way to multiply your winch’s pulling power — and the TruckTok 10-Ton Snatch Block does it with forged steel reliability. By routing your winch line through the pulley and back to an anchor point, you effectively double your pulling force while halving the load on your winch motor. In practical terms: a 10,000 lb winch becomes a 20,000 lb winch, pulling with less strain and less battery drain.
- The 360° rotating side plates allow for quick, tool-free rope installation and automatically align with the direction of the pull — no binding, no cable kinking. The premium enclosed bearing ensures the pulley spins smoothly and reliably through years of muddy recoveries, while the fully sealed design keeps water and grit out, eliminating the need for messy maintenance. The bright red powder-coated finish makes the block easy to spot in mud, sand, or low light. For anyone who winches in deep mud, up steep inclines, or with a winch that’s near its capacity, a snatch block isn’t optional — it’s essential.
Key Features
- A snatch block creates a 2:1 mechanical advantage — your 10,000 lb winch now pulls with 20,000 lbs of force while the motor works at half load. Less battery drain, less heat, more extraction capability.
- The rotating side plates open for tool-free rope insertion and automatically align with the pull direction. No binding, no cable damage from misaligned pulleys.
- Features a premium enclosed bearing that ensures the pulley spins smoothly and reliably through years of muddy recoveries. The fully sealed design keeps water, mud, and grit out, eliminating the need for tedious manual greasing and messy maintenance.
- Rated for 22,000 lbs break strength with a 17,600 lb working load limit. Built to handle the forces generated when you double a heavy-duty winch’s pulling power.
- Works with synthetic rope and steel cable from 7/32" to 7/16" diameter — covering virtually all truck, Jeep, and ATV winch lines.

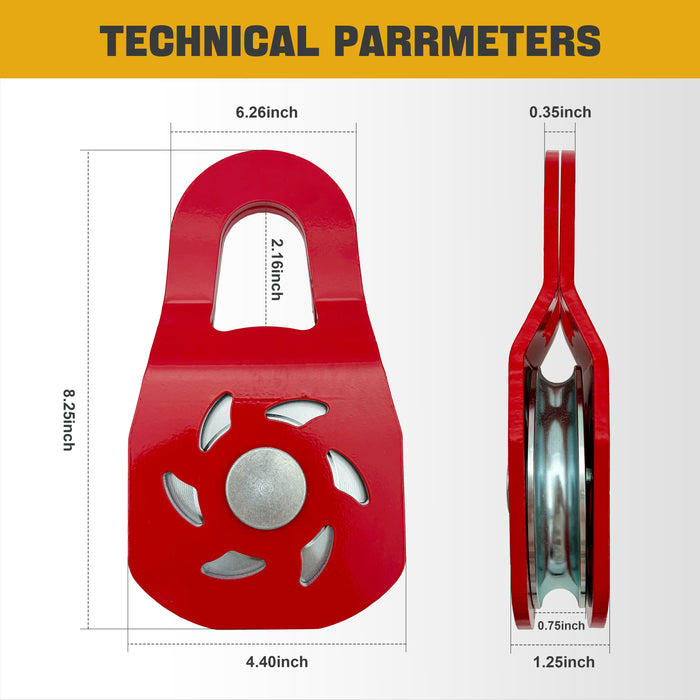

Specifications
| Spec |
Detail |
| Material |
High-Tensile Forged Steel |
| Break Strength |
22,000 lbs |
| Working Load |
17,600 lbs |
| Rope Fit |
7/32" to 7/16" Synthetic or Steel |
| Feature |
360° Rotating Side Plates + Sealed Bearing |
Safety & Testing
Every TruckTok hitch component is crafted from high-grade, premium materials and engineered to meet rigorous industry towing safety standards. Our weight and break strength ratings are backed by extensive laboratory load testing to ensure reliable, heavy-duty performance under real-world conditions. Every structural component undergoes strict, multi-stage quality control before leaving our facility to guarantee maximum safety and peace of mind on the road.
FAQ
Q: How exactly does a snatch block double my winch power?
A: When you run the line from your winch through the snatch block and back to an anchor point on your vehicle, the load is split between two sections of line instead of one. The winch only feels half the load, so it can pull twice as hard. It’s the same principle as a pulley system in physics — no magic, just mechanical advantage.
Q: Do I need to lubricate the snatch block?
A: No — this snatch block features a premium fully sealed bearing that is pre-lubricated for life. The enclosed design completely seals out water, mud, and grit, eliminating the need for messy manual greasing or maintenance. It’s ready for reliable, smooth operation right out of the box.
Q: Can I use a snatch block for a direction change instead of doubling power?
A: Yes — you can use it to redirect your winch line around an obstacle or to pull from an angle your winch can’t directly reach. In that configuration, you don’t get the 2:1 mechanical advantage, but you get a smooth, guided pull.
Q: Will this snatch block fit my synthetic rope?
A: Yes — it’s designed for both synthetic rope and steel cable from 7/32" to 7/16". The smooth pulley groove won’t abrade synthetic fibers the way a rough or worn steel pulley can.
Q: Need D-ring shackles or a winch hook for a complete winching setup?
A: You’ll need shackles to anchor the snatch block — pair it with our 3/4" D-ring shackles. For winch line safety, add a winch line damper. If you need a winch hook upgrade, see our 44,000 lbs forged winch hook.
