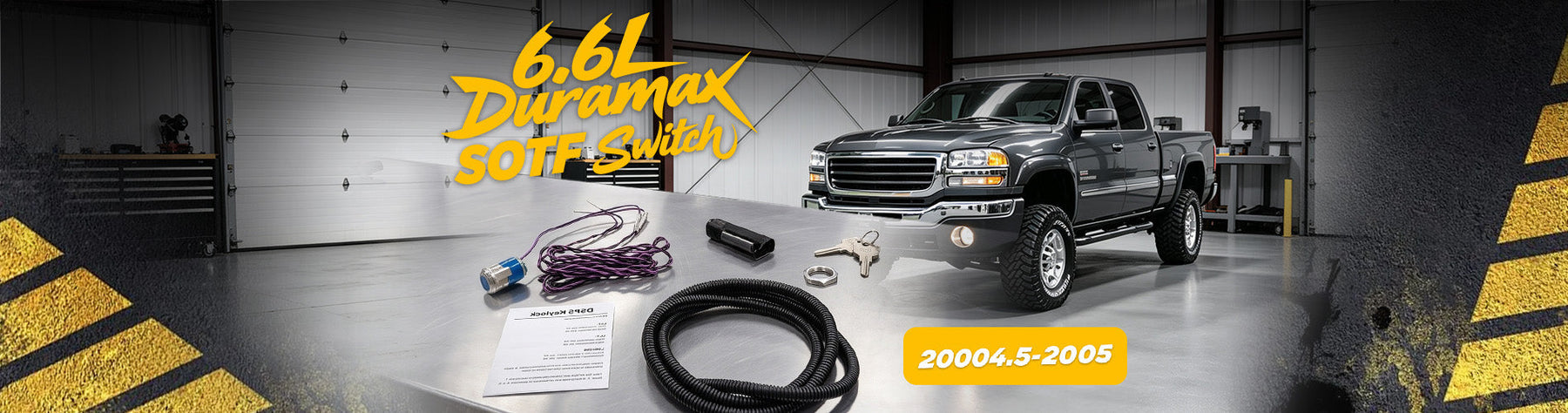

2004.5-2005 Chevy GMC Duramax LLY Key Lock DSP5 Switch: Complete Buying Guide
It was July 2023. I’d just finished a fresh DSP5 tune on my 2005 LLY — five positions, position 5 at 120 hp over stock. I left the truck at my brother-in-law’s house for the weekend so he could borrow it for a move. I told him: “Keep it on position 1. Tow mode. Don’t touch the switch.”
Monday morning he brought it back with the coolant reservoir empty and a cracked head gasket. He’d “accidentally” rotated the switch to position 5, floored it up a grade with a loaded trailer, and the LLY’s known head-bolt stretch let go.
The tune wasn’t the problem. The switch had no lock. Anyone who drove the truck could change the power level without knowing what they were doing.
Two weeks later I installed a key-lock DSP5 switch. Now position 1 stays locked unless I unlock it with the key. My brother-in-law can borrow the truck, load it to the gills, and the tune stays in safe Tow mode no matter what he does to the dash.
That’s the difference between a standard DSP5 switch and the TruckTok ER-0303 Key Lock SOTF Switch ($69.99). And for the 2004.5-2005 LLY, it’s the only switch I recommend.
The LLY Duramax Needs DSP5 — Not Fuel-Sensor SOTF
Here’s the single most important fact about buying a switch for the 2004.5-2005 LLY Duramax: it uses the DSP5 protocol, not the fuel-temperature-sensor protocol that the 2006-2010 LBZ/LMM uses.
The LLY (2004.5-2005) and its predecessor the LB7 (2001-2004) read the 5-position switch through the cruise control cancel wire — GM circuit 379, a dark green wire that runs from the steering wheel cruise cancel button through the clock spring to the ECM. The DSP5 switch T-taps into this wire and presents five different resistance values. The ECM reads the resistance as a “cruise cancel” signal and translates it into a tune position.
The LBZ/LMM (2006+) reads the switch through the fuel temperature sensor in the fuel filter housing — a completely different circuit, a different wiring harness, and a different mounting location.
If you buy a switch labeled “Duramax SOTF” without confirming it’s DSP5 for the LLY, you’ll get a unit designed for the LBZ/LMM fuel temp circuit. It won’t work on your LLY. The connector won’t match. The wire colors won’t match. You’ll be back on the forum asking why your switch does nothing.
The ER-0303 is specifically engineered for the 2004.5-2005 GM 6.6L LLY for 100% DSP5 compatibility. That’s the first box to check.
Why the LLY Platform Is Different
The 2004.5-2005 LLY Duramax produced 310 hp and 605 lb-ft from the factory — slightly less than the later LBZ/LMM, but with the same Bosch CP3 injection pump and Allison 1000 transmission. The LLY is known for two things:
- Strong tuning headroom — the CP3 pump and injectors handle moderate tunes well
- Known weak points — the LLY has a reputation for head gasket / head bolt stretch under high EGT, and the #8 injector (passenger-side rear) runs hotter than the others
This combination means the LLY responds well to a 5-position tune, but it needs EGT discipline. The head gasket issue is real — running position 5 under heavy load for sustained periods is how people crack heads. A key-lock switch that lets you lock the truck in safe Tow mode when someone else drives is not a luxury on an LLY. It’s insurance.
Live Competitor Comparison (July 2026)
| Brand | Model | Price | Key Lock | Protocol | Knob / Detents | EFI Live DSP5 | Warranty | Notes |
|---|---|---|---|---|---|---|---|---|
| TruckTok | ER-0303 (Key Lock) | $69.99 | Yes — physical key | DSP5 (LLY/LB7) | Crisp detents, rugged housing | 100% compatible | 1 year limited | Locks in Tow/Valet; prevents unauthorized switching |
| Diesel Hound | DSP5 Switch (optional lock) | $59.99–$89.99 | Optional (+$30) | DSP5 (LLY/LB7) | Plastic or metal knob | Compatible | 30-day | Works on LLY; lock is separate add-on |
| Gumfighter (EFI Live style) | DSP5 Rotary | $45–$75 | No | DSP5 (LLY/LB7) | Plastic knob, standard detents | Compatible | Varies | Popular budget DSP5; no security feature |
| DP Customs | Universal DSP5 | $49.95 | No | DSP5 (LLY/LB7) | Basic plastic knob | Compatible | 90-day | Correct protocol; no lock; generic housing |
| PPE | DSP5 Switch | $79.95 | No | DSP5 (LLY/LB7) | OEM-style knob | Compatible | 1 year | Higher price, no lock, standard DSP5 |
| Amazon Generic | Multi-platform rotary | $25–$45 | No | “Duramax” (verify DSP5) | Cheap plastic | Tuner-dependent | None | Sold as “all Duramax”; verify LLY DSP5 before buying |
Prices and availability verified via Google Shopping and manufacturer/product listings, July 2026. Competitor data sourced from diesel retailer product pages and forum-verified reviews on DuramaxTalk.com.
5 Factors for Choosing the Right LLY DSP5 Switch
1. Confirm DSP5 Protocol (Not Fuel-Sensor SOTF)
The 2004.5-2005 LLY reads the switch through the cruise cancel wire (GM circuit 379). Any switch you buy must explicitly state DSP5 compatibility for the LLY/LB7. If the listing says “SOTF” without “DSP5,” or says “fits all Duramax,” it’s likely a fuel-temp unit for the LBZ/LMM — wrong platform. The ER-0303 states “100% DSP5 compatibility” for the 2004.5-2005 LLY directly.
2. Key Lock Security
This is the defining feature of the ER-0303. A physical key lock prevents the switch from rotating without the key. Use cases:
- Valets — lock in Tow mode, no one can change the power level
- Mechanics — lock before dropping at the shop so a test drive doesn’t end in a cracked head
- Family / lenders — lock in Valet mode when you lend the truck
- Theft deterrence — a would-be thief can’t easily max out the tune
Generic DSP5 switches have no lock. Your tune is one careless twist away from disaster every time someone else touches the truck.
3. Detent Quality and Housing
The LLY DSP5 switch lives in the dash — exposed to vibration, glove-box slams, and temperature swings. Crisp detents matter: a mushy switch can drift between positions on a rough road, causing the ECM to see an undefined resistance and throw a fault. The ER-0303 uses “high-quality components with crisp detents, built for rugged truck environments.” Generic switches use soft detents that wander.
4. Wiring Harness Quality
The DSP5 harness T-taps the cruise cancel wire near the ECM. Look for:
- Correct gauge wire (18–20 AWG) for the signal circuit
- Weather-resistant T-tap or posi-tap connectors — not cheap wire nuts
- OE-style terminals at the ECM connection
- Sufficient harness length to reach from the dash switch to the ECM without an extension
The ER-0303 ships as a complete harness with the correct connections for the LLY. Generic kits often ship bare wire and expect you to source your own taps.
5. Return Policy and Support
A DSP5 switch that doesn’t read correctly on your specific EFI Live file is a paperweight. TruckTok offers a 1-year limited warranty on the ER-0303. Generic Amazon/Ebay switches typically have no return once installed. If the switch fails within a year due to a manufacturing defect, it’s covered.
Five Mistakes LLY Buyers Make — and How to Avoid Them
Mistake 1: Buying an LBZ/LMM fuel-sensor switch for an LLY The 2006+ LBZ/LMM SOTF switch connects to the fuel temp sensor in the filter housing. The LLY DSP5 switch connects to the cruise cancel wire. Different circuits, different connectors, different mounting. A fuel-sensor switch will not work on an LLY. Buy DSP5-specific.
Mistake 2: Installing the switch before flashing a DSP5 tune The switch requires an EFI Live DSP5 tune loaded to the ECM. Without it, rotating the switch does nothing. Flash the tune first, verify all 5 positions read correctly with a scan tool, then install the switch.
Mistake 3: T-tapping the wrong wire The cruise cancel wire (GM circuit 379, dark green) is one of several green wires in the ECM harness. Tap the wrong one and the switch is dead — or worse, you interrupt the actual cruise cancel function. Use a wiring diagram specific to the 2004.5-2005 LLY and verify with a multimeter in continuity mode before cutting.
Mistake 4: Leaving the truck unlocked around others The whole point of a tune is power on demand. The whole risk is someone else demanding that power without knowing the consequences. If you lend the truck, lock it in Tow or Valet mode. The ER-0303 key lock makes this a 10-second step, not a “trust me” conversation.
Mistake 5: Ignoring EGT on position 5 The LLY head gasket is the weak link. Position 5 at sustained high EGT is how heads crack. Monitor EGT with a gauge or scan tool. If you can’t watch EGT, lock the truck in position 3 or lower for anyone else who drives it.
2004.5-2005 LLY Duramax EGT Reference Guide by DSP5 Position
EGT data for the 2004.5-2005 LLY. Values are approximate — your actual readings depend on ambient temperature, altitude, fuel quality, and tune calibration. The LLY head gasket is the known weak point; EGT management is the single most important operational consideration under tune.
| DSP5 Pos | Tune Level | Empty Highway EGT | Towing 8,000 lb EGT | Towing 12,000+ lb EGT | Action if Climbing Long Grades |
|---|---|---|---|---|---|
| 1 | Stock / Tow | 550–700°F | 750–900°F | 850–1,000°F | Normal — stay here on steep grades |
| 2 | Economy / Light | 650–800°F | 850–1,000°F | 950–1,100°F | Acceptable for light-medium loads |
| 3 | Daily / Moderate | 750–900°F | 950–1,100°F | 1,050–1,200°F | Watch EGT closely; drop if climbing |
| 4 | Sport / Performance | 850–1,000°F | 1,050–1,200°F | 1,150–1,300°F | Drop two positions on sustained grades |
| 5 | Race / Max | 950–1,150°F | 1,150–1,300°F+ | 1,250°F+ | Never on heavy load; brief passes only |
EGT values estimated from DuramaxTalk.com community data and EFI Live tuning forum archives, July 2026. Values apply to 2004.5-2005 LLY with standard maintenance. Deleted trucks (EGR delete) may show different EGT profiles.
Frequently Asked Questions (FAQ)
Q: Will the ER-0303 work on my 2004.5-2005 LLY Duramax?
Yes. The ER-0303 is engineered for the 2004.5-2005 GM 6.6L LLY for 100% DSP5 compatibility. It will not work on LBZ/LMM (2006+) trucks — those use the fuel temp sensor protocol.
Q: Does the LLY use the same switch as the LB7 (2001-2004)?
The LB7 and LLY both use the DSP5 protocol on the cruise cancel wire. The ER-0303 is compatible with both LB7 and LLY. Confirm your ECM connector pin layout matches the included harness before installation.
Q: Do I need to load a tune before installing the key-lock switch?
Yes. The switch requires an EFI Live DSP5 tune loaded to the ECM. Without a DSP5 file, rotating the switch does nothing. Flash and verify the tune first.
Q: Which tuners support DSP5 switching on the LLY?
EFI Live is the standard DSP5 platform for the LB7/LLY. V2 and V3 AutoCal and FlashScan controllers support DSP5. Some SCT-based custom tunes also support DSP5 on the LLY — verify with your tune provider.
Q: How does the key lock work?
The switch has a physical lock — insert the key to unlock, rotate to the desired position, remove the key to lock. Without the key, the switch cannot be rotated. Lock it in Tow (position 1) or Valet mode when others drive.
Q: Can I install this switch myself?
Yes, if you’re comfortable with basic electrical work — stripping two wires and making a T-tap connection near the ECM. Total install time on the LLY is 40–60 minutes including dashboard access.
Q: Where does the switch mount?
The LLY DSP5 switch mounts in the dash — a factory switch blank, a custom dash pod, or below the radio. The included harness length reaches from a typical dash location to the ECM. Measure your routing path before finalizing.
Q: My cruise control cancel button stopped working after install. What happened?
You likely T-tapped the wrong wire or interrupted the cruise cancel circuit. The DSP5 harness should TAP the wire, not cut it. Verify the tap is a parallel connection and the original wire is intact end-to-end.
Q: Will this void my warranty?
Installing a tuning device may affect your factory warranty. Federal law (Magnuson-Moss Warranty Act) prohibits warranties from being voided solely due to the use of an aftermarket part unless it causes damage. Consult your dealer if you have concerns.
Q: Can I run the switch and an EGT probe simultaneously?
Yes. The cruise cancel wire (DSP5 signal) is separate from the EGT probe circuit (exhaust manifold or turbo pyrometer). No conflict.
Q: The switch clicks into each position but the tune doesn’t change. What’s wrong?
First: confirm a DSP5 tune is loaded. Second: verify the T-tap is on the correct cruise cancel wire (GM circuit 379, dark green). Third: check the harness connection at the ECM. If none fix it, test the DSP5 resistance at each position with a multimeter.
Q: What’s the difference between the ER-0303 and a generic DSP5 switch?
The ER-0303 provides DSP5-compatible wiring specific to the LLY, crisp detents in a rugged housing, and a physical key lock. Generic switches provide the same DSP5 function but with no lock, softer detents, and often bare-wire harnesses that require you to source your own connectors.
Final Verdict
For the 2004.5-2005 6.6L Chevy/GMC Duramax LLY, the TruckTok ER-0303 Key Lock DSP5 Switch ($69.99) is the right choice for any owner who lends their truck, uses valets, or simply doesn’t want a careless twist to crack a head gasket.
The key lock is the differentiator. Generic DSP5 switches do the same thing functionally, but they leave your tune one twist away from disaster every time someone else touches the dash. The ER-0303 locks it in safe Tow or Valet mode and hands over the key only when you choose.
If you have an EFI Live DSP5 tune configured for the LLY, order the ER-0303. Install it in 45 minutes, lock it when you lend the truck, and drive with confidence.
This guide is for off-road and competition use only. Installation of tuning devices may affect emissions compliance. Check all applicable local laws before purchase and installation.
