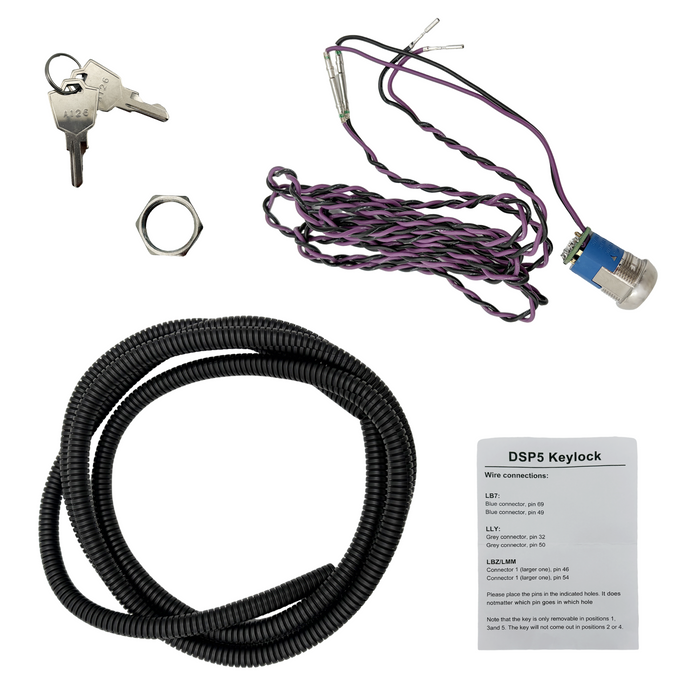

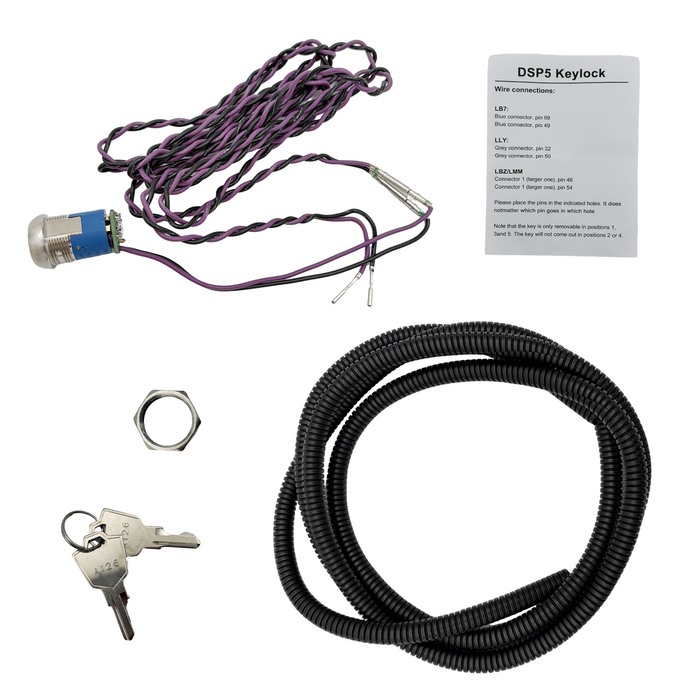

Trucktok 2004.5-2005 Chevy GMC Duramax LLY Key Lock SOTF Switch

FITMENT

• 2004.5–2005 6.6L Chevrolet Silverado & GMC Sierra Duramax LLY 2500 HD 3500 HD.

DESCRIPTION

Product Overview

• Take control of your truck's performance—and keep it secure. The TruckTok 5-Position Key Lock SOTF Switch is designed for 2004.5–2005 GM Duramax LLY trucks running multi-map custom tuning (such as EFILive or EZ LYNK).

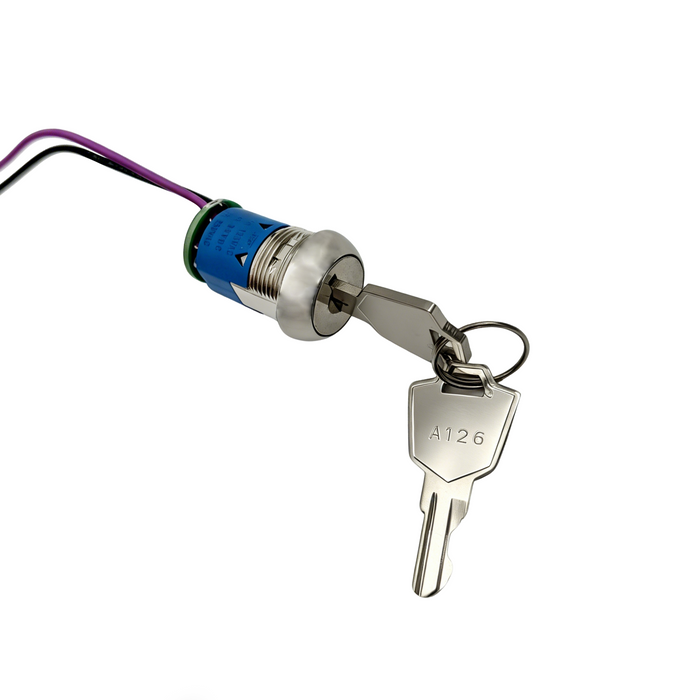

• While standard switches use a simple exposed knob, this premium version features a physical key lock mechanism. This allows you to select your preferred power level, pull out the key, and lock the truck into that specific mode.

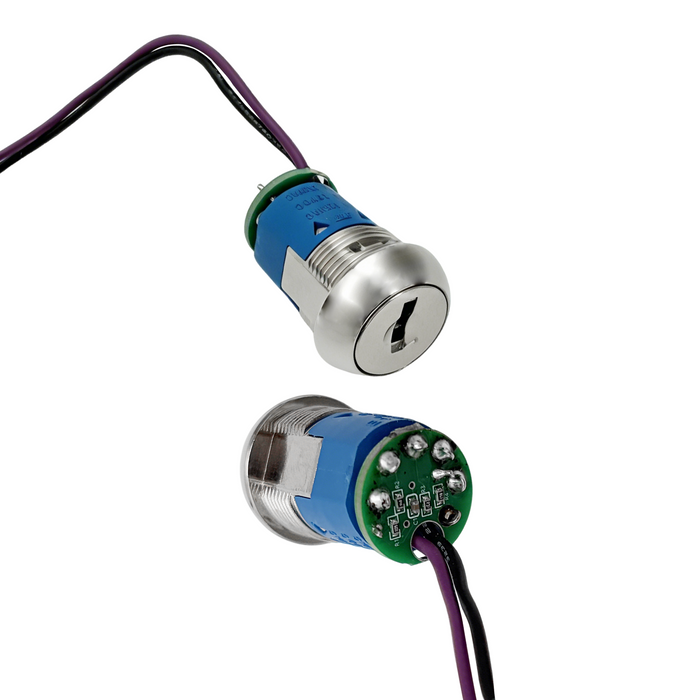

• Heavy-Duty Build: Features a high-durability metal lock cylinder and an anodized faceplate with numbered detents for an OEM-plus cab interior appearance.

• Valet & Family Lock: Select a mild tow or eco tune and remove the key to lock out high-power maps, preventing anyone else from abusing truck's drivetrain.
• Instant Shift-On-The-Fly: Toggle between 5 custom-tuned power maps (e.g., Stock, Economy, Tow, Street, Race) in under a second without shutting off the engine or pulling over to reflash.

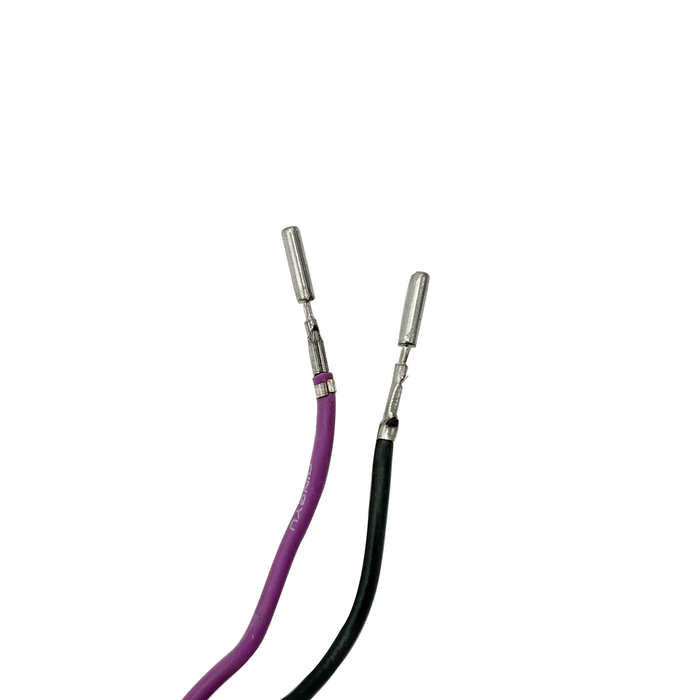

• Direct-Pin ECM Connection: Comes with pre-terminated pins designed to slide directly into your factory LLY ECM connector wiring harness—no messy wire-cutting, splicing, or soldering required.

FAQ

Q: Does the truck need to be running to change tunes with the key?

A: No, you can change positions on the fly while driving. As long as the key is inserted, you can turn it to switch maps instantly. Once selected, leave the key in or pull it out to lock that tune in place.

Q: How do I wire this switch into my LLY Duramax engine computer (ECM)?

A: Route the harness through the firewall grommet to the engine bay, then insert the wire pins into Pin 49 and Pin 69 of the gray ECM connector (always verify your tuner's instructions before final pinning).

Q: What happens if I lose both keys? Will my truck get stuck in one tune?

A: Yes, it remains locked in the last position set. The switch uses a resistor network, and removing the key mechanically locks the dial onto that exact voltage mapping. We highly recommend keeping the included second key at home as a spare.

Q: Can I use this LLY switch on an older 2003 LB7 or a newer 2006 LBZ Duramax?

A: No, Although the ECM pin numbers might sound similar across generations, the interior voltage parameters and ECM hardware configurations differ. Always match the switch specifically to your exact engine code.
