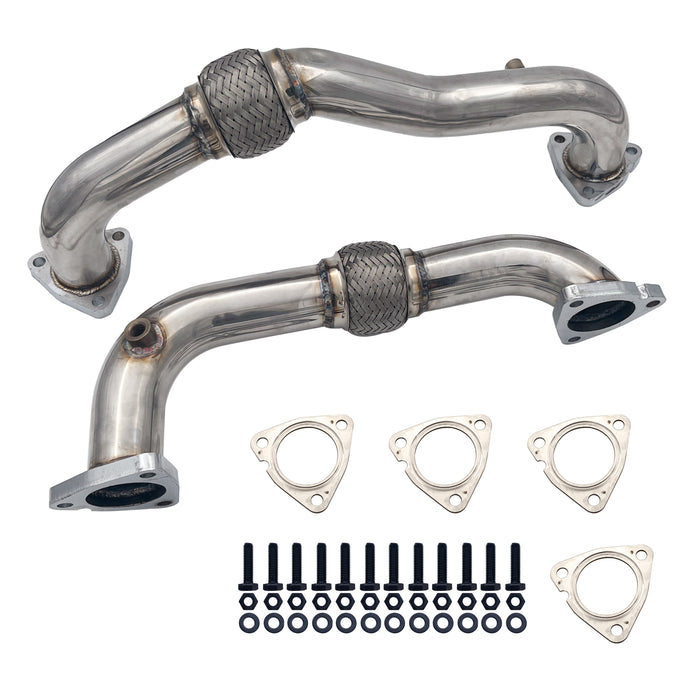

TruckTok 2008-2010 6.4L Ford Powerstork Exhaust Up Pipes & EGR Delete Plates Bypass
Brand TruckTok

TruckTok 2008-2010 6.4L Ford Powerstork Exhaust Up Pipes & EGR Delete Plates Bypass

SKU ER-0056
$252.99 - $252.99
$252.99
$252.99 - $252.99
$252.99

Free Shipping

Availability:
in stock, ready to be shipped

Installation Discussion & Community Support

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Request a quote

FITMENT

  • 2008-2010 6.4L Ford Powerstroke F250 F350 F450 F550 Super Duty V8 Diesel engine.
  • Compatible with both standard pickup configurations and Cab & Chassis commercial setups.

DESCRIPTION

Product Overview

  • The EGR cooler system and factory exhaust up-pipes on the 2008–2010 6.4L Ford are common failure points. OEM up-pipe flex joints can crack from extreme heat cycles, causing exhaust leaks, soot buildup, reduced turbo response, and higher EGTs.
  • Factory EGR coolers are also prone to internal failures that can lead to coolant leaks and reduced engine reliability. These issues make the EGR and exhaust systems key areas for improvement on the 6.4L Ford.
Key Features
  • CNC Machined Flanges: Engineered with heavy-duty flanges that resist warping and provide a airtight seal against the exhaust manifolds and turbo up-pipe connections.
  • Reinforced Braid Bellows: Heavy-duty T-304 SS up-pipes feature inner-interlocking braided flex bellows for superior resistance to heat-cycling and high EGTs.
  • Restores Turbo Boost & Spool Speed: Seals up-pipe leaks to deliver 100% of exhaust energy directly to the compound turbos.
  • Prevents EGR Cooler Leaks & White Smoke: Completely removes both factory EGR coolers, permanently stopping coolant loss and intake carbon contamination.

FAQ

Q: Why do 6.4L Powerstroke factory up-pipes fail so frequently?

A: The stock up-pipes use thin flex bellows that cannot withstand the high backpressure and thermal expansion created by the 6.4L’s compound turbo system. They inevitably crack, leaving soot streaks along the firewall and causing severe boost loss.

Q: Why should I install these aftermarket up-pipes while doing an EGR delete?

A: Replacing up-pipes requires working in tight spaces behind the firewall. Combining the EGR delete with up-pipe replacement eliminates duplicate labor costs and permanently resolves the two biggest exhaust failure points in one shot.

Q: How does a leaking up-pipe affect turbo performance?

A: A damaged up-pipe can allow exhaust energy to escape before reaching the turbocharger, reducing turbo spool speed and causing slower boost response.

Q: What are the benefits of upgrading to heavy-duty up-pipes?

A: The upgraded up-pipes feature stronger construction and reinforced flex joints to better withstand high exhaust temperatures and improve long-term durability compared with factory components.

Q: How does the EGR delete/bypass help the 6.4L Powerstroke?

A: The EGR bypass helps remove factory EGR cooler restrictions and reduces exhaust gas recirculation through the intake system, helping minimize soot buildup and improve airflow efficiency.

  • 5 stars: 9 (90%)
  • 4 stars: 1 (10%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
This product has no reviews of its own. The merchant grouped it with related products, so the reviews shown are from across that group.
C
Colt Prudhomme
Thicker flanges than the Motorcraft pipes

I compared these side by side with the Motorcraft replacement pipes. The TruckTok flange is about 50% thicker — 3/8 inch vs 1/4 inch on the Motorcraft. The weld at the flange is fully TIG-welded inside and out versus the Motorcraft MIG tack weld. The mandrel bend is smoother too — no inner diameter ripple. These are genuinely better than OEM at a lower price. The 6.4 community needs to know about these.

H
Hank Weatherby
2010 6.4 — check your manifold studs while you are in there

Pipes are flawless — 5-star fit and finish. However I had to knock a star because my 2010 had two broken exhaust manifold studs that were not visible until I pulled the old up-pipes. Not the kit's fault at all, but if you have a 6.4 with over 100K, budget for manifold stud repair while you are in there. Soak them all in penetrating oil the night before. The pipes themselves are excellent.

M
Matt Wilson (United States)
Great product!Thanks

Great product!Thanks

W
Waylon Hightower
No more soot streaks on the firewall blanket

2008 F-450 service truck. Had the classic 6.4 symptom — black soot streaks on the firewall insulation pad, lazy turbo spool, and a faint exhaust smell at idle. Passenger side up-pipe had a hairline crack at the bellows flex joint. Replaced both sides with this kit. The collector flange is machined flat and sealed first try. Boost is back to where it should be and the firewall is staying clean.

D
Dusty Prather
Did it cab-on — tight but doable

2009 F-250. The ideal way to do 6.4 up-pipes is cab-off, but I do not have a two-post lift. Did it cab-on with the truck on ramps. Passenger side pipe went in from the bottom, driver side from the top past the master cylinder. Took me about 6 hours with breaks. The pipes fit exactly as they should — zero prying. Key tip: remove the downpipe first for clearance. You will thank yourself.

S
Shane Sandoval (United States)

TruckTok 2008-2010 6.4L Ford Powerstroke Diesel Heavy Duty Exhaust Up-Pipe

R
Rusty Mabrey
Combined with EGR delete — did everything at once

2009 F-350 with 102K. Dropped the cab to do studs, EGR delete, and up-pipes all at once. Since the turbo was out, the up-pipes were right there. These pipes went in perfectly — the manifold flanges are thick stainless and the Y-collector junction is reinforced with a gusset. Everything torqued down without any binding. If you are already in the engine bay doing EGR or turbo work, do not skip the up-pipes. You will regret it later.

P
Peter Lunday (United States)

TruckTok 2008-2010 6.4L Ford Powerstroke Diesel Heavy Duty Exhaust Up-Pipe

C
Colt Weatherby
6.4L compounds run hot — these pipes handle it

The 6.4 Powerstroke uses compound turbos, and the factory up-pipes run extremely hot. Mine cracked at the bellows around 98K miles. These TruckTok pipes are 304 stainless with mandrel bends and no bellows to fail. The polished finish has held up to the heat cycles without blueing or discoloring. If you know the 6.4 platform you know the up-pipes are a ticking time bomb. Replace them before they strand you.

B
Beau Fontenot
6.4L eats stock pipes — buy once cry once

My 2010 F-350 is on its third set of up-pipes at 145K miles. Factory pipes failed at 62K, replacement Motorcraft pipes failed at 110K. The bellows design just does not survive on this engine. These TruckTok solid pipes are the permanent fix. 20K miles on them and the flanges are bone dry. No bellows, no flex joint, no future failure point. This is how Ford should have designed the pipes.
