FITMENT
- 2011-2015.5 6.6L Silverado & Sierra Duramax 2500HD/3500HD LML engine with a V-Band Clamp.
- Does NOT Fit 2015.5-2016 models equipped with the 3-bolt flange. Please check underneath your truck!
- Please physically inspect underneath your truck to verify your turbo discharge style before purchasing!
DESCRIPTION
Product Overview
- The 11-15.5 6.6L Duramax LML is an incredible workhorse, but it is notorious for being heavily strangled by its complex first-generation DEF/SCR and DPF/CAT emissions systems. As these trucks age, the factory DPF ceramic core plugs up permanently with non-burnable ash.
- This results in your truck entering endless Active Regeneration cycles, which forcefully dumps raw diesel into the exhaust stroke just to heat up the filter.
- Your fuel economy tanks to a miserable 13-14 MPG, your EGTs skyrocket, and the immense backpressure puts extreme fatigue on turbocharger, frequently dropping the truck into Limp Mode.
Key Features

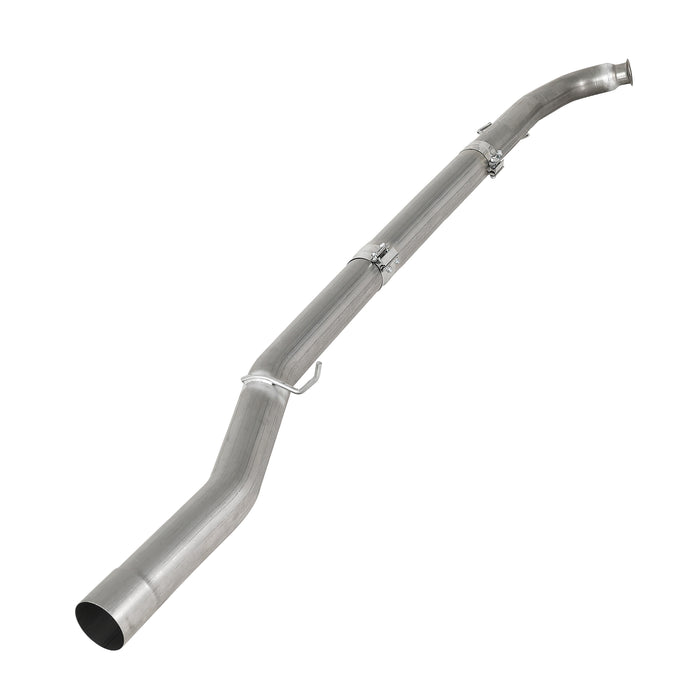

- Mandrel-Bent Flow: CNC mandrel-bent 4" T-409 SS tubing ensures smooth, high-velocity exhaust flow. unrestricted with No Bungs to interrupt the air path.
- Massive Fuel Mileage Gains: Eliminates the fuel-hungry active regeneration process. Most LML owners see fuel economy recover from a clogged 13 MPG up to a clean 18-19 combined MPG on the highway.
- Drastic EGT & Backpressure Relief: Allows hot exhaust gases to escape instantly right out of the downpipe. This reduces structural heat-soak and lowers EGTs, protecting your turbocharger under heavy towing loads.
- Retain Factory Muffler: Replaces only the choked emission center sections. By keeping stock rear tailpipe and muffler, truck maintains a near-stock sound profile—slightly deeper, but completely free of annoying highway cab drone.
FAQ
Q: Will this pipe fit my 2015 or 2016 Duramax LML?
A: If your truck is a 11-15.5 model equipped with a V-Band style clamp off the turbo downpipe, this pipe is a direct bolt-on fit. If truck is a 15.5-16 model with a 3-bolt flange connection, this pipe will not work. It also does not fit Cab & Chassis trucks.
Q: Will this kit fix my LML's EGR and intake sludge issues?
A: This pipe frees up your exhaust, but it won't stop oily PCV mist from mixing with dry EGR soot to clog your intake manifold with thick sludge. Pair this pipe with LML EGR Delete Kit and a CCV Reroute Kit for a complete, top-to-bottom reliability cure.
Q: Do I really need to replace my factory Turbo Downpipe?
A: While not mandatory, upgrading to our round 3" Turbo Downpipe is highly recommended. The pancaked factory pipe creates massive backpressure; replacing it quickens turbo spool, sharpens throttle response, and maximizes EGT reduction.
Q: Exactly which section of my truck's exhaust does this pipe replace?
A: This 4" straight pipe replaces that entire middle assembly (CAT+DPF+SCR). Once installed alongside delete tuning software, the entire DEF injection pump, tank heaters, and NOx sensors are fully deactivated, meaning truck stops using urea completely.
