ER-0214 2020-2022 Duramax L5P Can Bus Plugs

2020-2023 L5P Duramax Can Bus Plugs

Improve the performance of your motor!

0214.png__PID:49a1ded4-d943-475e-afd7-a02a1aa53f0f

How it Installation?

Installation instructions

0214 2.jpg__PID:66859709-6cd3-4057-8dad-7bae87e32d86

Step 1 :

Find the plug on the passenger side lower frame rail at the front of the truck and unplug it, then clip one of the black plugs provided in the kit onto the factory socket port.

Step 2 :

Find the second nitrogen oxygen sensor plug under the charging tube on the driver's side of the engine hood and disconnect it. Secure the black plug of the kit to the factory plug port, and also pop out the red label before removing the plug.

0214 4.jpg__PID:80574dad-7bae-47e3-ad86-c5ebdc8a49e1

0214 5.jpg__PID:87e32d86-c5eb-4c8a-89e1-bd892a642a03

Step 3 :

1.At the front of the truck, follow the driver's side frame guide rail, find the third plug and unplug it, then clip the largest black plug provided in the kit onto the factory socket port.

Step 4 :

2.The gray part of the T-shaped end of the largest black plug provided in the kit needs to be popped inward and fitted into the card slot.

0214 6.jpg__PID:dc8a49e1-bd89-4a64-aa03-74ce2c46e37a

0214 7.jpg__PID:2a642a03-74ce-4c46-a37a-9c1e332b162f

Step 5 :

Finally, connect the plug to the card slot of thefactory plug and pop back the red label.

Step 6 :

1.Install the bracket. The M10 bolt will be screwed into the support bolt. Secure the transmission dipstick to the bracket using 1/4-20 bolts, nuts, and washers.
2.The bracket will hold the coolant hose connector in place.

0092 6.jpg__PID:69d53a21-0439-4884-b4a8-7ec1a71ab9cd

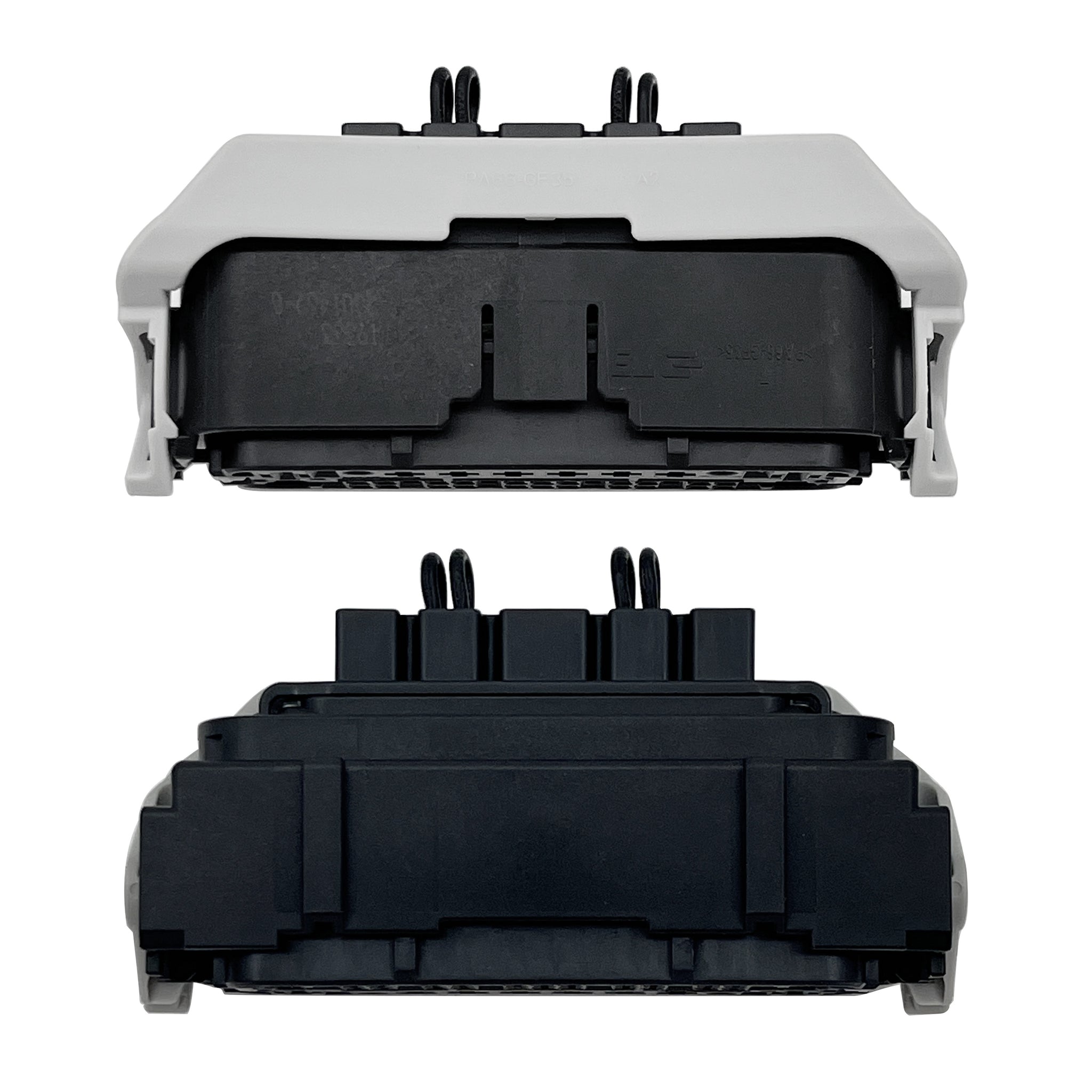

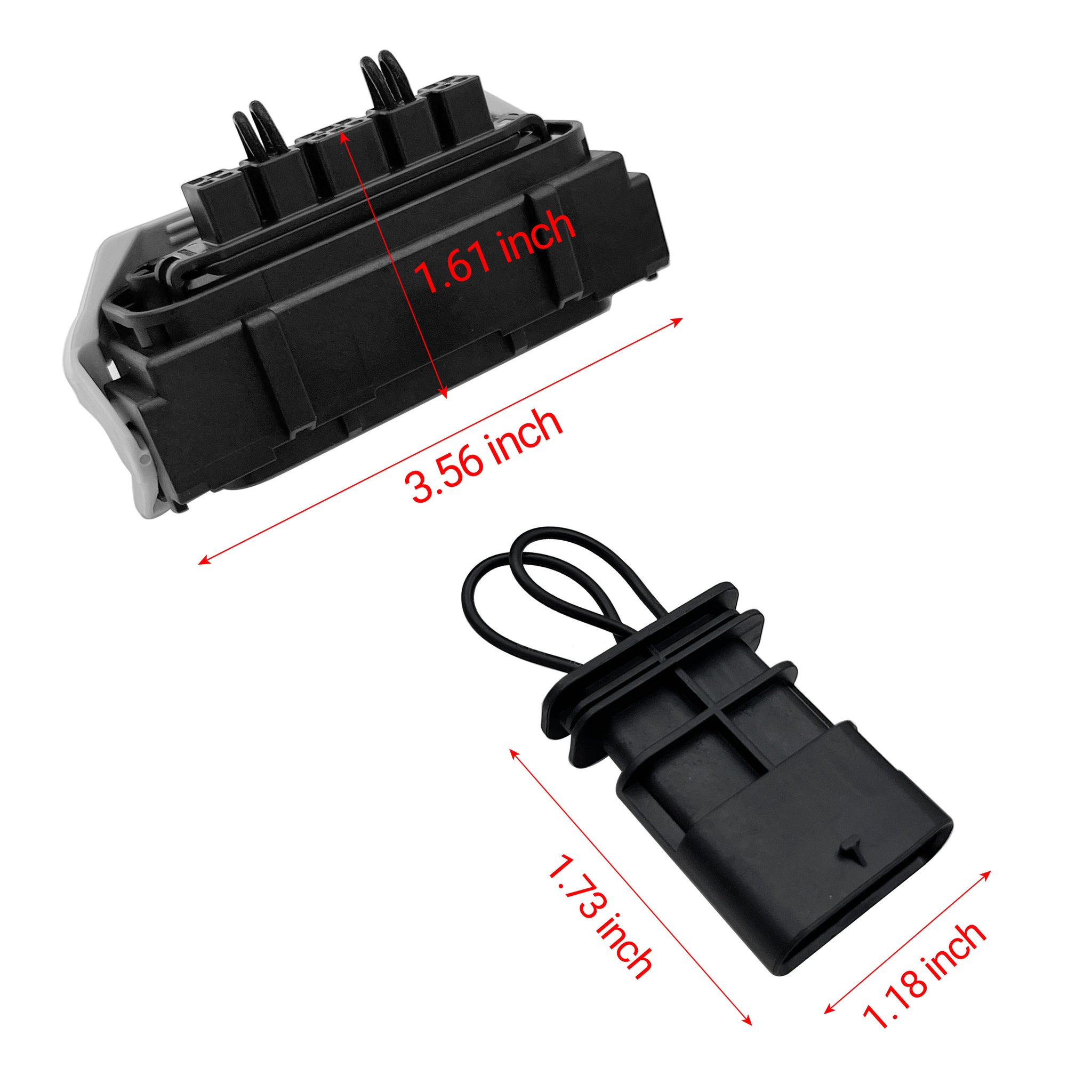

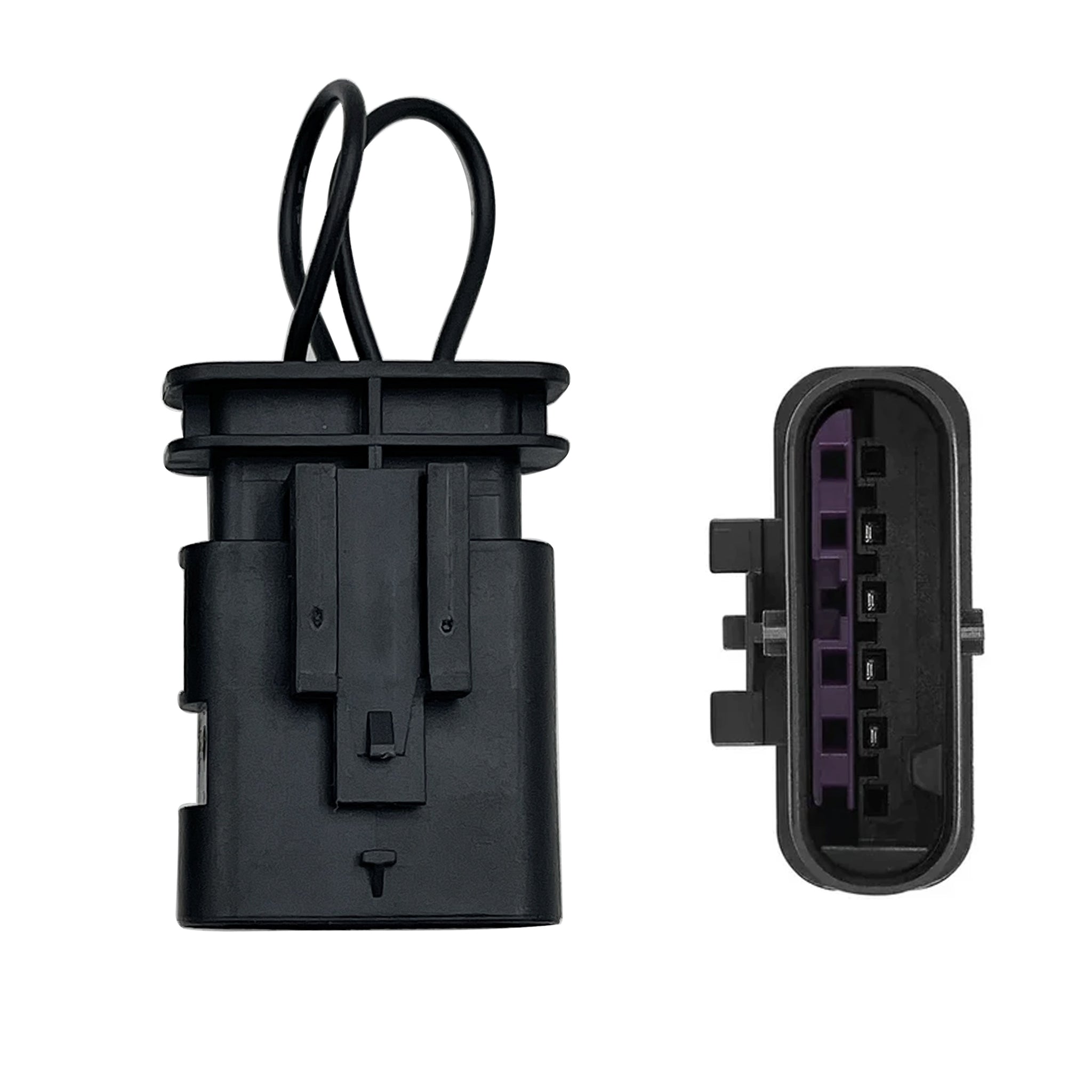

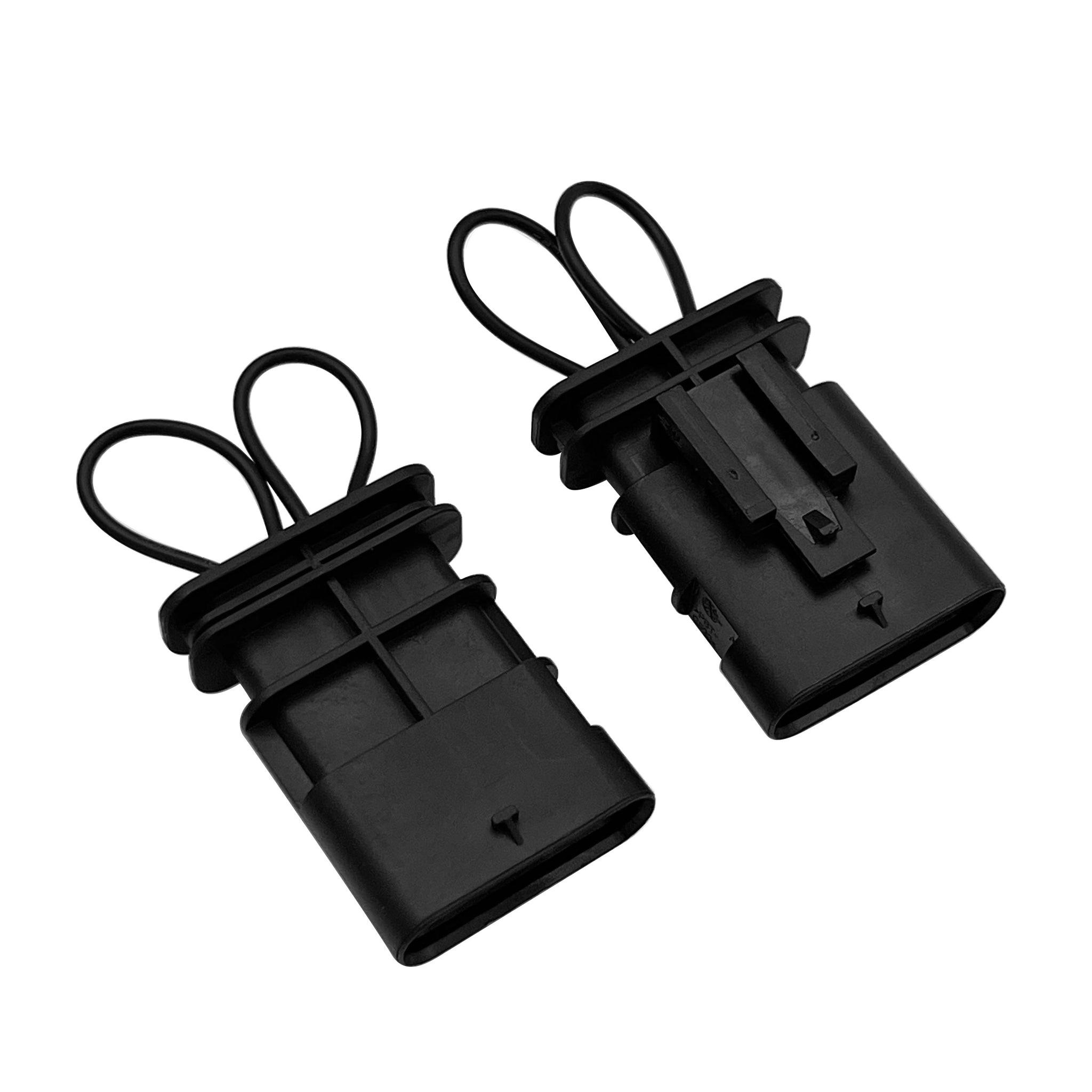

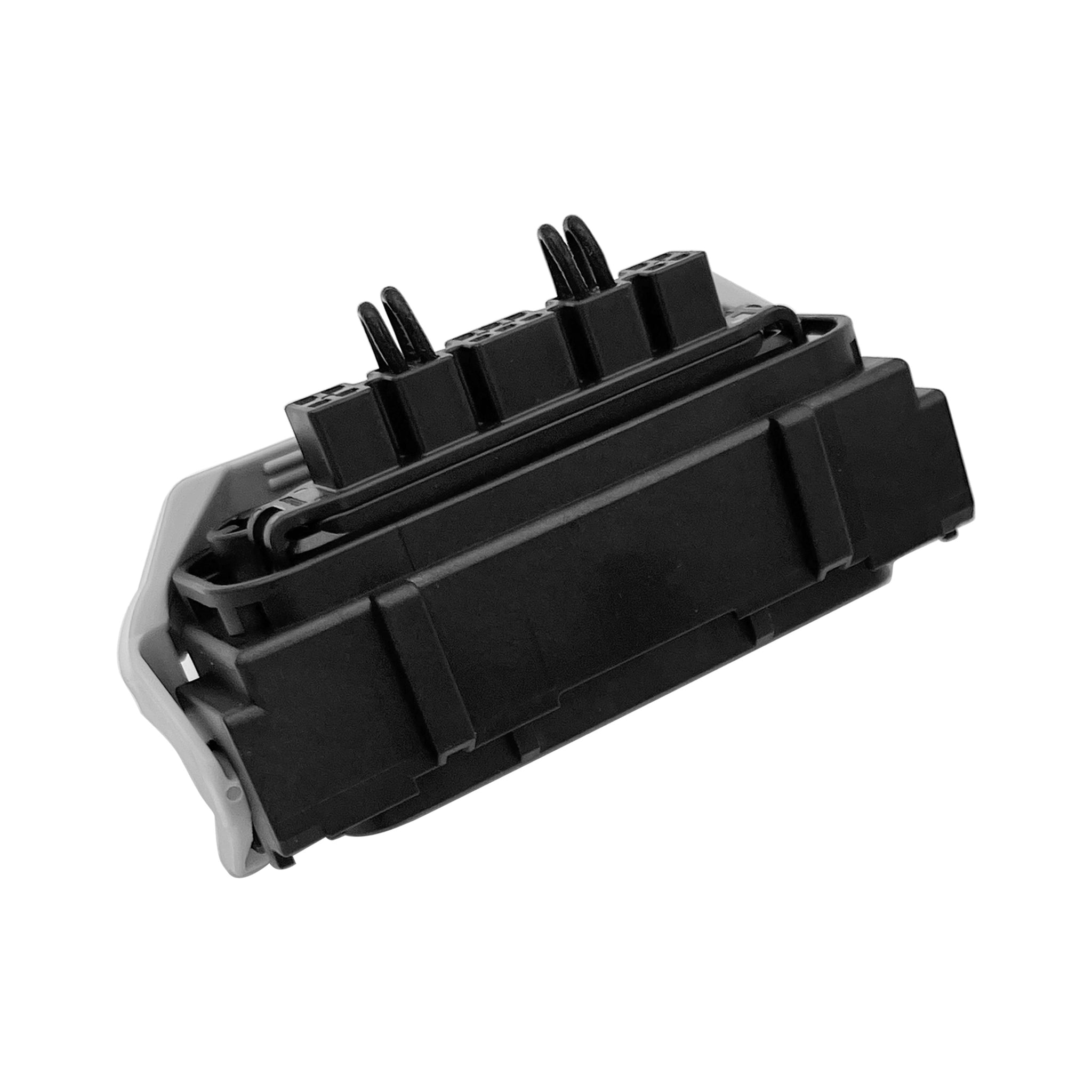

TruckTok 2020-2023 Chevy Duramax L5P Diesel Can Bus Plugs Connector

TruckTok 2020-2023 Chevy Duramax L5P Diesel Can Bus Plugs Connector

$79.99

FITMENT

2020–2023 Chevrolet Silverado / GMC Sierra Duramax L5P 2500HD & 3500HD Diesel.

DESCRIPTION

Product Overview

If you are upgrading your exhaust or performing a delete on a 20–23 model, removing the DPF, SCR, and DEF systems leaves critical electrical plugs unplugged beneath your truck.
Leaving these sensitive connections exposed to water, road salt, and mud will short-circuit your vehicle’s Controller Area Network (CAN Bus) and trigger immediate limp mode.

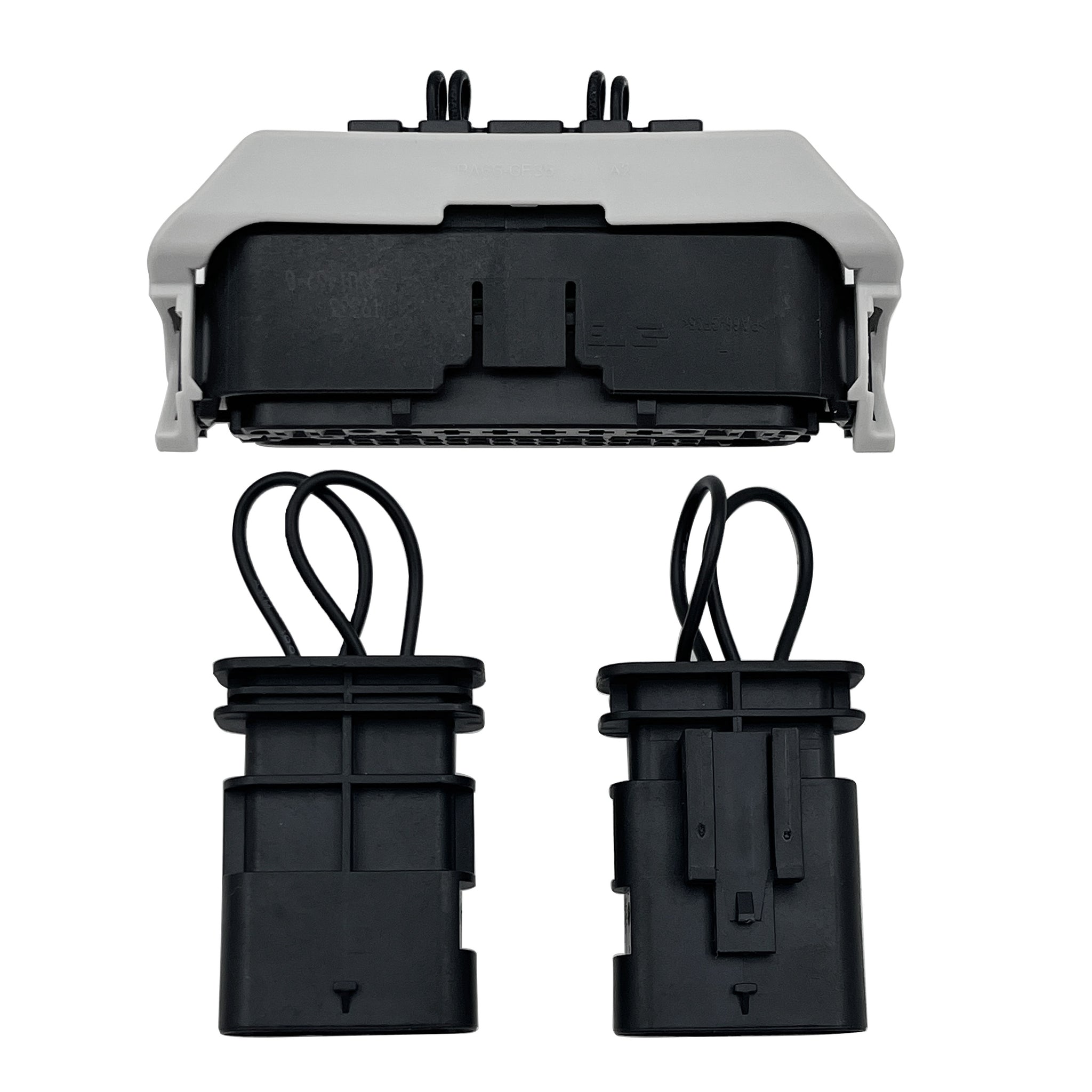

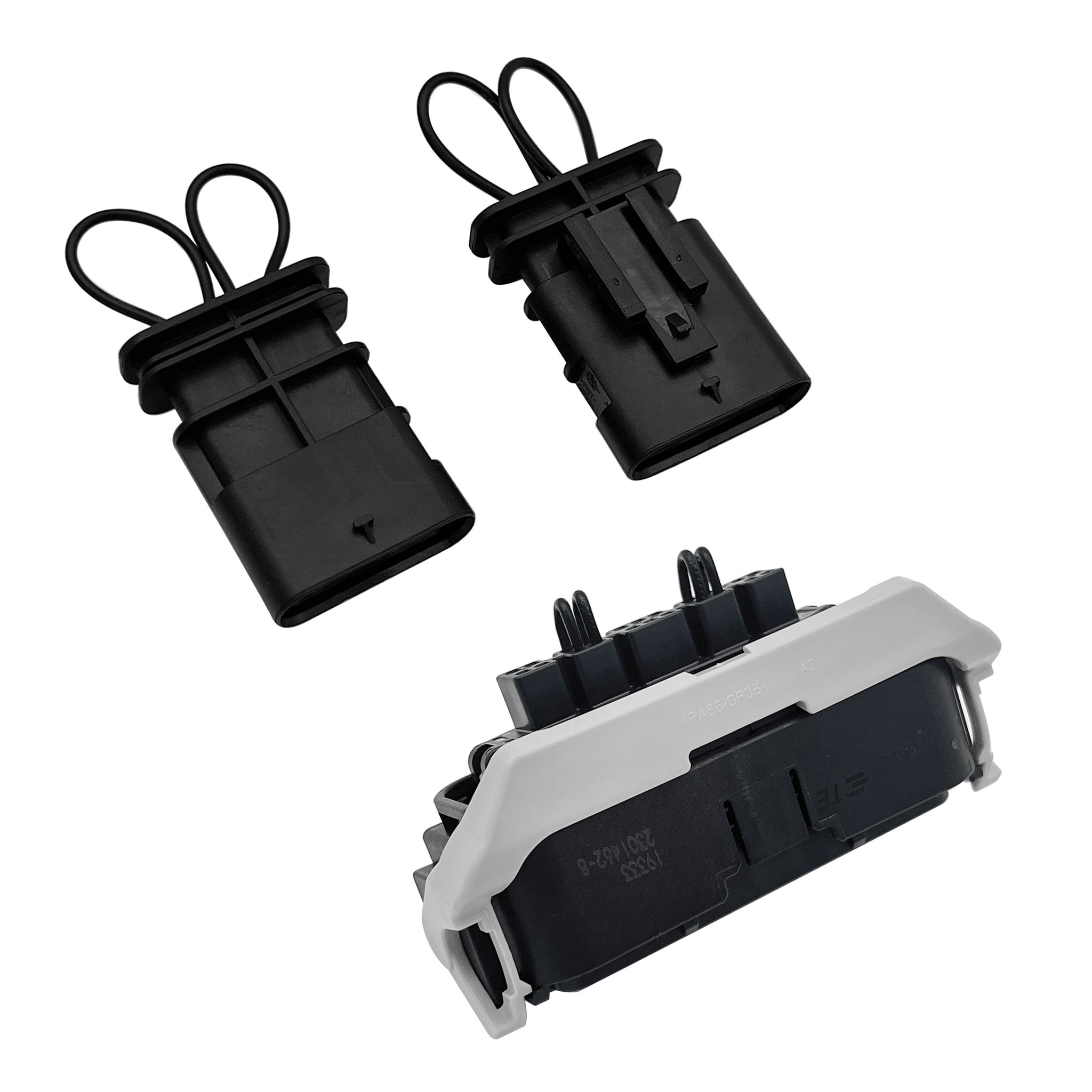

This 4-piece plug-and-play set caps off the open factory harness connectors and loops the communication signals, keeping truck's network running flawlessly and protected from the elements.

Key Features

OEM-Grade Weatherproof Seal: Built with high-temperature automotive-grade plastic and premium rubber seals to guarantee a vibration-proof, waterproof fit.
Shields Redesigned Connectors: Specially molded to fit the updated 20-23 GM plug shapes, blocking out water, road salt, and debris.
Completes the CAN Bus Loop: Pre-wired internal loops keep communication channels active between vital onboard modules, preventing communication fault codes (U-codes).
Plug-and-Play: Requires no wire slicing, cutting, or custom pin-swapping. They snap directly into your truck's factory harness in minutes.

FAQ

Q: What happens if I leave the factory connectors open without this kit?

A: You risk immediate corrosion and CAN Bus failure.Moisture and road grime will bridge the exposed pins inside the open harness. This causes electrical shorts that disrupt communication between your ECM and other vital modules, leading to dashboard error codes and limp mode.

Q: Why does a 2020–2023 L5P need these plugs after an exhaust upgrade?

A: Removing factory emissions equipment leaves open harness plugs under your truck. This kit caps those ports to keep out water and dirt while completing the CAN Bus circuit for normal module communication.

Q: Are these plugs durable enough to handle harsh winter road salt and off-roading?

A: Yes. Made from heat-stabilized, automotive-grade polymer with internal rubber gaskets, they create a waterproof seal that completely blocks out mud, pressure washers, and corrosive winter road salt.

Q: What is included in this "All-In-One" kit, and why buy it as a bundle?

A: This bundle includes the EGR delete, CCV reroute, DPF delete pipe, 3.5" downpipe, and CAN Bus plugs. Bundling guarantees compatibility, saves money over buying parts separately, and cuts labor costs by letting your mechanic install everything at once.
