How it Installation?

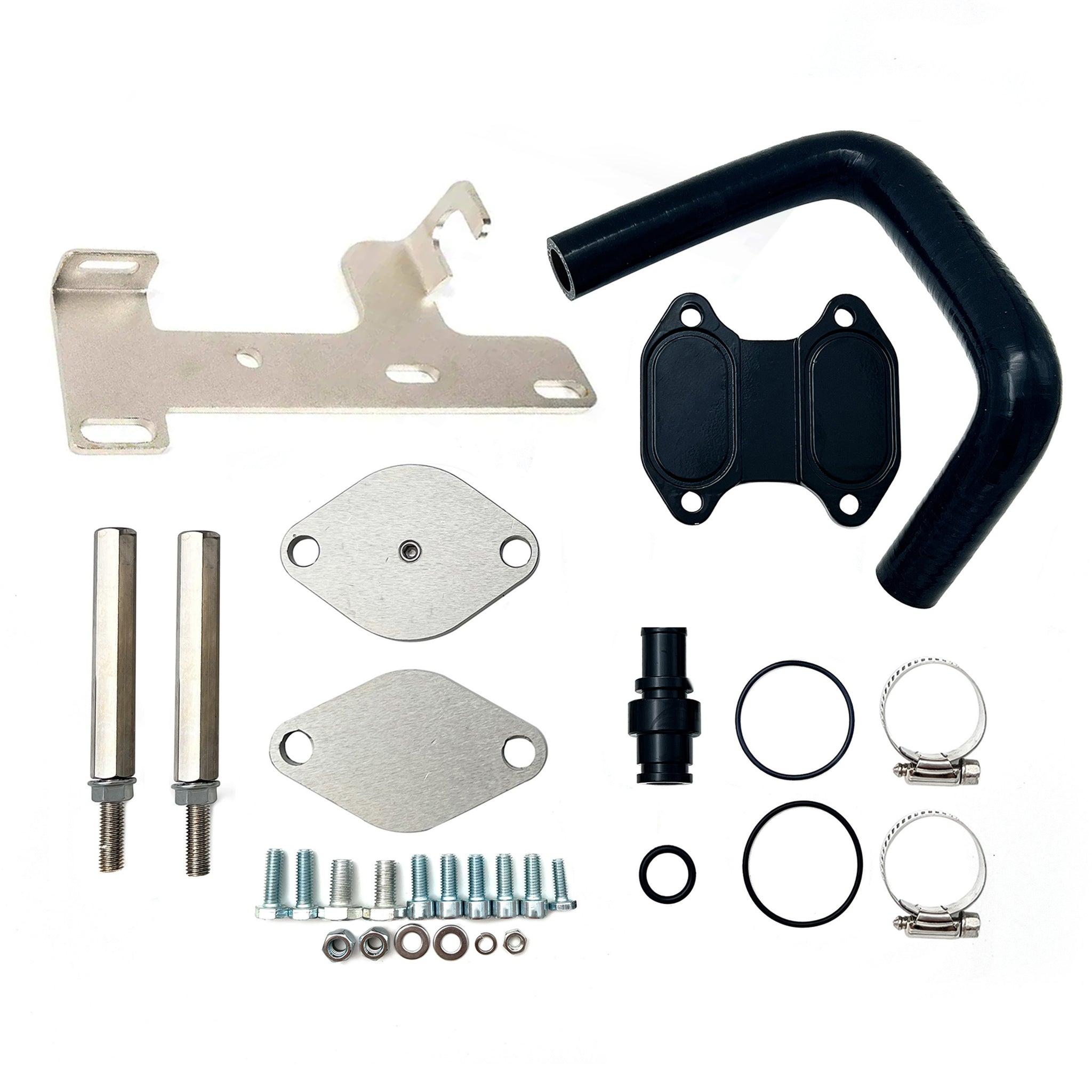

Installation instructions
Step 1 :
Disconnect the sensor plug. removed the EGR crossover pipe and the electrical connector on the EGR valve.Remove the EGR valve,Remove all existing gaskets and materials from the installation surface of the intake elbow.
Step 2 :

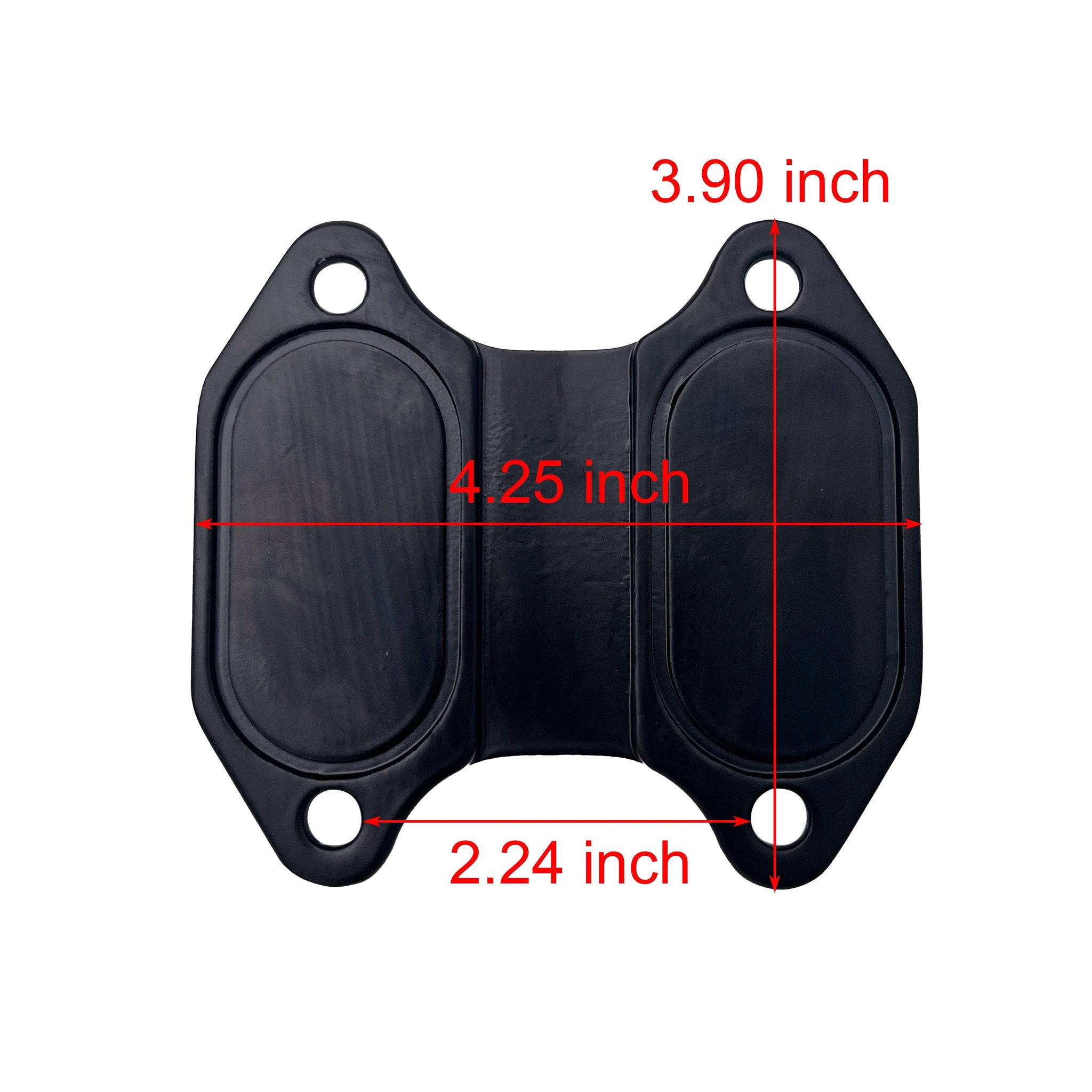

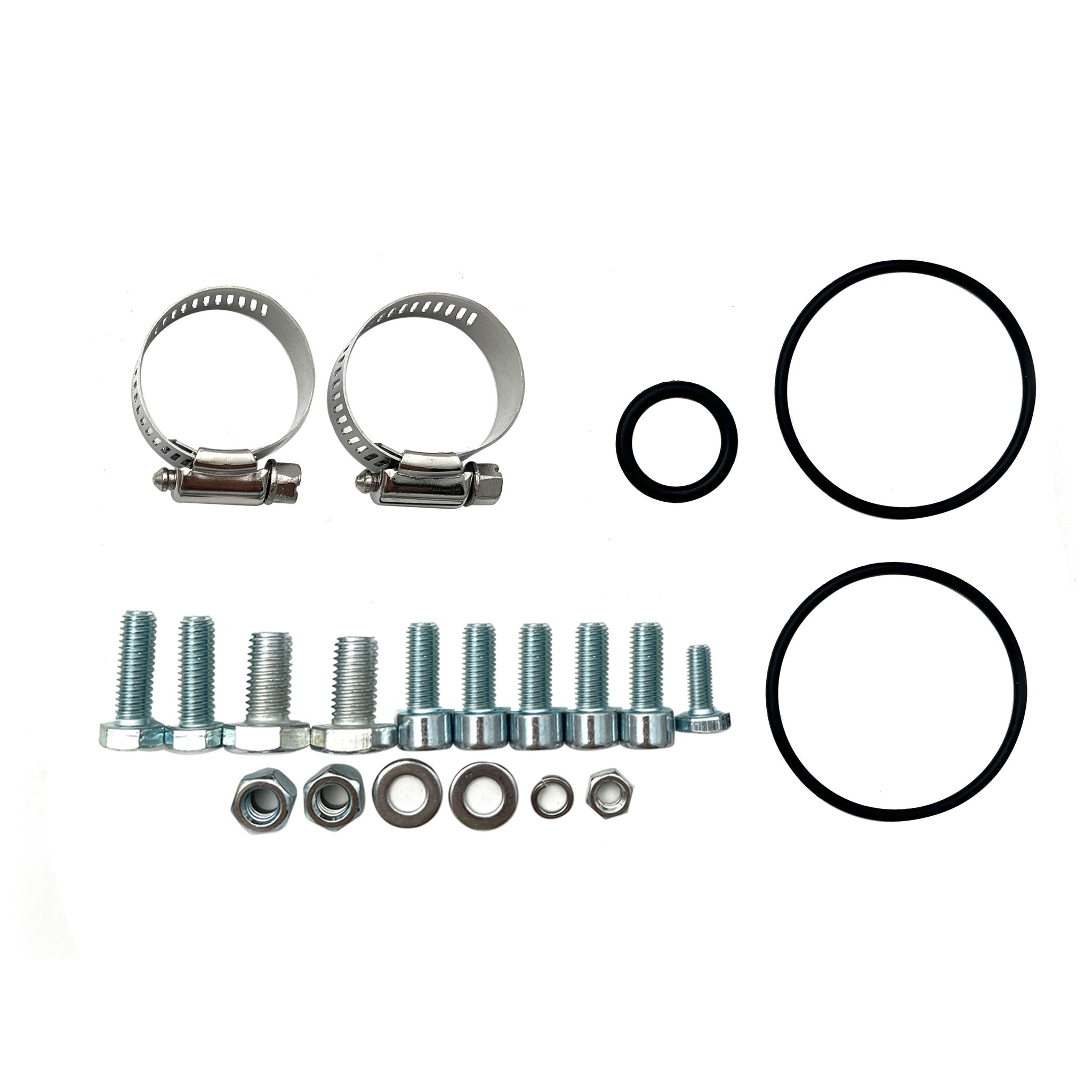

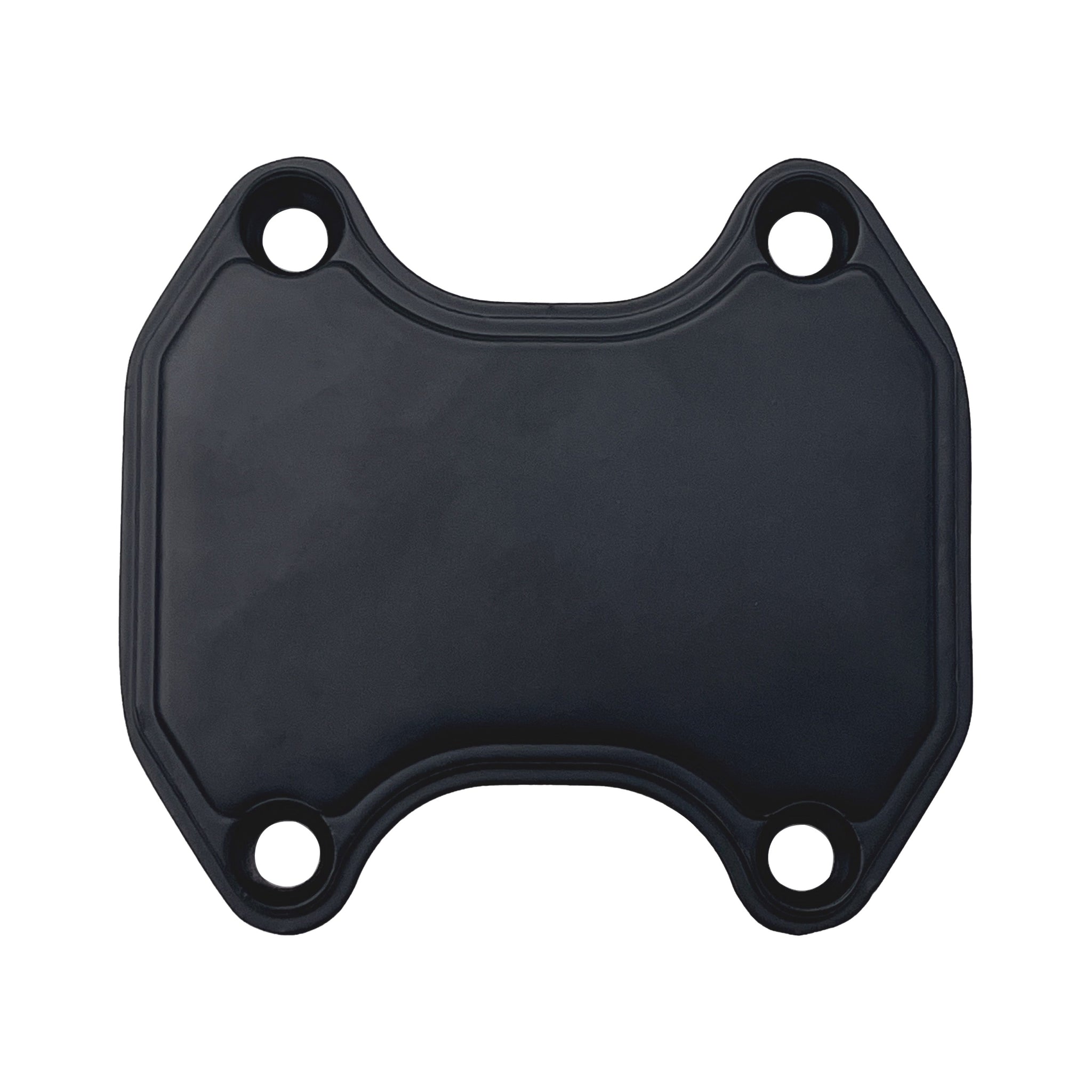

Install the intake block with the provided bolts. Ensure that both O-rings are fully seated.Remove the heat shield from the EGR bypass valve. The exhaust bypass will be removed together with EGR servo.Remove the crankcase breather tube that runs over the EGR cooler.
Step 3 :

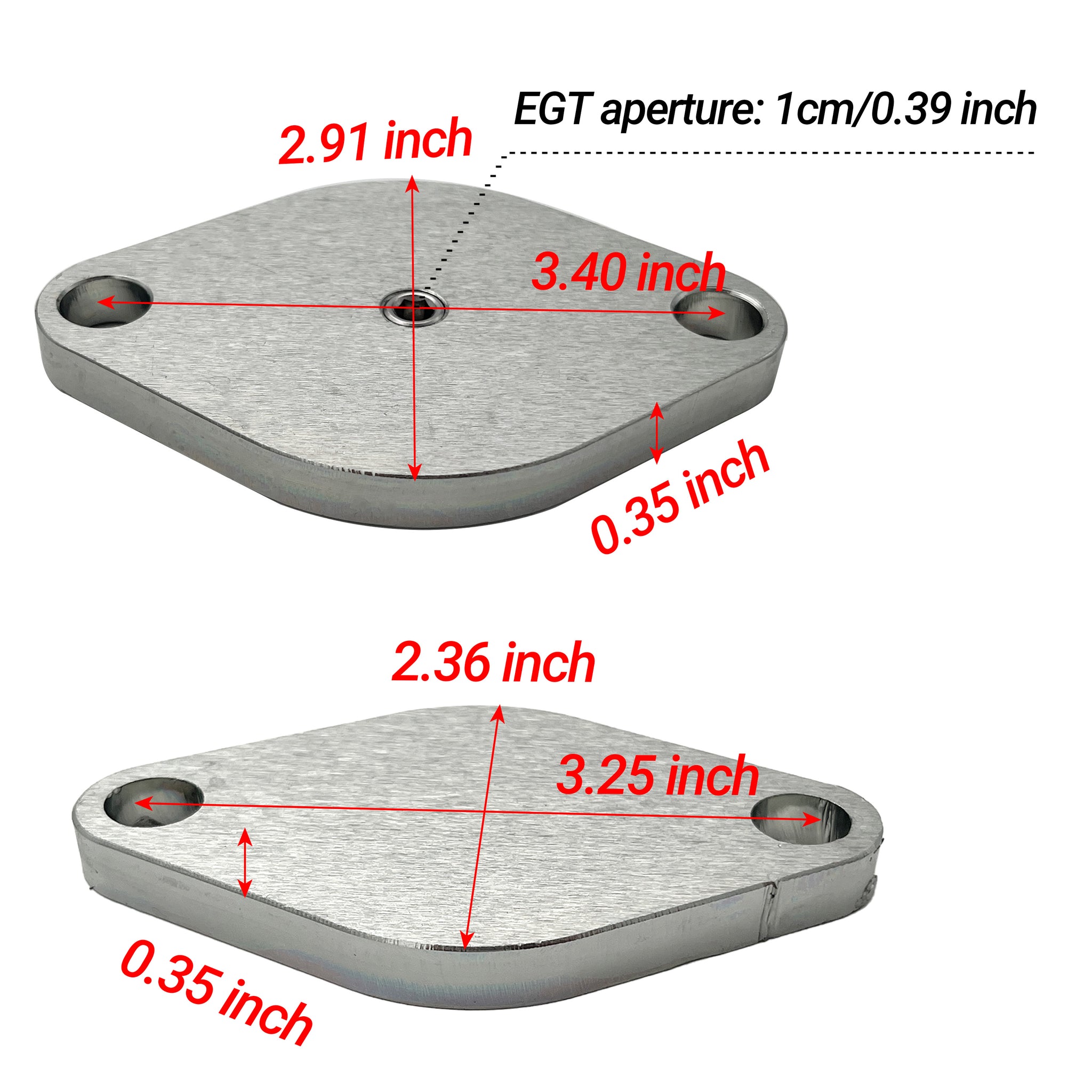

Remove the exhaust cross bend fixed in place by two 15mm nuts. Install the small exhaust block plate.(*The block o that is not pre-drilled will be installed in place of the exhaust crossover elbow.)
Step 4 :

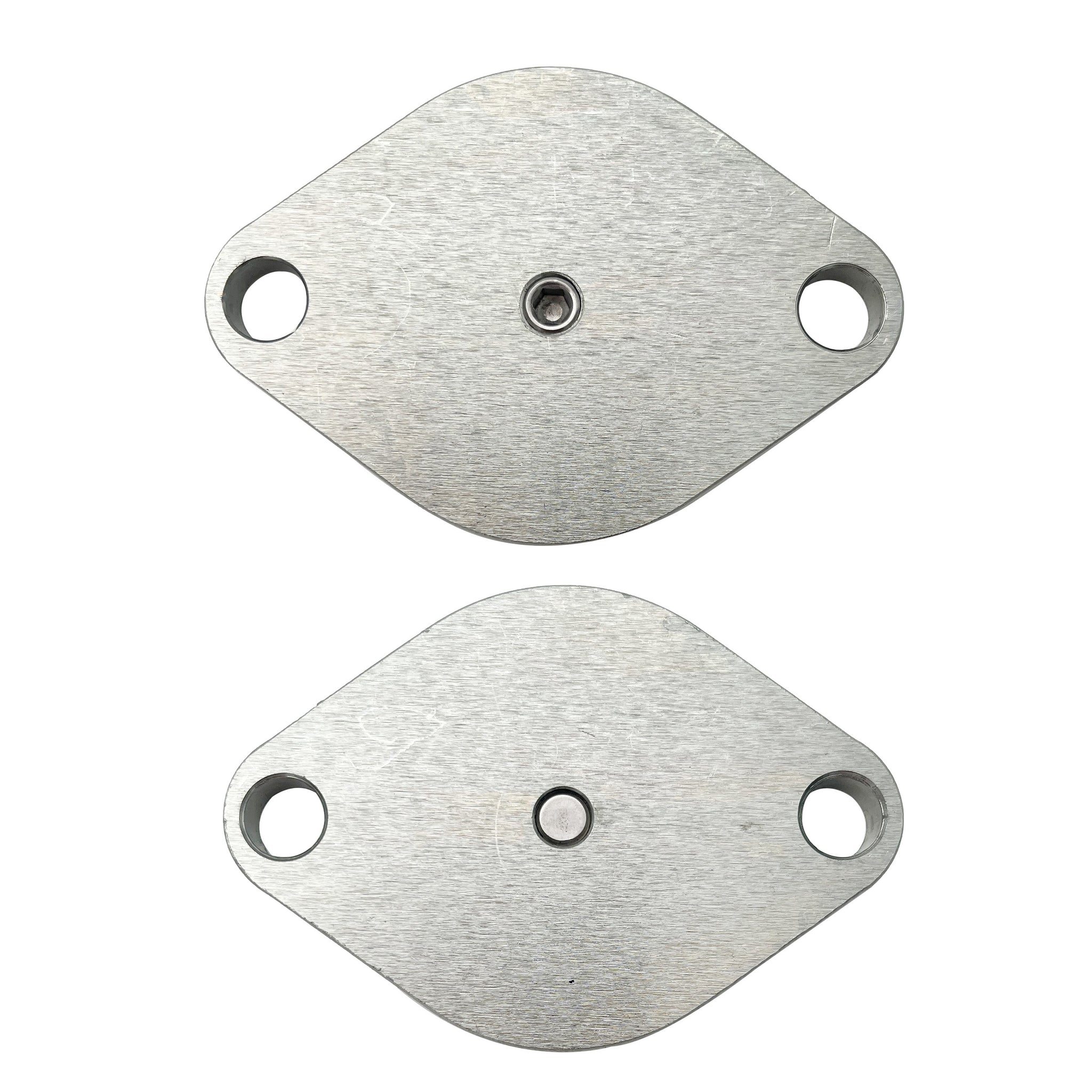

1.Install the other exhaust block off plate, reusing the factory hardware. The block off with the pre-drilled port will be installed on the back side of the exhaust manifold.
2.Re-install the crankcase breather tube.
Step 5 :

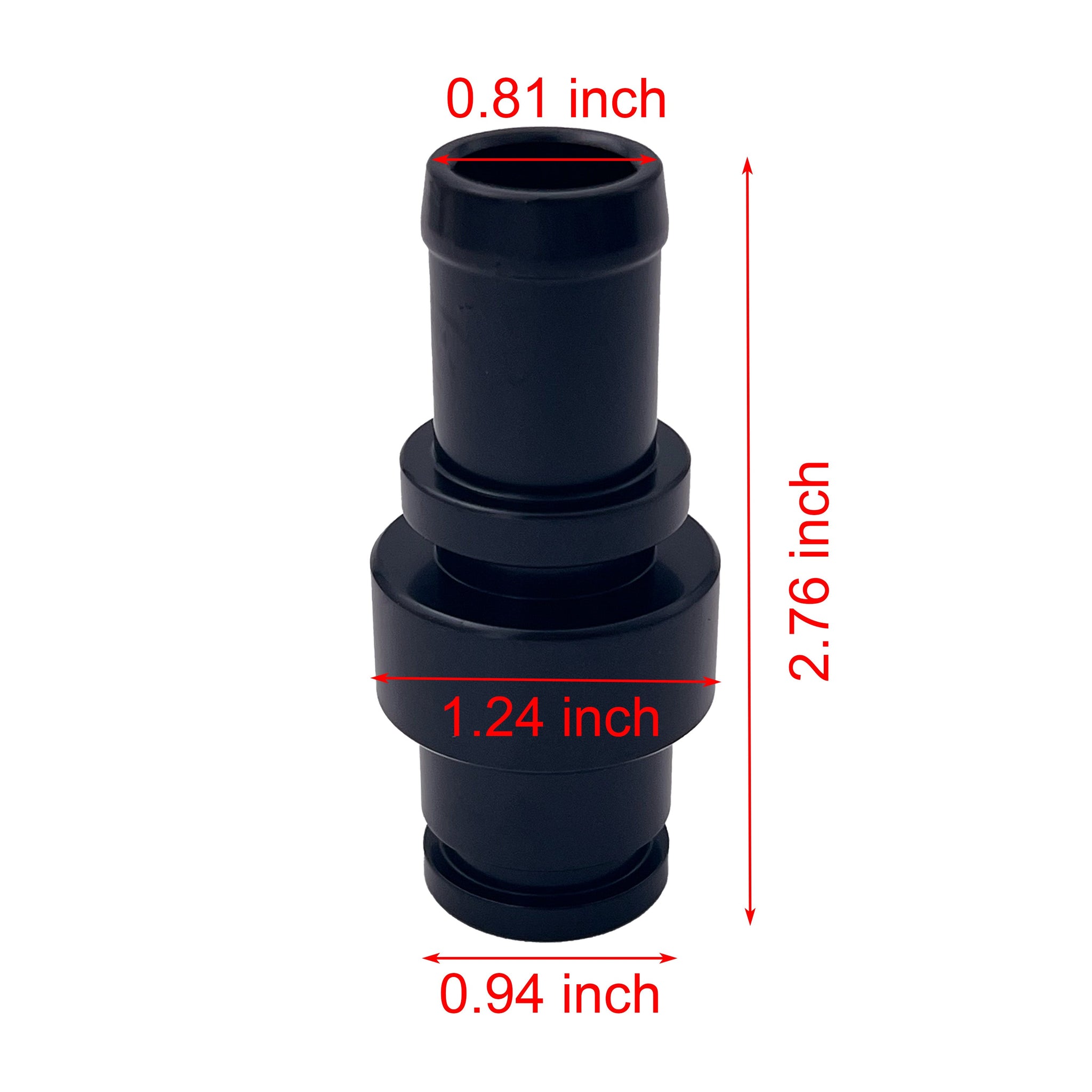

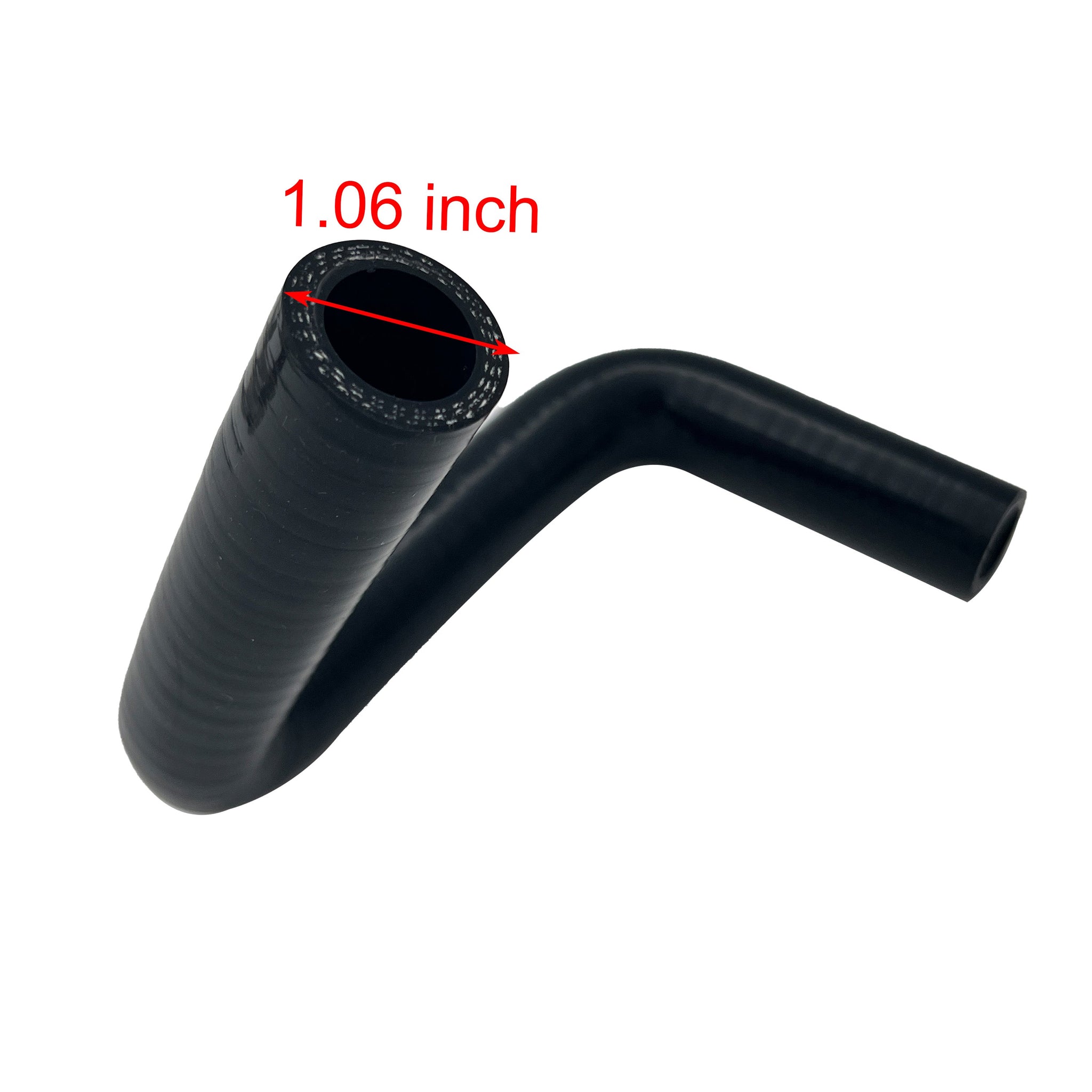

1.Use the newly provided coolant hose and hose adapter to connect the two coolant ports previously connected to the EGR cooler. Secure the hose with the provided hose clamp.
2.Replace the manifold bolts with the provided vertical bolts.
Step 6 :

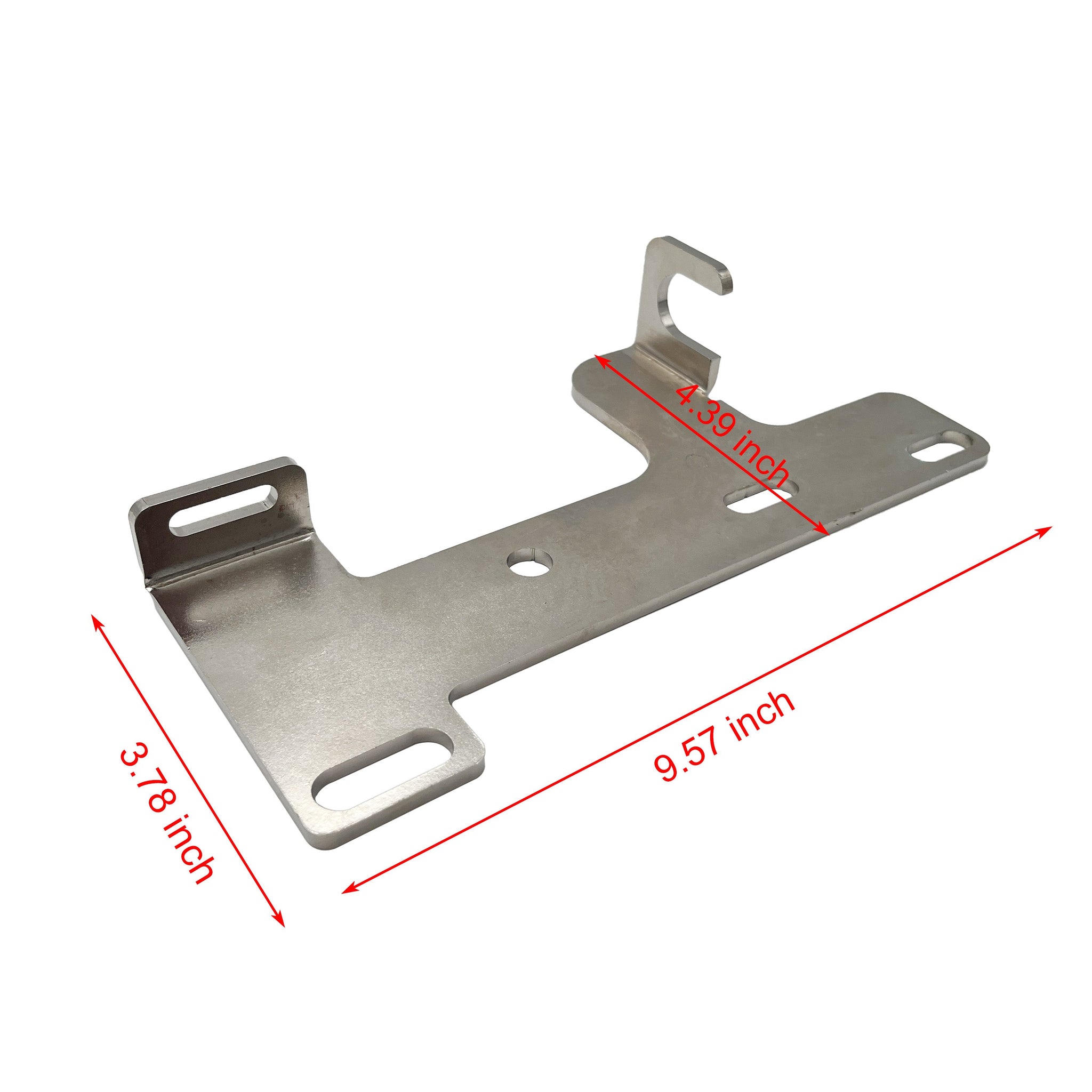

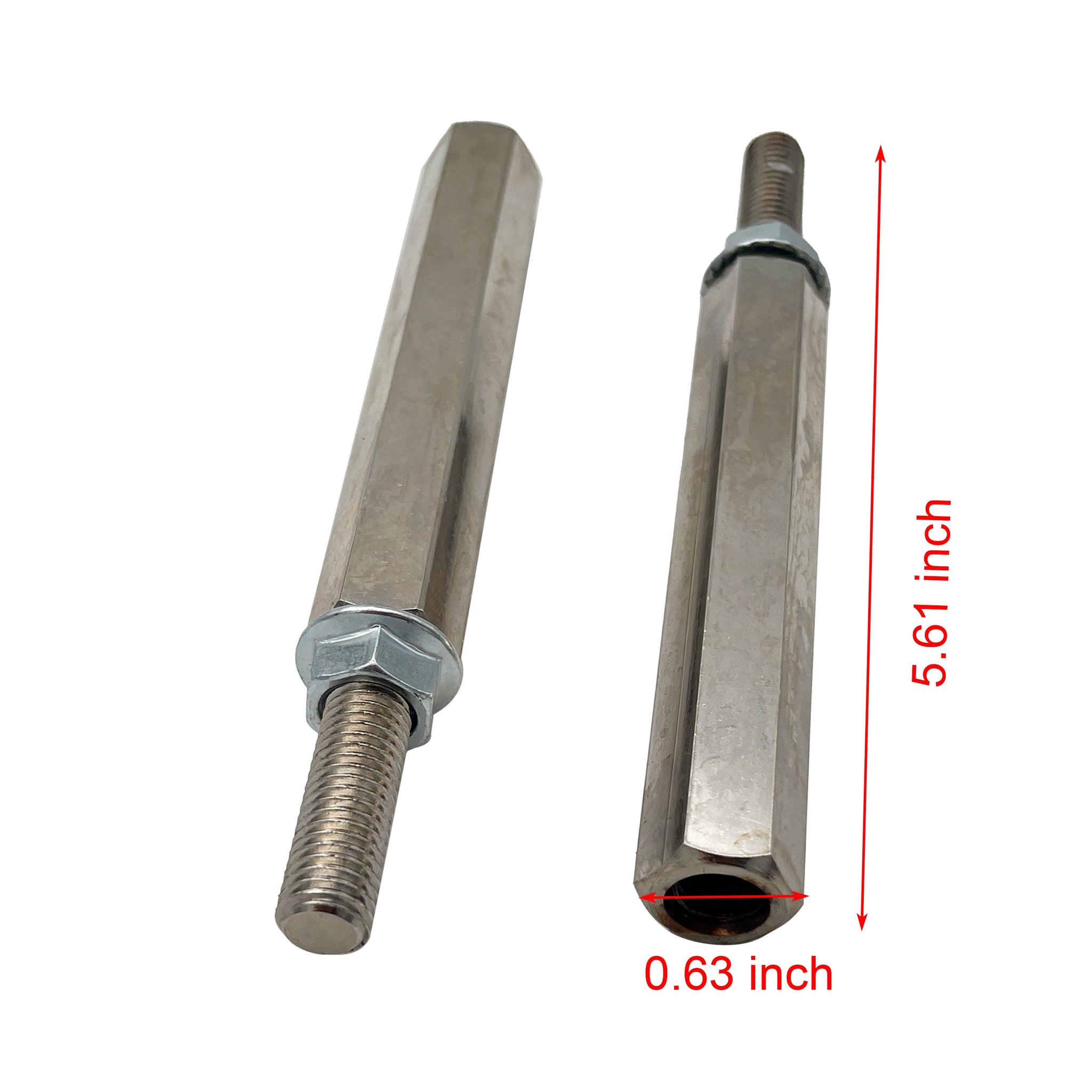

1.Install the bracket. The M10 bolt will be screwed into the support bolt. Secure the transmission dipstick to the bracket using 1/4-20 bolts, nuts, and washers.
2.The bracket will hold the coolant hose connector in place.
