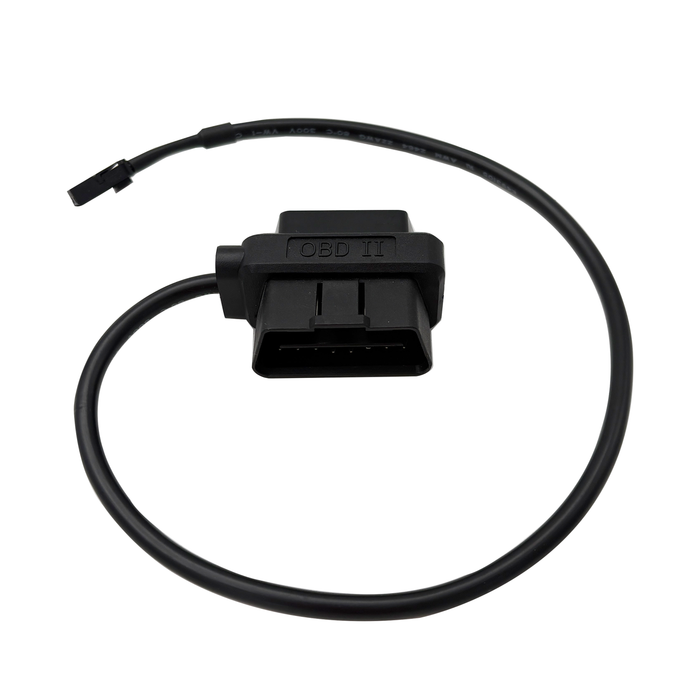

Tucktok 2018-2023 Ram Cummins Pickup Cummins SGW Security Gateway PassThru Harness Bypass
Brand TruckTok

Tucktok 2018-2023 Ram Cummins Pickup Cummins SGW Security Gateway PassThru Harness Bypass

SKU ER-0293
$49.99 - $49.99
$49.99
$49.99 - $49.99
$49.99

Free Shipping

Availability:
in stock, ready to be shipped

Installation Discussion & Community Support

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Request a quote

FITMENT

  • 2018-2023 6.7L Ram Cummins 2500 3500 Turbo Diesel.
  • Fits Ram Pickup models equipped with the factory Security Gateway Module (SGW).
  • Note: Please verify your truck’s year, model, and OBD2/SGW configuration before ordering.

DESCRIPTION

Product Overview

  • Starting with many 2018+ Ram trucks, FCA introduced a SGW that limits unauthorized access to vehicle communication networks. While factory scan tools can still access basic vehicle information, some aftermarket diagnostic, programming, and customization functions may be restricted.
  • The SGW Security Gateway Bypass Harness provides a direct connection solution for compatible aftermarket tools by bypassing the factory communication restriction. It allows supported diagnostic, programming, and accessory configuration functions without modifying the factory ECM hardware.

Key Features

  • Durable Automotive Construction: Built with heat-resistant wiring protection and high-impact connectors for reliable performance in harsh vehicle environments.
  • Maintains OBD2 Diagnostic Access: Supports code reading/clearing, live data monitoring, and advanced diagnostics through compatible OBD2 tools.
  • Unlocks FCA Security Gateway: Access Bypasses factory communication restrictions, allowing compatible diagnostic and tuning tools to access supported vehicle functions.
  • Supports Aftermarket Programming Features: Enables supported vehicle configuration changes such as tire size adjustments, gear ratio settings, remote start setup, and accessory installations.

FAQ

Q: What does an SGW bypass harness do?

A: The SGW bypass harness bypasses the factory Security Gateway communication restriction, allowing compatible aftermarket diagnostic and programming tools to communicate with supported vehicle modules.

Q: Why do I need an SGW bypass on my 2018+ Ram?

A: The factory SGW module limits certain aftermarket tool functions. A bypass harness allows supported tools to access vehicle modules for diagnostics, programming, and configuration changes.

Q: Will this allow me to flash custom tunes?

A: It allows compatible tuning tools to communicate with supported vehicle systems. Actual tuning capability depends on your tuner, software, and available calibration files.

Q: Is this required for EZ LYNK, EFILive, MM3, or AlfaOBD?

A: Yes. Starting in 2018, Ram SGW acts as a digital firewall that blocks write commands; without this bypass harness, devices like EZ LYNK, EFILive, MM3, and AlfaOBD cannot flash custom tunes or modify vehicle settings.

  • 5 stars: 3 (60%)
  • 4 stars: 1 (20%)
  • 3 stars: 1 (20%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
R
Rusty Boudreaux
2023 Ram — works on the newest model year too

2023 Ram 2500 with the digital dash. I was worried the passthru setup might interfere with the Uconnect 5 system or the digital cluster. No issues at all. The harness keeps the factory CAN bus fully intact so all your electronics work normally. The tuner connection is always accessible but invisible once you put the trim back. This is the right way to do a bypass — not a temporary cable, a permanent harness.

S
Shane Fuller (United States)
Great customer service

Bypass worked as it should once I found the correct blocks and I did that thanks to the awesome customer service these guys provided!

J
Joseph Wright (United States)
Great service

Company has great customer service. Helped with my issue even though it was my screw up. I will definitely order from them again.

D
Dusty Prather
No more climbing behind the radio every flash

2021 Ram 3500. I was using a standard bypass cable and had to pull the radio bezel every time I wanted to flash a tune or do a diagnostic check. With this passthru harness, I installed it once behind the panel, tucked the OBD-II extension neatly, and now I can plug in any time without touching the dash. The wiring is plug-and-play — green 12-pin to one side, green 8-pin to the other, and the bypass leg to the tuner port.

C
Colt Weatherby
Leave it installed — no swapping cables every time

2019 Ram 2500. Unlike the basic SGW bypass cable that you have to unplug every time you finish tuning, this passthru harness stays installed permanently. It splits the CAN bus signal so both the security gateway and your tuner can coexist. I keep my EZ Lynk plugged in full-time now and my factory remote start and Uconnect still work normally. The harness is well-made with factory-style connectors that click in solidly.

D
Douglas

A little confused between the item (ER-0293) picture and the reviews mentioning the green 12 pin & 8 pin connectors- which I am familiar with on other bypass cables. Does this item eliminate the need for the green connectors, or are these included but not pictured? Vehicle is 2022 Ram 3500 Cummins.

TruckTok

The product mentioned in the comment is actually another one. But this product is compatible with: 2018-2023 6.7L Ram Cummins 2500 3500 Turbo Diesel.

M
Mark

On the 2020 ram 2500, do I plug the gateway bypass connector into the 5th slot on the green can bus board?

TruckTok

Hi,In fact, you can plug the connector into any open slot on that green block. All ports on the green junction block share the same CAN-C bus network, so any available position will function identically.
