ER-0282 2009-2024 6.7L Ram Ez-lynk/ccv soft switch

2010+ Dodge Ram Cummins EZ-Lynk/CCV SOTF Switch

Improve the performance of your motor!

0288-1.png__PID:b11a96b2-123b-4e07-a156-5b2331df2d79

How it Installation?

Installation instructions

0288 2.jpg__PID:2e09fb5f-b1c1-430a-818d-133b61ce2f40

Step 1 :

Find a rubber ring inside the cab and insert your three wires into the engine compartment. Cut a slit on the rubber ring with a blade, and then pass a 5-foot-long metal wire through the firewall all the way to the interior of the cab. Use electrical tape - tie the red, yellow and black wires to a 5-foot-long metal wire and pass three wires through a rubber ring.

Step 2 :

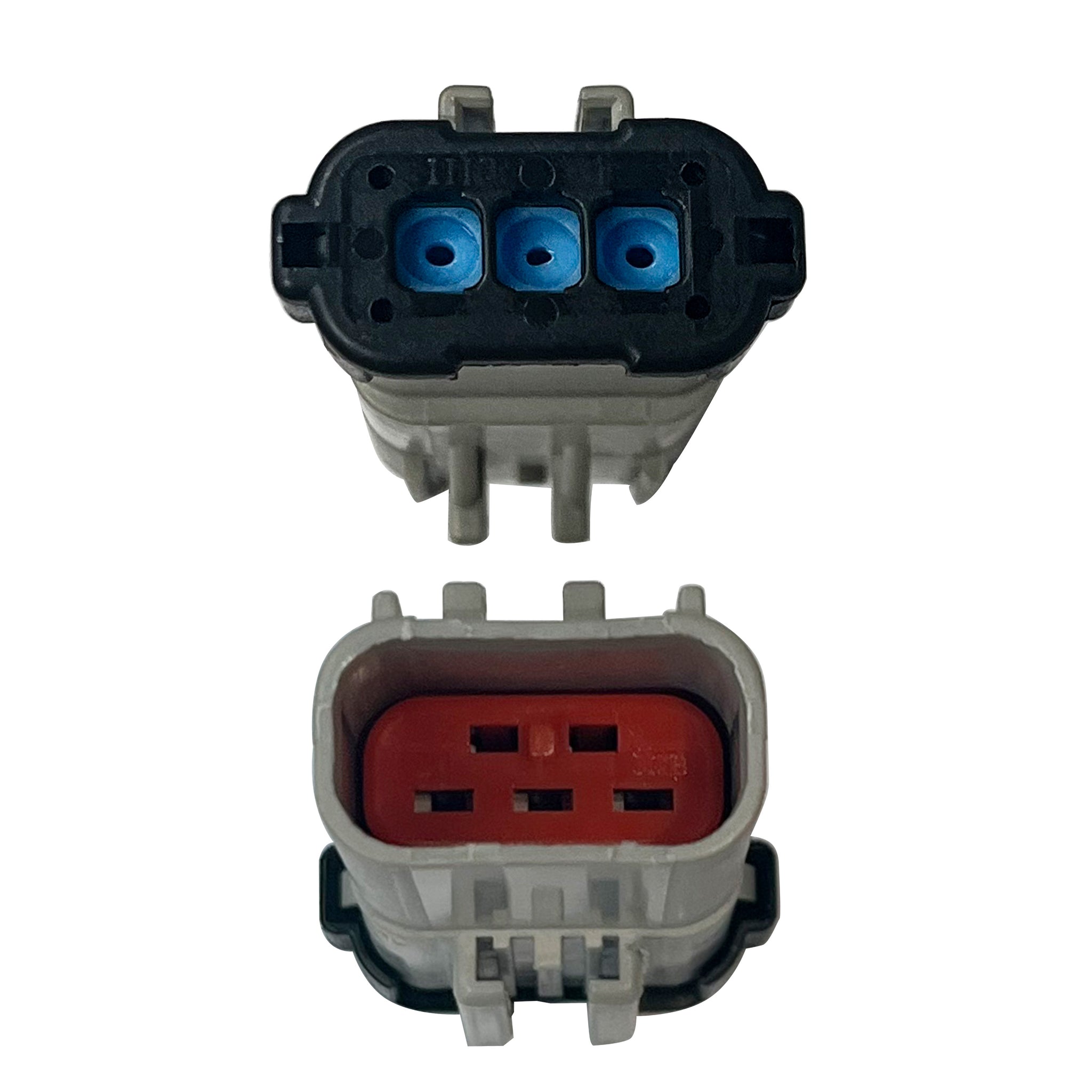

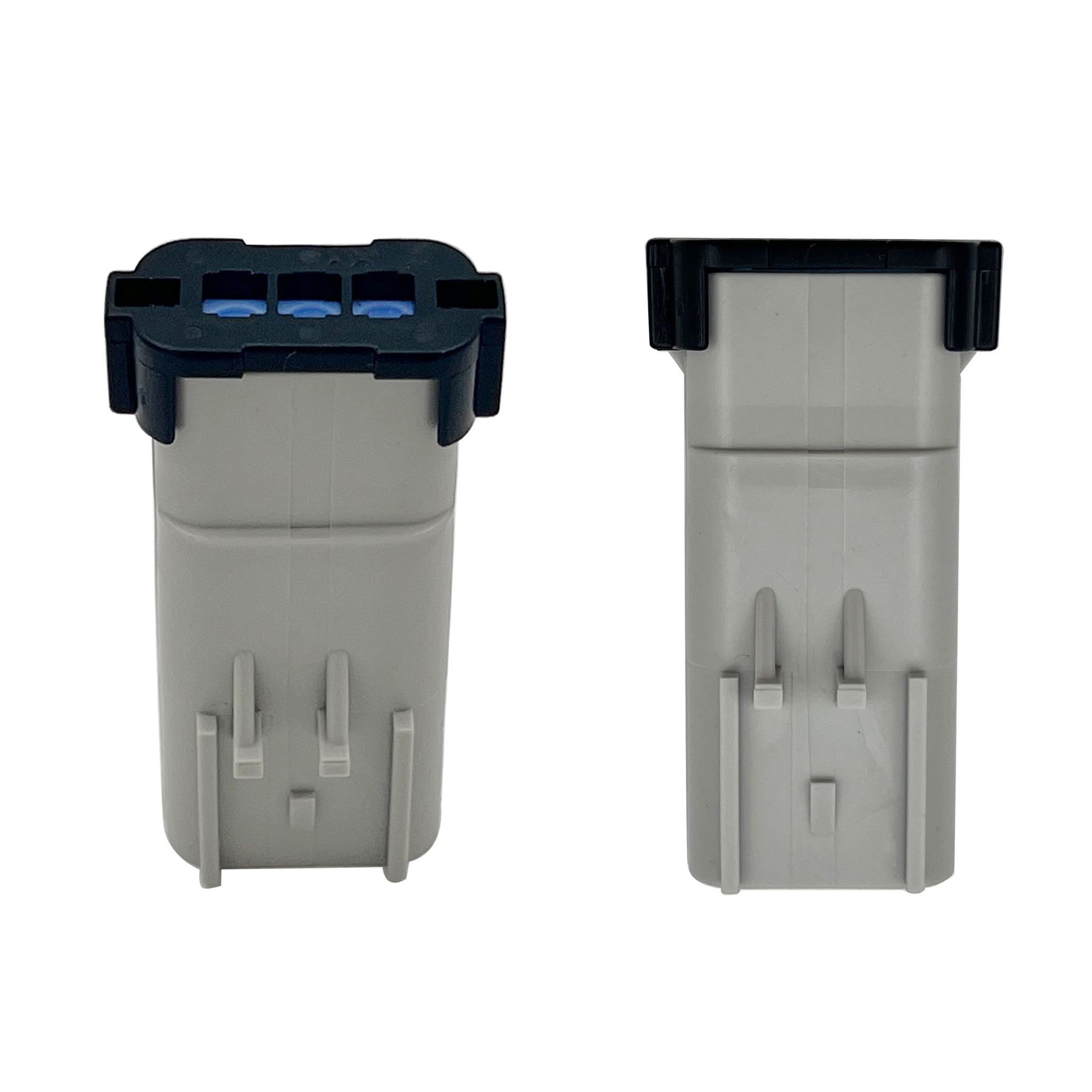

1.After the red, yellow and black wires pass through the firewall, remove the provided male plugs and push the wires into the correct positions as shown below. Place the male plug in front of you and make sure you can distinguish the top from the bottom.

0288 7.jpg__PID:070f50ce-4dc7-462f-bcc8-9a0e642b4017

0288 5.jpg__PID:9a0e642b-4017-4947-9305-c7f50d139ca8

Step 3 :

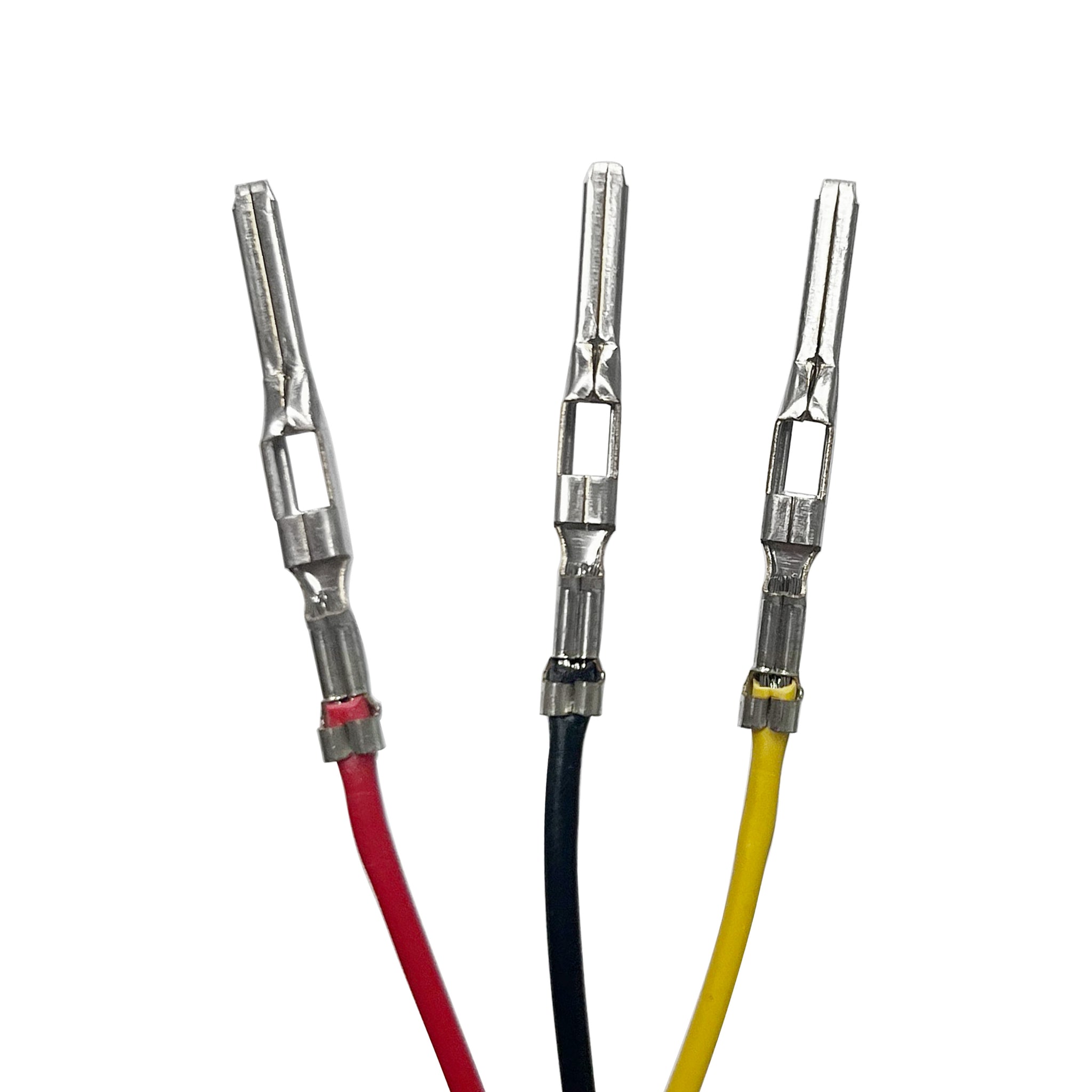

2.Now, hold the top of the male plug with one hand and the wire with the other, and insert the wire from left to right as shown below. When installed correctly, the wires will be locked in place. Yellow wire - left terminal , Black wire - middle terminal , Red wire - right terminal.

Step 4 :

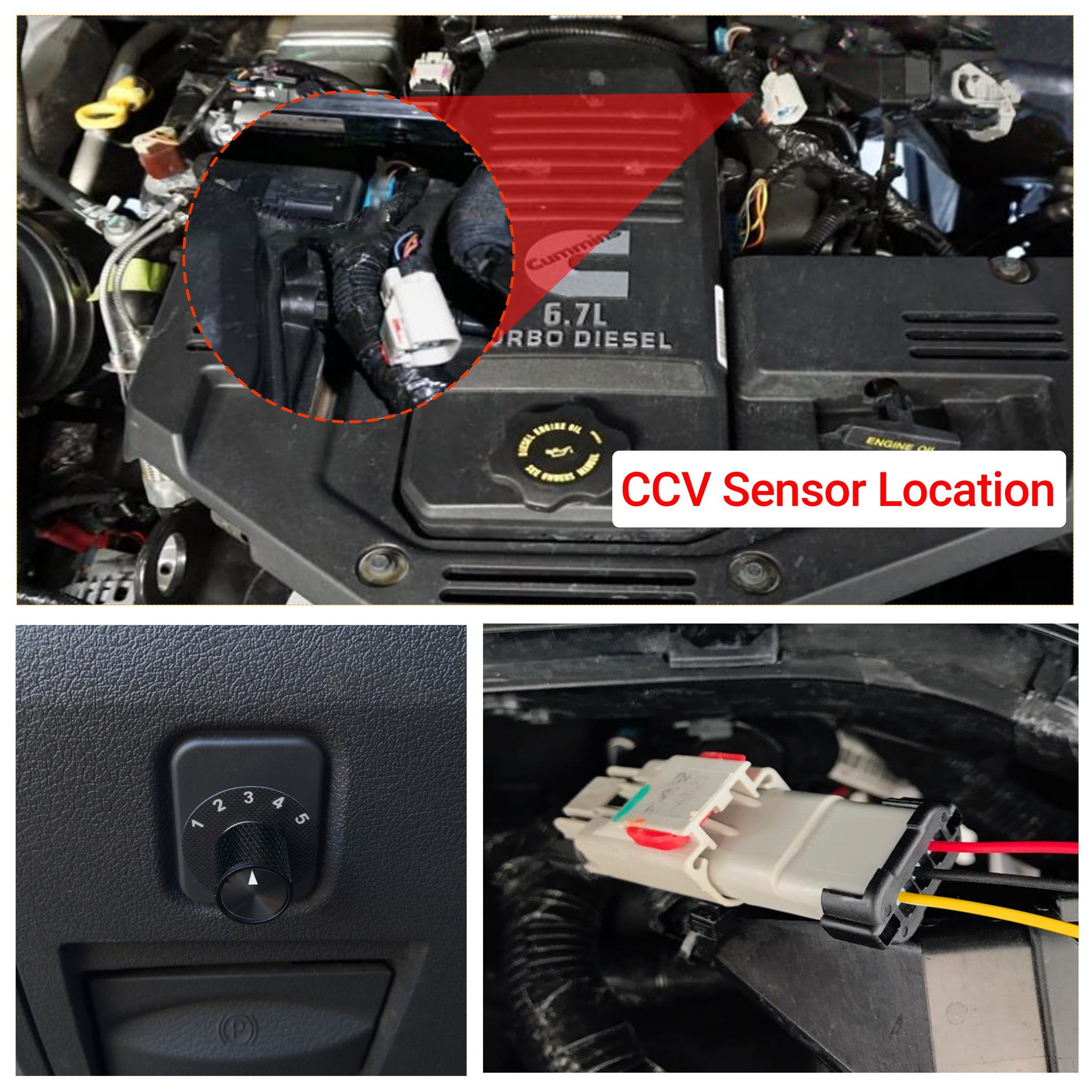

Locate the CCV sensor (crankcase vent) behind the valve cover near the firewall. Disconnect the CCV sensor - Slide the red lock label back, press the back of the gray sensor, and slide the gray sensor towards the driver's side.

0288 3.jpg__PID:9305c7f5-0d13-4ca8-96bc-0a6b6a246c60

0288 4.jpg__PID:96bc0a6b-6a24-4c60-98ee-f3252b0d6230

Step 5 :

1.Connect the "male plug" of the EZ LYNK switch to the grey CCV sensor and slide the red lock label back to the lock position. Carefully zip up all the extra wires/looms to avoid contact with any moving parts. 2.Install your SOTF-tuned SOTF switch on your smartphone or tablet using the EZ link app.

Step 6 :

1.Install the throttle delete valve bolt and four hexagonal bolts with washers in the installation kit. 2.Reconnect and tighten the intercooler tubes and clamps.

0072-1.jpg__PID:d9f13e70-cff3-433d-874c-64e3b5422862

Trucktok 2010+ Dodge Ram Cummins EZ-Lynk/CCV SOTF Switch

Trucktok 2010+ Dodge Ram Cummins EZ-Lynk/CCV SOTF Switch

$79.99

FITMENT

2010-2024 6.7L Ram Cummins 2500 3500 4500 5500 Turbo Diesel.

DESCRIPTION

Product Overview

Factory Ram diesel trucks limit your control over engine power, forcing you to re-flash your computer every time you want a different tune.
This Shift-On-The-Fly (SOTF) Switch integrates with your EZ LYNK AutoAgent tuner, allowing you to switch between custom power levels instantly from the driver's seat.
Whether you need fuel-efficient daily driving, max-torque heavy towing, or full race performance, you can toggle modes instantly without stopping or re-flashing your ECM.

Key Features

Heavy-Duty Construction: Features high-temp automotive wiring loom and corrosion-resistant pins built to withstand severe engine bay heat and vibration.

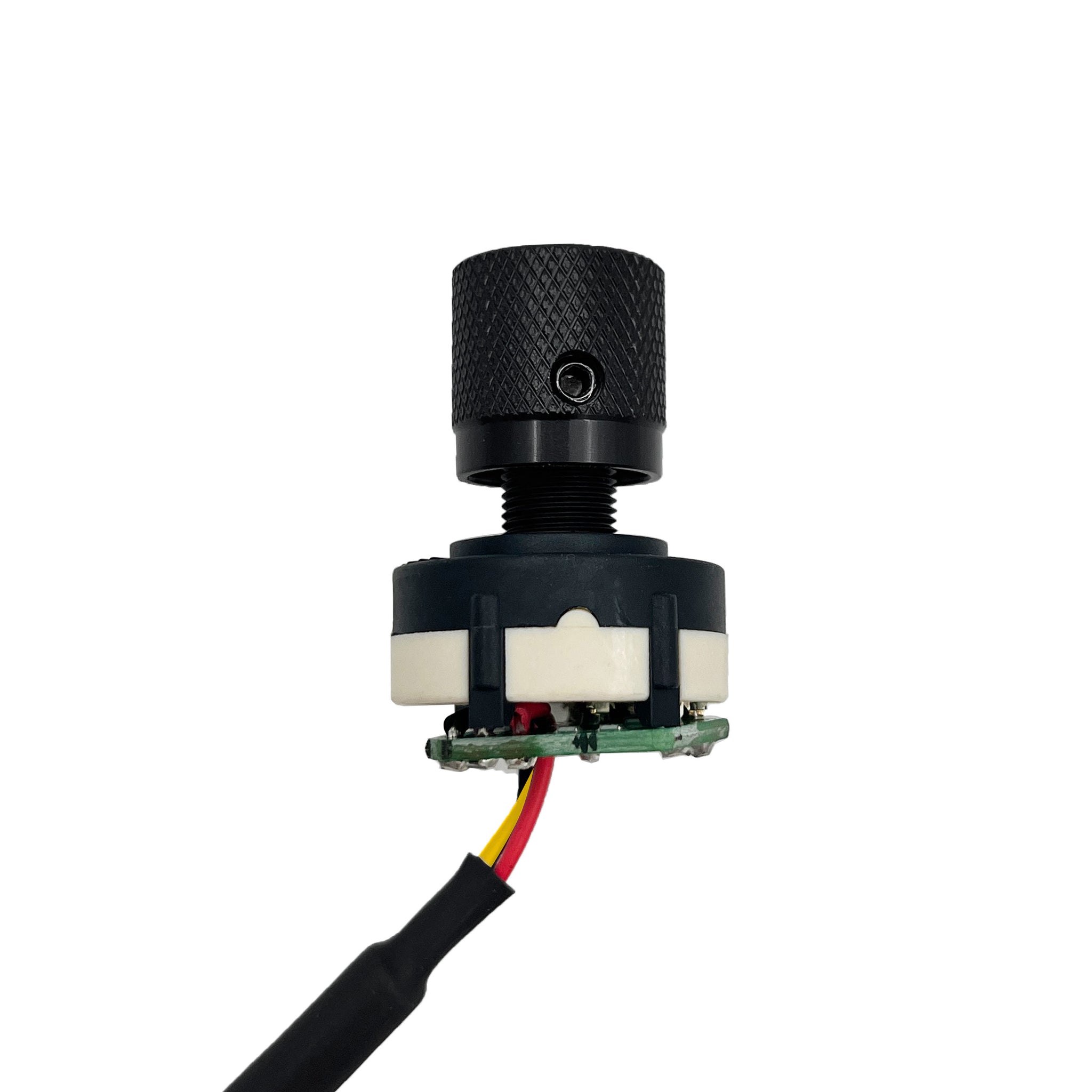

Multi-Position Dial: Features smooth-detent 5-position rotary control with numbered dial positions for precise performance selection.
Instant Power Switching (Shift-On-The-Fly): Change power levels on the fly with a turn of a dial—no need to stop, turn off the engine, or re-flash software.
Plug-and-Play Installation: Designed with OEM-style weatherproof connectors that plug directly into factory engine sensors for a clean, reliable fit.

FAQ

Q: What is a Shift-On-The-Fly (SOTF) switch?

A: A Shift-On-The-Fly switch allows you to select between pre-loaded tuning levels by sending a position signal to your compatible tuning system. The tuner, such as EZ LYNK, uses the selected position to switch between available ECM calibrations without manually re-flashing the truck.

Q: Will this switch work with any custom tune?

A: No. The switch is purely a physical controller. It requires your truck's ECM to already have a SOTF-enabled custom tune pack loaded. If your truck is running a Single-Position tune or stock software, the switch will not change power levels.

Q: Does this switch add horsepower by itself?

A: No. The SOTF switch does not create additional power. It allows you to select between tuning levels that have already been programmed by your tuner.

Q: Can I switch from a towing tune to a performance tune instantly?

A: The switch allows quick selection between available pre-loaded tuning levels. Actual tune changes and available settings depend on the custom calibration provided through your EZ LYNK system.
