ER-0262 2009-2024 6.7L Ram EGR Throttle Valve Delete Kit

2009-2024 6.7L RAM EGR Cooler Throttle Delete Kit

Improve the performance of your motor!

ER-0262-4.png__PID:d9addb21-d0a8-41d0-898f-c5aed2dc08e0

How it Installation?

Installation instructions

0089 1.png__PID:3a86a424-a891-4455-99f3-8bf7fb467bb3

Step 1 :

Disconnect the sensor plug. removed the EGR crossover pipe and the electrical connector on the EGR valve.Remove the EGR valve,Remove all existing gaskets and materials from the installation surface of the intake elbow.

Step 2 :

Install the intake block with the provided bolts. Ensure that both O-rings are fully seated.Remove the heat shield from the EGR bypass valve. The exhaust bypass will be removed together with EGR servo.Remove the crankcase breather tube that runs over the EGR cooler.

ER-0262-3.png__PID:e1c1e970-c768-4107-b35c-722d89a3b6f5

0089 3.jpg__PID:fb467bb3-4e13-4ee9-814c-4df3c42e7795

Step 3 :

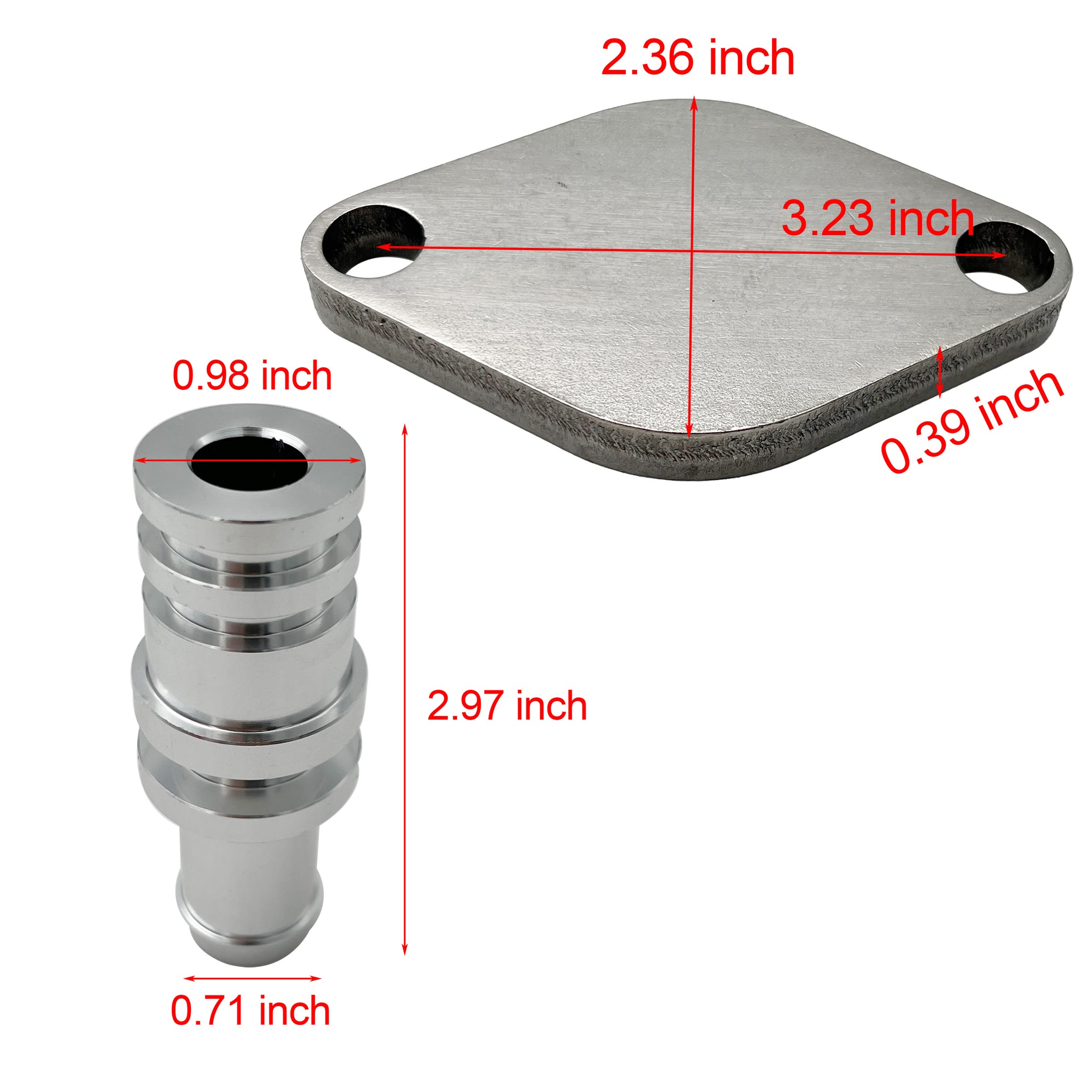

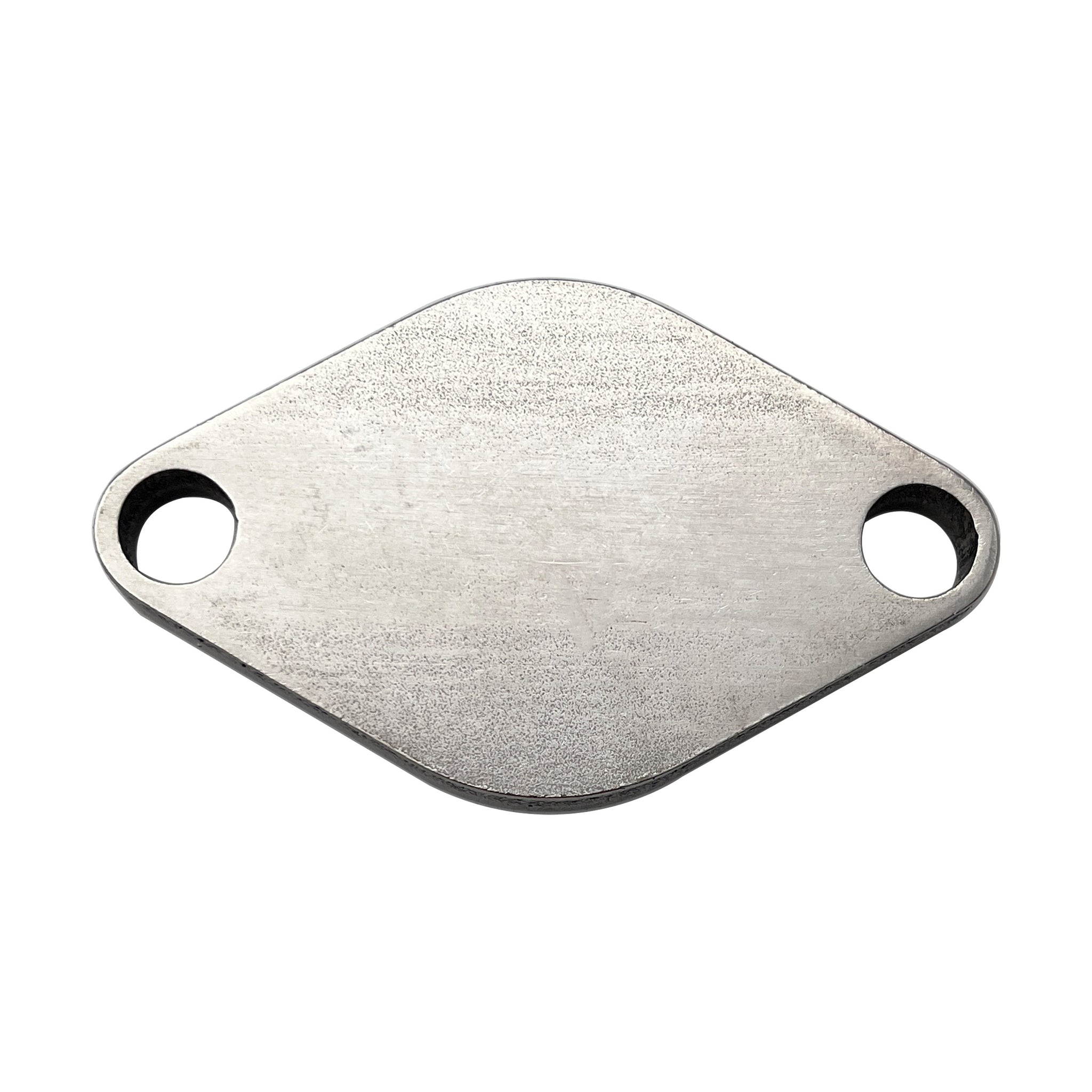

Remove the exhaust cross bend fixed in place by two 15mm nuts. Install the small exhaust block plate.(*The block o that is not pre-drilled will be installed in place of the exhaust crossover elbow.)

Step 4 :

1.Install the other exhaust block off plate, reusing the factory hardware. The block off with the pre-drilled port will be installed on the back side of the exhaust manifold.
2.Re-install the crankcase breather tube.

0089 4.jpg__PID:9ee9014c-4df3-442e-b795-c178b69e25f6

ER-0262-5.png__PID:d43b244f-12f9-4ff7-b77f-7ac41b7db416

Step 5 :

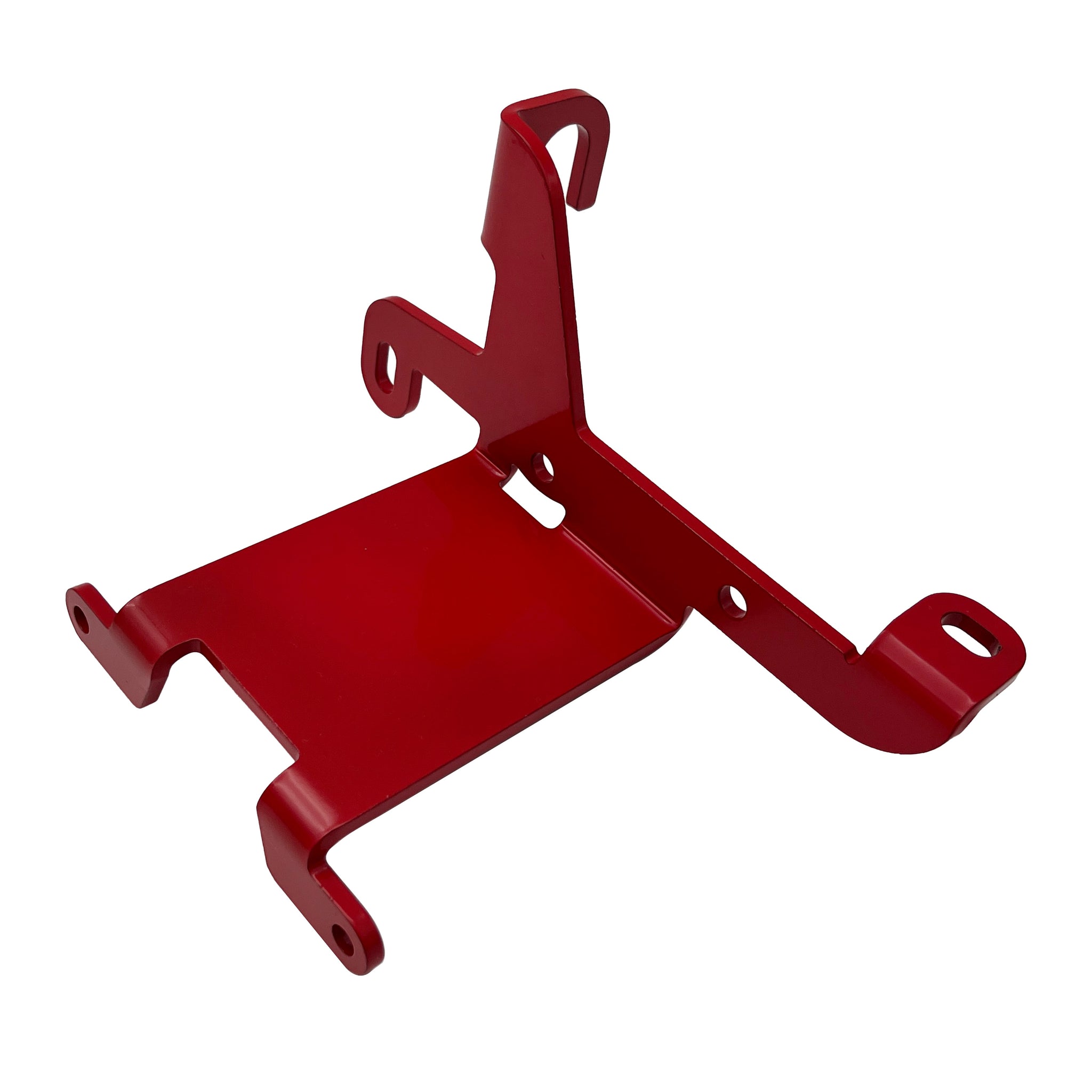

1.Install the bracket. The M10 bolt will be screwed into the support bolt. Secure the transmission dipstick to the bracket using 1/4-20 bolts, nuts, and washers.

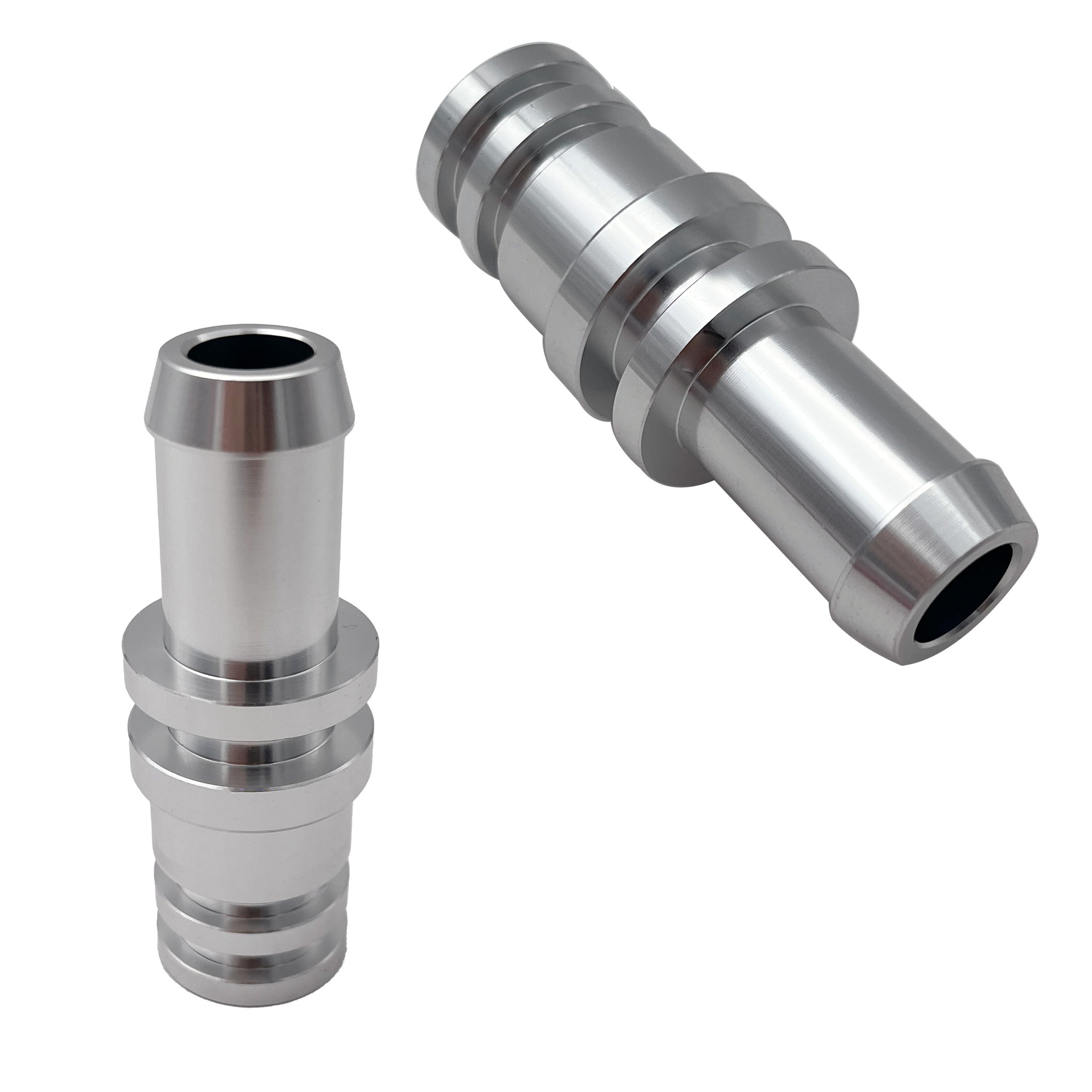

2.The bracket will hold the coolant hose connector in place.

Step 6 :

1.Install the bracket. The M10 bolt will be screwed into the support bolt. Secure the transmission dipstick to the bracket using 1/4-20 bolts, nuts, and washers.
2.The bracket will hold the coolant hose connector in place.

0262 2.jpg__PID:a5199b61-017a-4f1a-82bb-9dc0ba3f0540

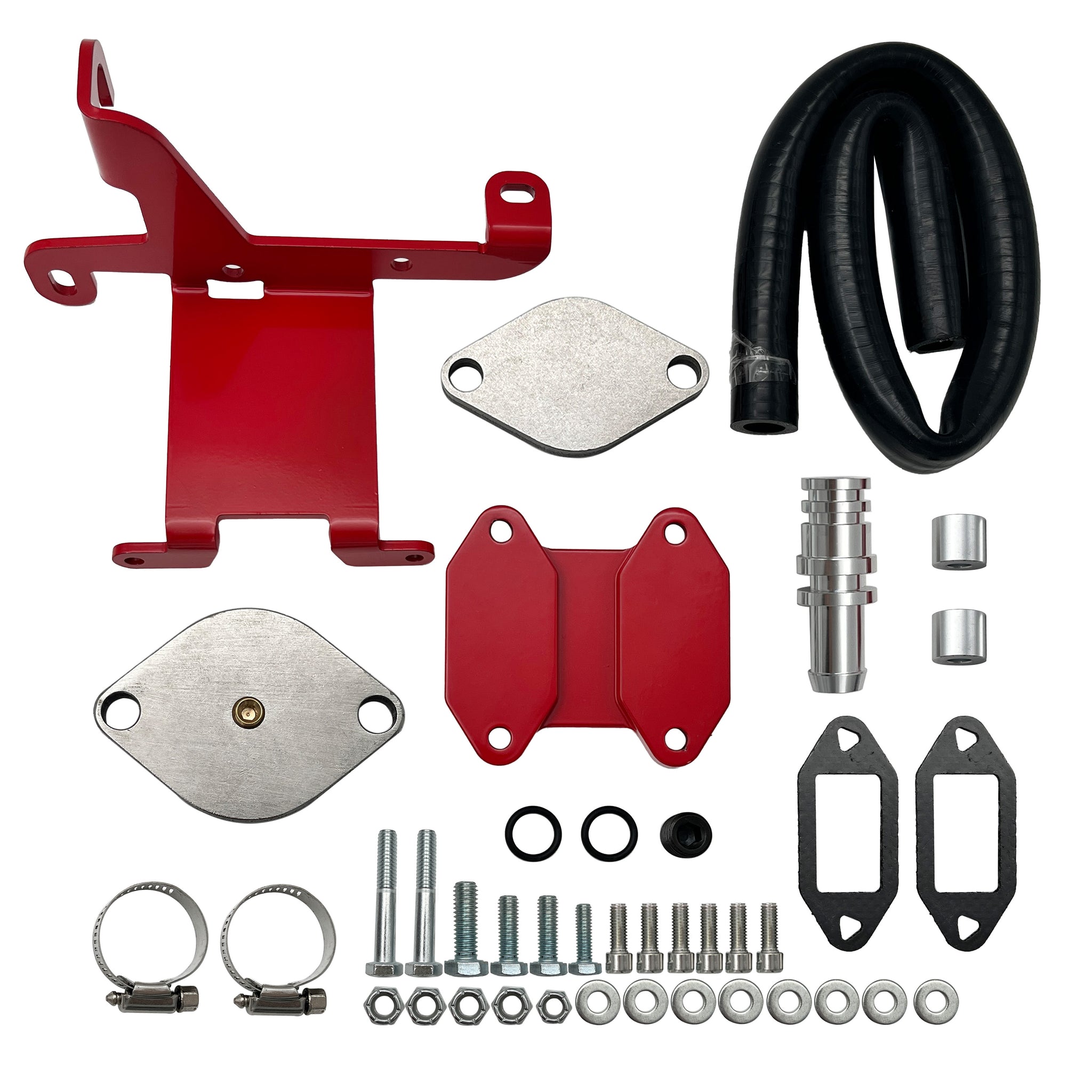

TruckTok 2009-2024 6.7L Ram Cummins 2500 3500 EGR Valve Cooler Delete Kit

TruckTok 2009-2024 6.7L Ram Cummins 2500 3500 EGR Valve Cooler Delete Kit

$128.88

Material:Aluminum alloy.

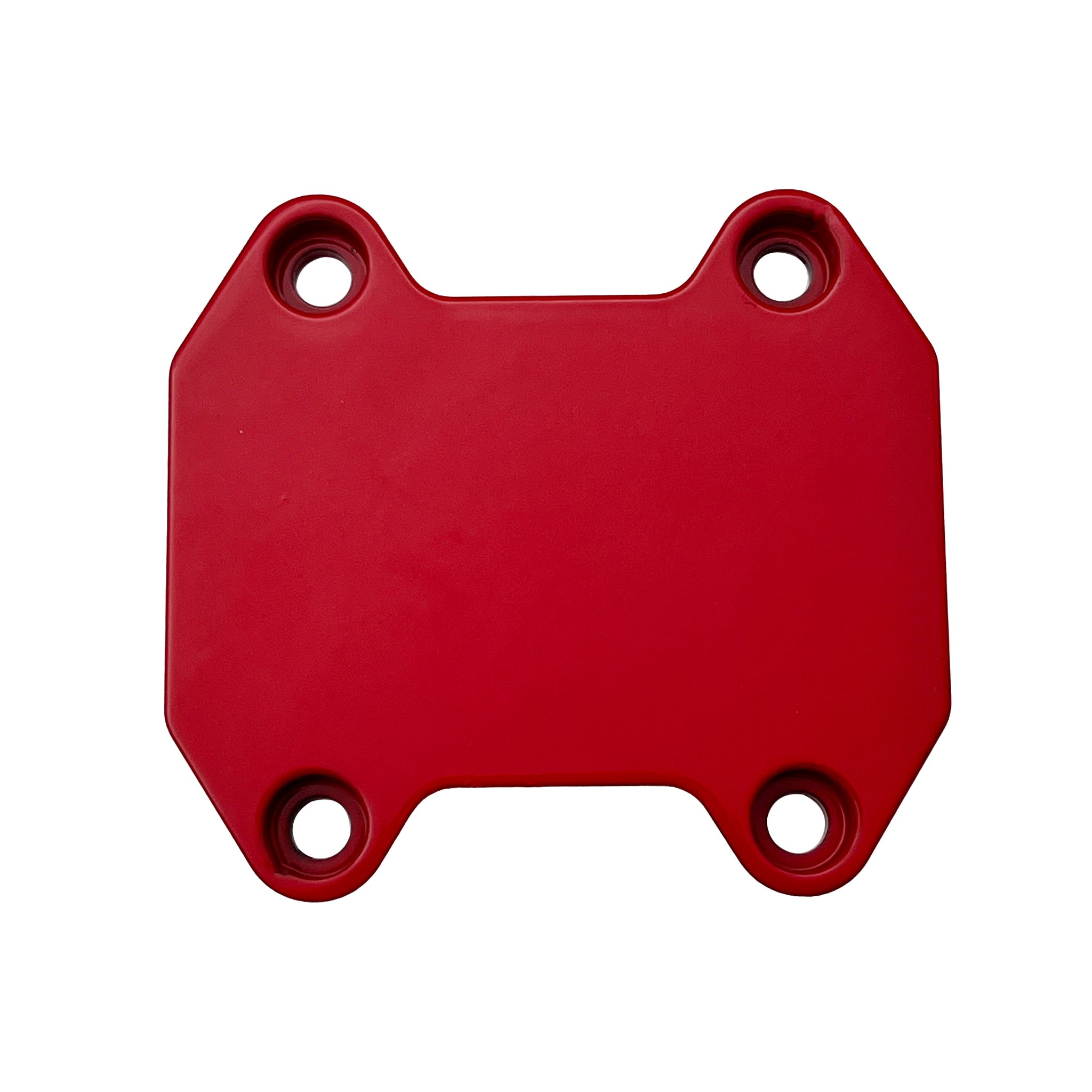

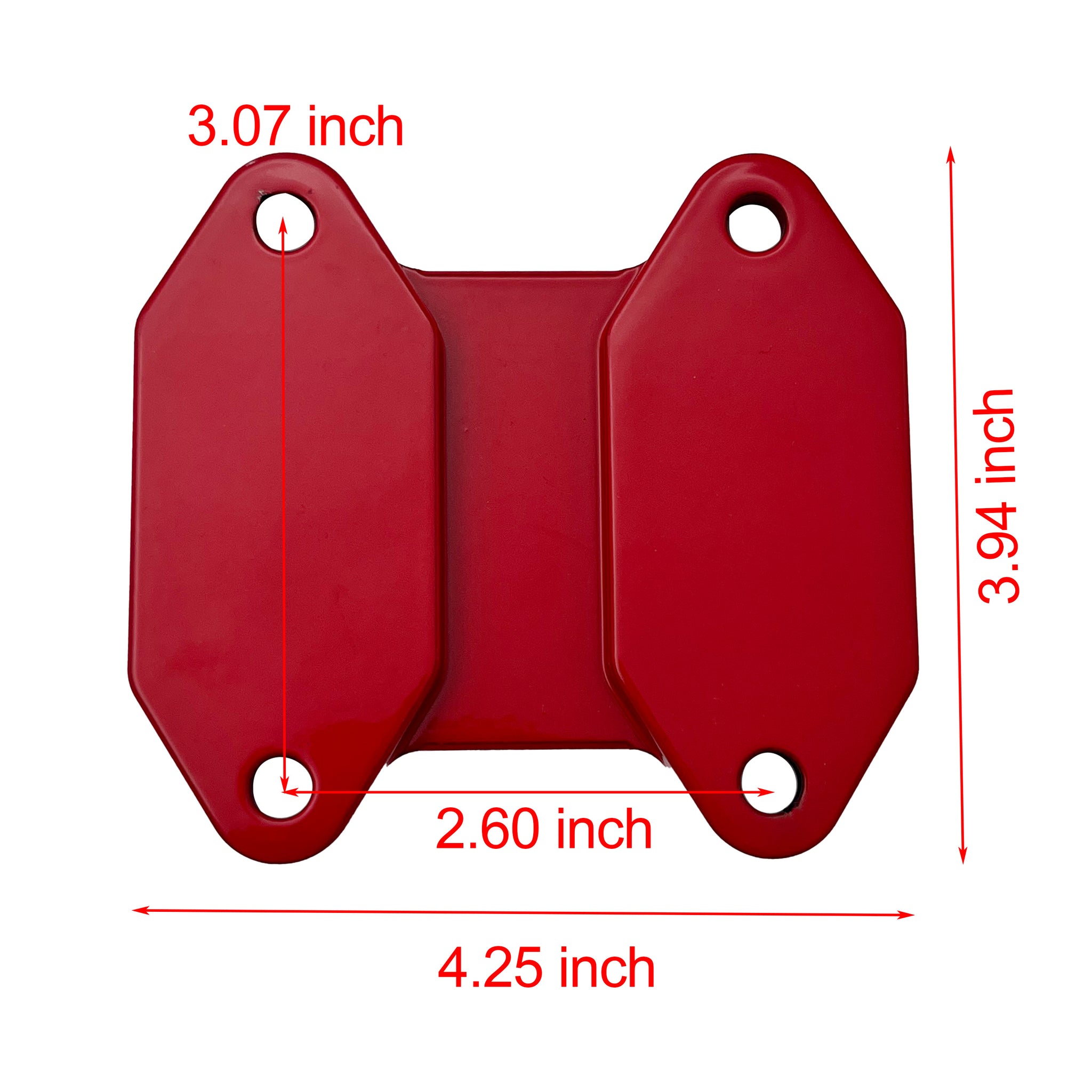

Machined Intake Blocker Plate.

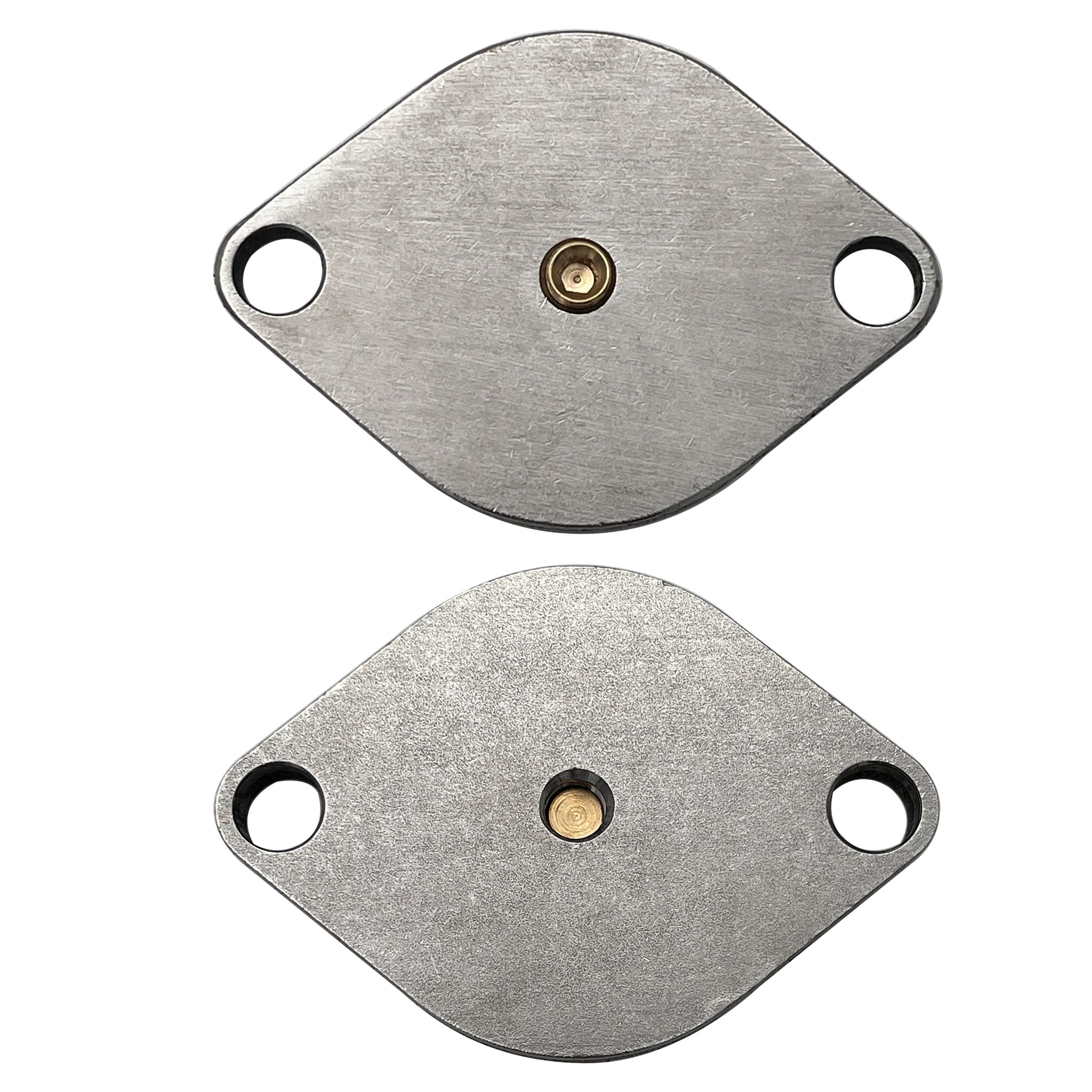

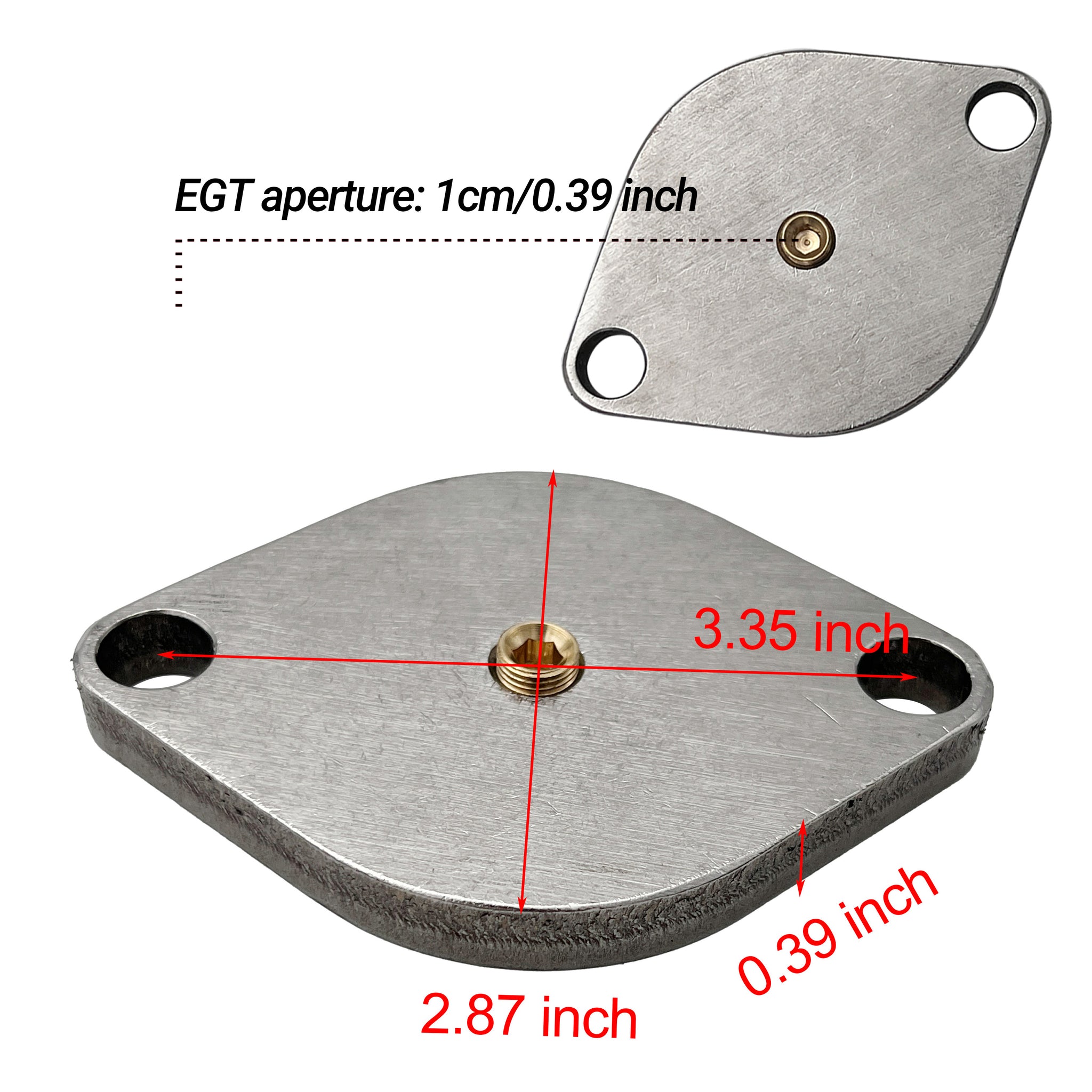

Pre-Tapped Manifold Block Off Plate: Ready for EGT Probe installation.
Eliminate the EGR cooler, crossover tube, and actuator, reducing soot buildup in the intake tract.

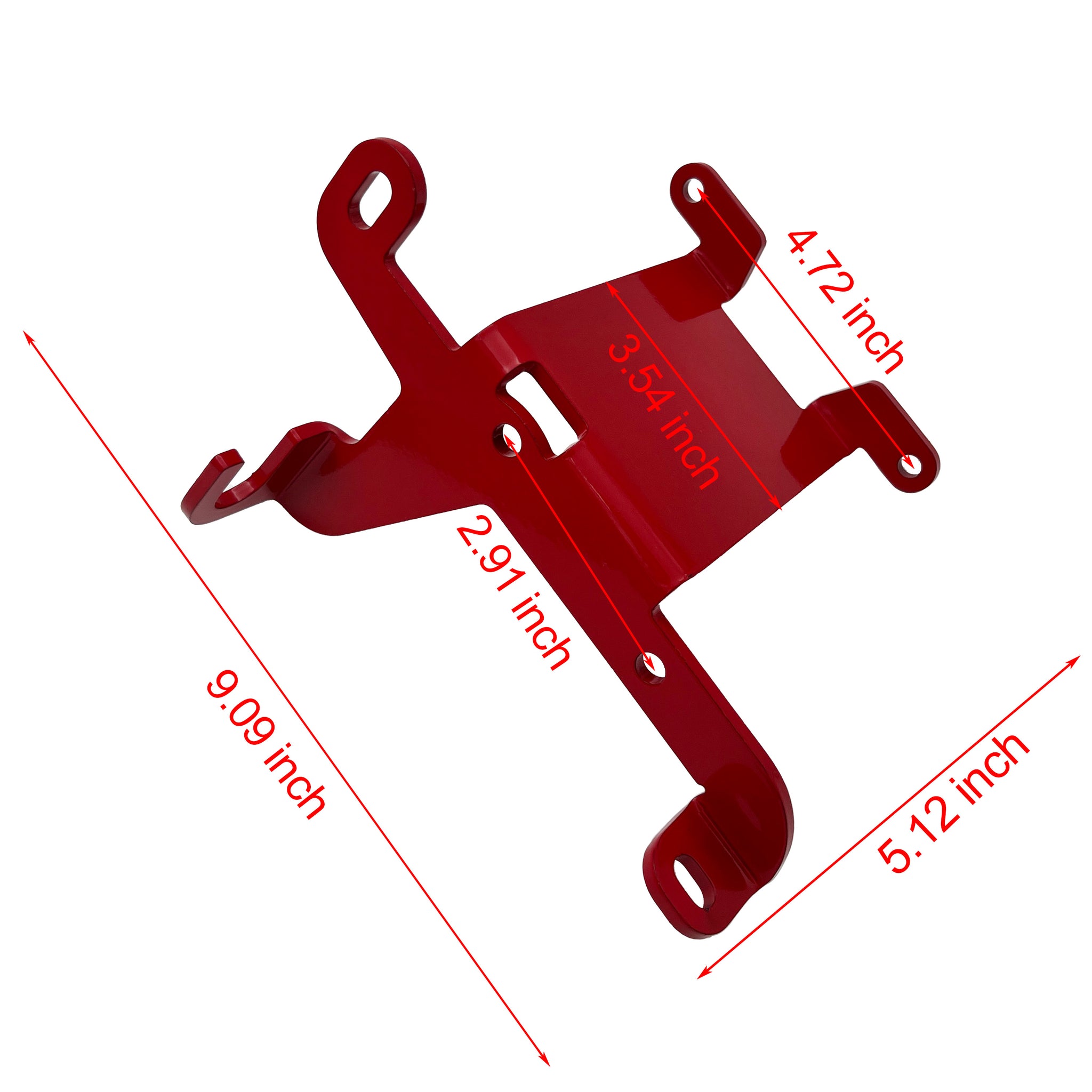

Improved integrated DDC riser bracket: directly installed on the engine without the need to deal with exhaust studs!
Transport the coolant to the rear of the cylinder head between cylinders 5 and 6.
Fit 2009-2024 6.7L Dodge Ram Cummins 2500 3500 ,Not fit Cab & Chassis truck.
Instruction Manual page: Click This
