How it Installation?
Installation instructions
Step 1 :
Remove the intake pipe and muffler.Loosen all 6mm bolts on the valve cover and loosen the hose clamp located in the center, then remove the PCV crossover pipe.
Step 2 :
The installation kit provides two steel billet accessories. The O-ring end will be installed in the valve cover. It is best to apply a little oil on the O-ring for easy installation.
Step 3 :
Insert the black plug provided in the kit into the air intake and secure it with a zip tie.
Step 4 :

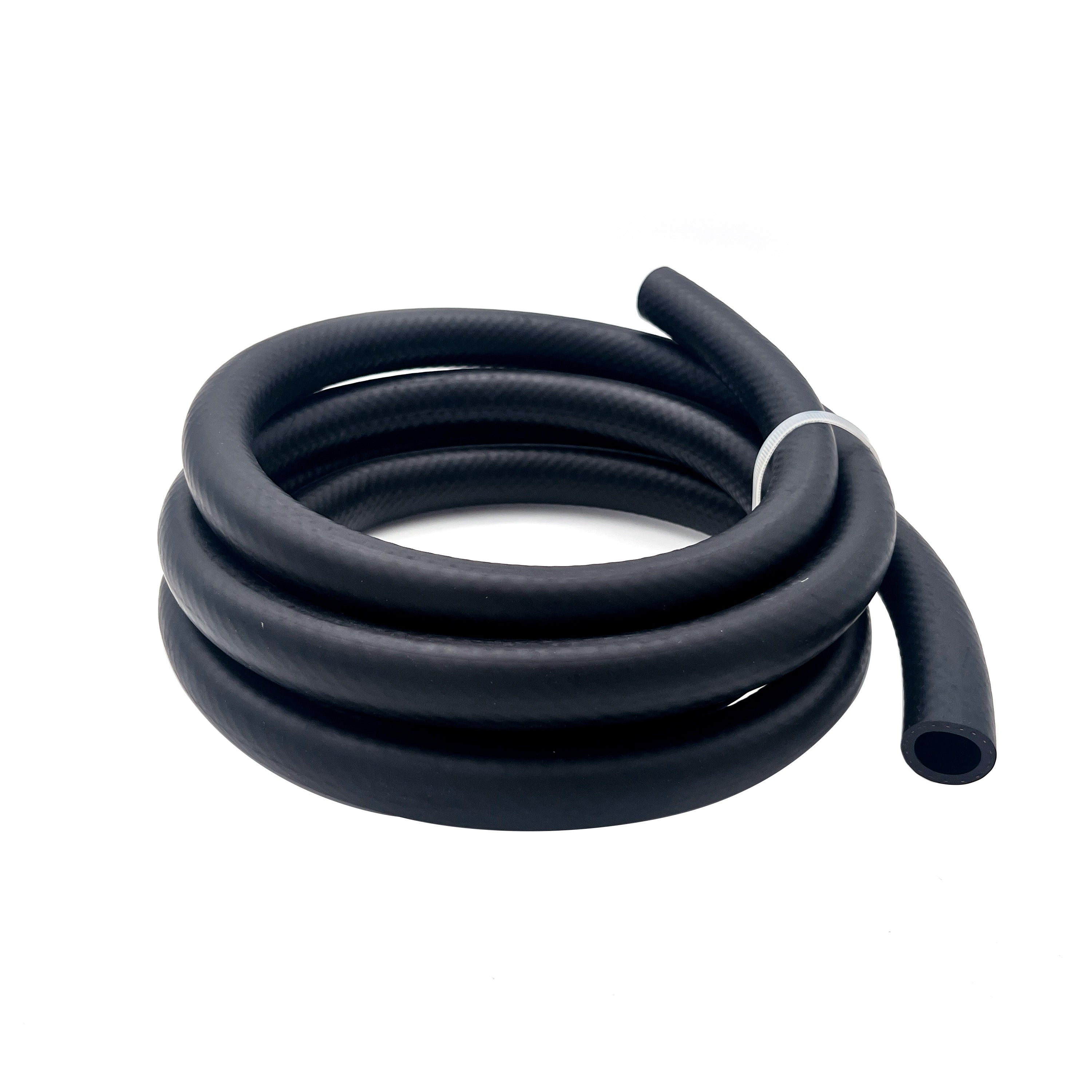

1.Connect the longer hose to the steel billet joint on the driver side and connect it with the provided hose clamp. arrange the hose behind the air pipe.
2.Connect the shorter hose to the passenger side connector and connect it with the accompanying hose clamp. Connect the two hoses together with zip ties and run them parallel.
Step 5 :
Guide the hose through the outer side of the frame and extend it to the wheel cover area at the rear of the upper control arm. Ensure that the hose is arranged along the outer side of the frame to effectively avoid and clean the exhaust system.
Step 6 :
1.Install the bracket. The M10 bolt will be screwed into the support bolt. Secure the transmission dipstick to the bracket using 1/4-20 bolts, nuts, and washers.
2.The bracket will hold the coolant hose connector in place.
