FITMENT
- 2007.5-2021 6.7L Dodge Ram 2500 3500 4500 5500 engines.
- Note: 2018+ Ram trucks require a Cummins Security Gateway Bypass Cable to flash the ECM and use SOTF switches.
DESCRIPTION
Product Overview
-
When running custom EFI Live tuning on a 6.7L Cummins diesel truck, switching between power levels traditionally requires reflashing the ECM with a new tune file. This process can be time-consuming when changing between towing, street, or performance settings.

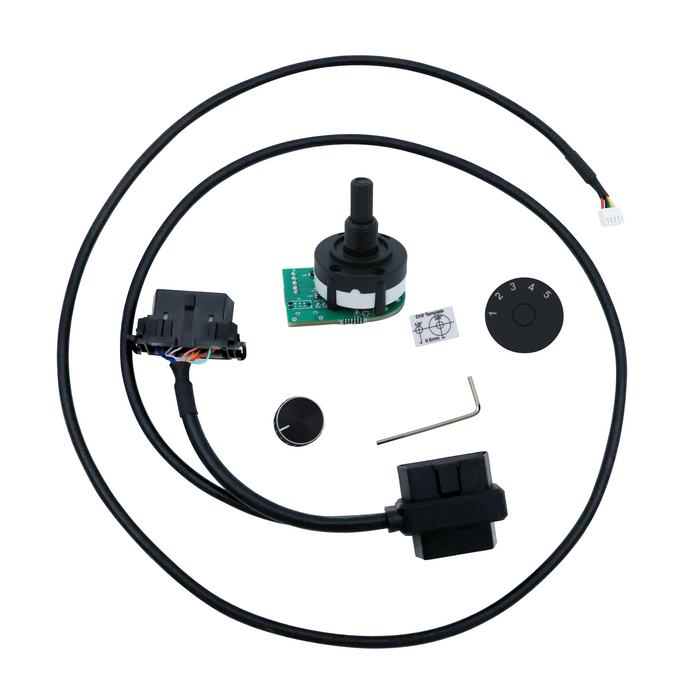

- The Fish Tuning FTCSP5 CSP5/SOTF Switch allows drivers to switch between pre-loaded custom tunes without reflashing the ECM each time. Featuring an OBD-II pass-through Y-cable, this rotary switch provides convenient On-The-Fly tune selection from the driver's seat while keeping the factory OBD-II port available for diagnostic tools and accessories.
Key Features
- Switch-On-The-Fly Convenience: Change between pre-loaded tune levels without stopping to reflash the ECM.

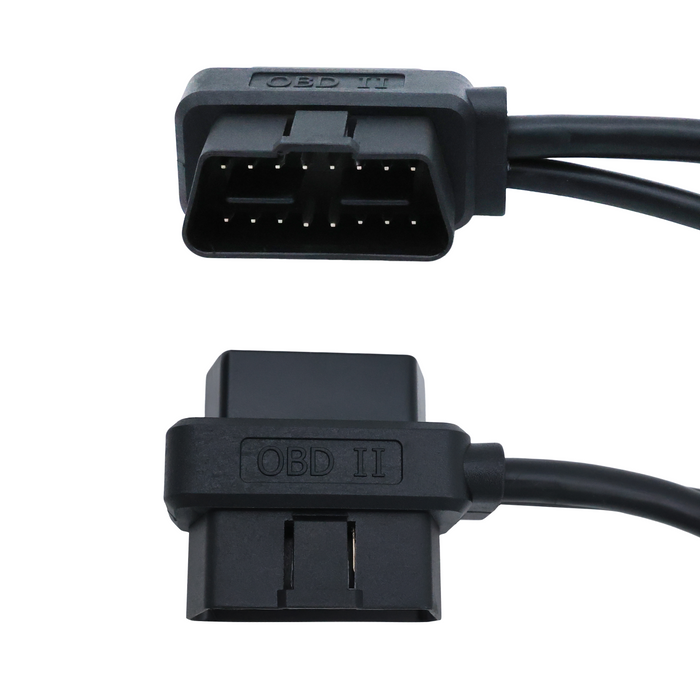

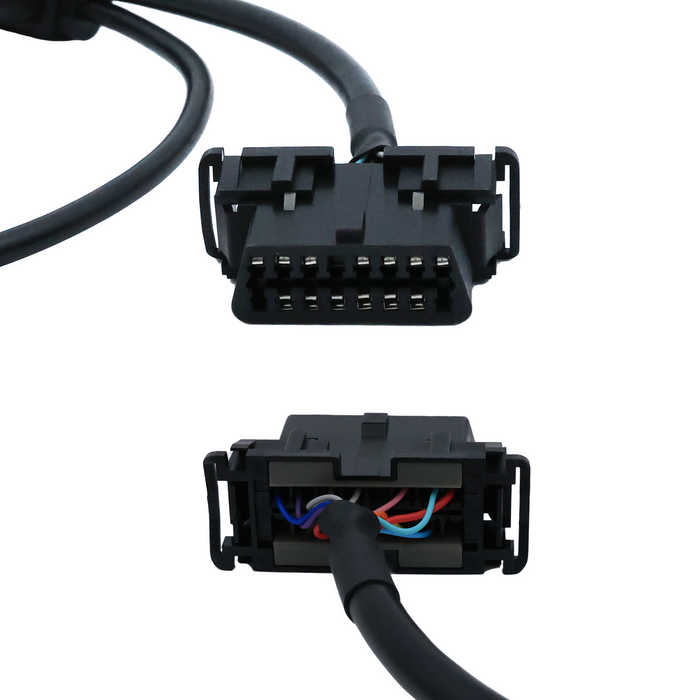

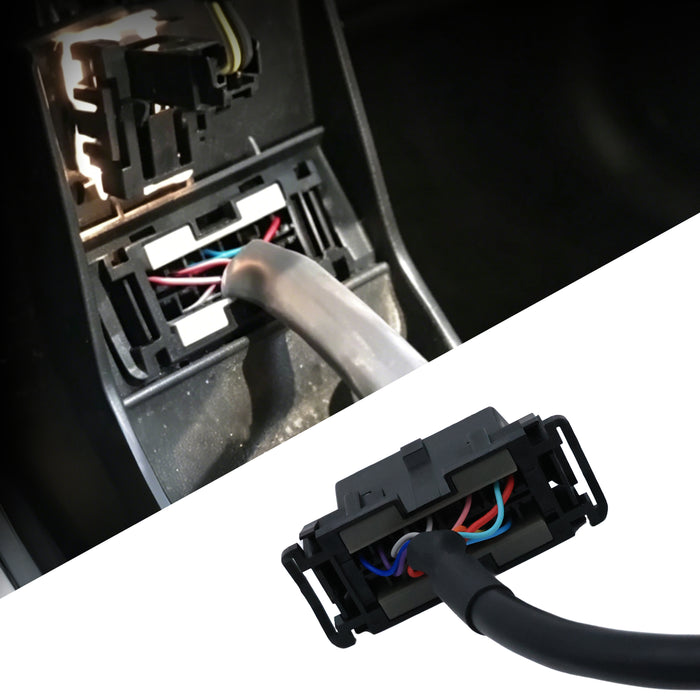

- Clean OBD-II Pass-Through: The pass-through Y-cable installs behind the dash, keeping the factory OBD-II port available for monitors and diagnostic tools.
- EFI Live CSP5 Compatibility: Designed for custom EFI Live CSP5/SOTF tuning configurations on compatible Cummins applications.
- Built-In LED Tune Indicator: Integrated LED indicator confirms the selected tune position for quick reference.

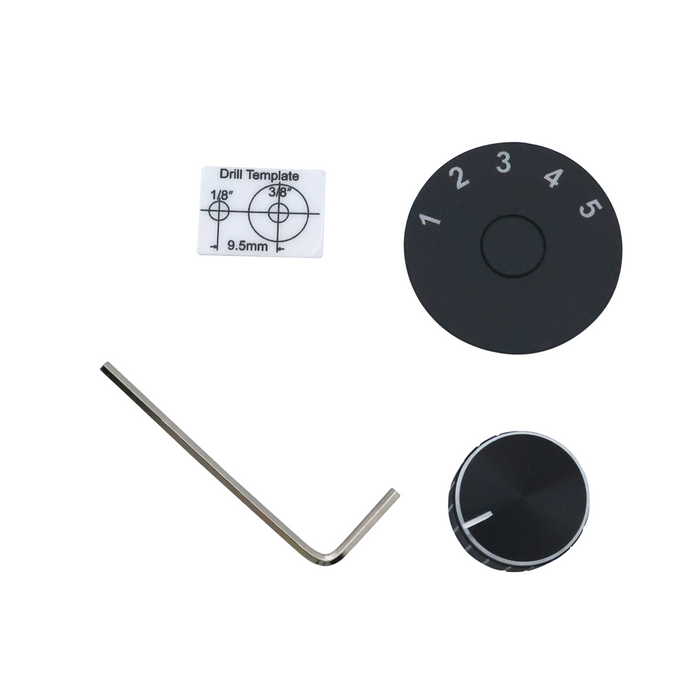

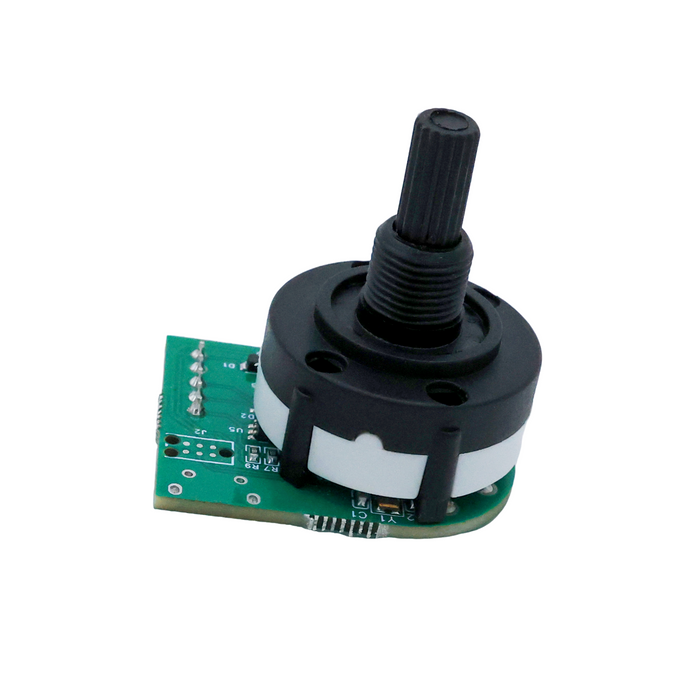

- Durable Rotary Switch Design: Includes a knurled aluminum knob, position decal (1–5), anti-rotation washer, and strain-relief zip ties for a secure installation.
FAQ
Q: Does this Fish Tuning CSP5 switch come pre-loaded with tunes?
A: No. This is a hardware selector switch only. Your ECM must already be programmed with compatible custom CSP/SOTF tuning files before the switch can change between tune levels.
Q: Can I flash my ECM while the SOTF switch is connected?
A: No. Disconnect the switch harness from the OBD-II port before flashing new ECM files to avoid possible communication issues. Reconnect the switch after programming is complete.
Q: Will the switch keep my selected tune after turning the truck off?
A: Yes. The ECM will recognize the switch position after key cycles as long as the selected tune configuration remains programmed in the ECM.
Q: Can I use this switch without custom tuning?
A: No. The switch only selects between existing tune files programmed into the ECM. It does not create, modify, or install tuning by itself.
Q: Why do 2018+ Ram trucks require a Security Gateway Bypass Cable?
A: Starting in 2018, Ram trucks added a factory Security Gateway Module that restricts aftermarket OBD-II access. A bypass cable is required to allow compatible tuners like EFI Live, MM3, or Smarty to communicate with the ECM for custom tuning and SOTF functions.
