How it Installation?
Installation instructions
Step 1 :
Unscrew the hose clamps and V-band clips that secure the two bent pipes at the turbine inlet and remove the turbine inlet bend.
Step 2 :

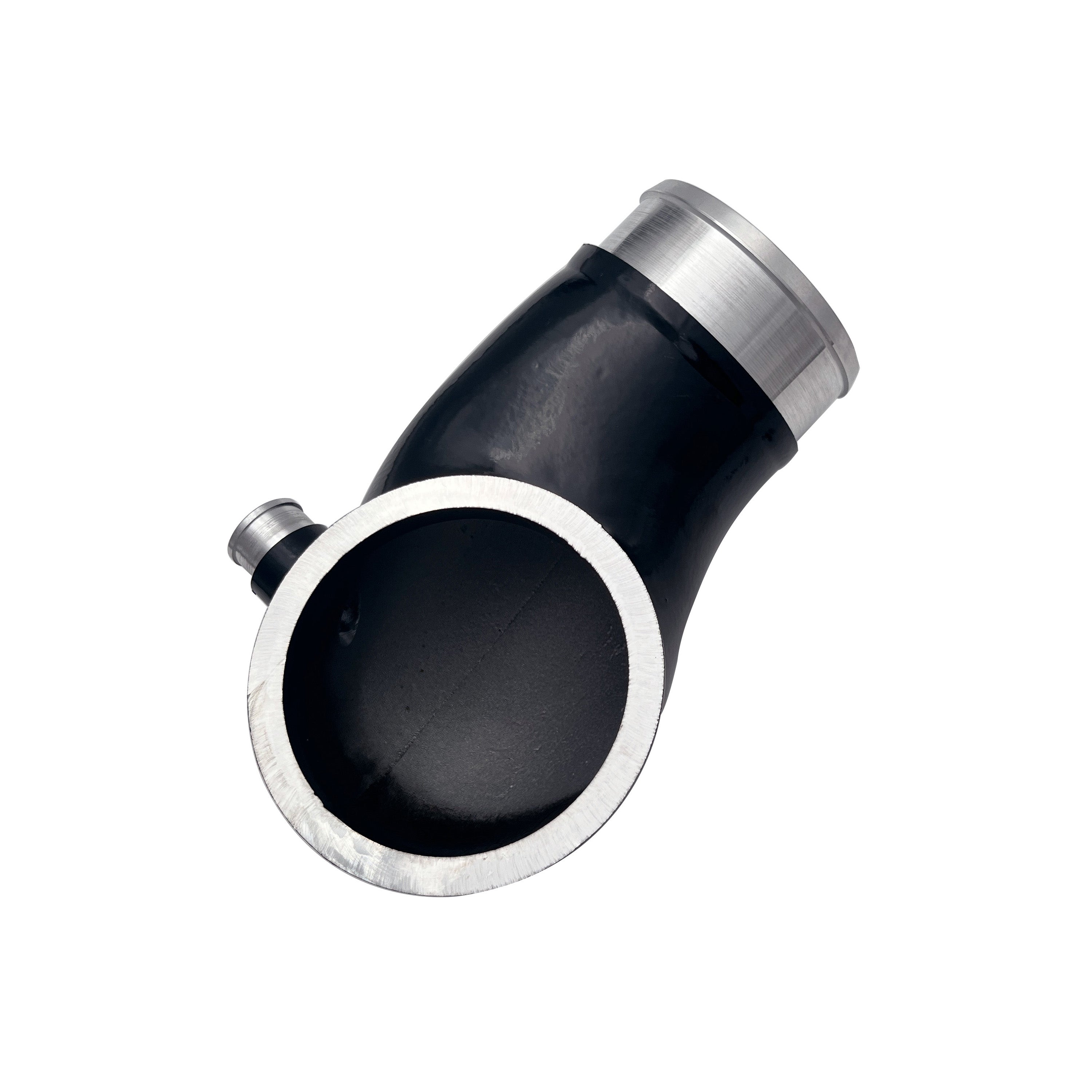

Reinstall the turbine intake elbow, aligning the larger end with the turbine inlet and continuing to tighten the other end with the inlet using a clamp.Note: keep the turbine inlet clean to prevent impurities from entering the turbine.
Step 3 :
Use an eight millimeter hex wrench to tighten the plug on the turbine intake elbow to prevent leakage.
Step 4 :
1.Re-install intake tube with the front long bolts going through the previously installed support bracket.
2.Reverse earlier steps to re-install the pcv hose, electrical wires, intake and intake resonator.
Step 5 :
1.Use the newly provided coolant hose and hose adapter to connect the two coolant ports previously connected to the EGR cooler. Secure the hose with the provided hose clamp.
2.Replace the manifold bolts with the provided vertical bolts.
Step 6 :
1.Install the bracket. The M10 bolt will be screwed into the support bolt. Secure the transmission dipstick to the bracket using 1/4-20 bolts, nuts, and washers.
2.The bracket will hold the coolant hose connector in place.
