How it Installation?
Installation instructions
Step 1 :

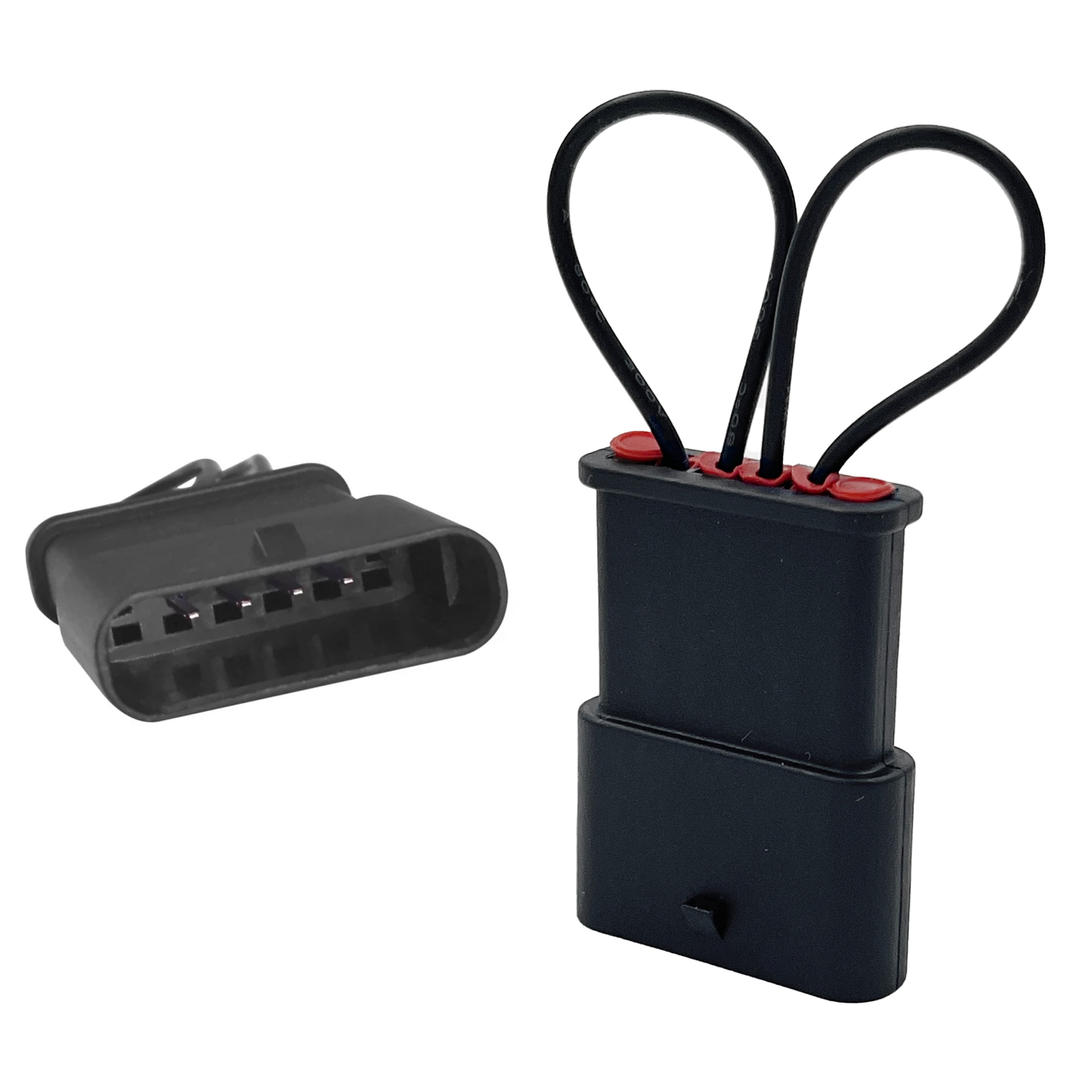

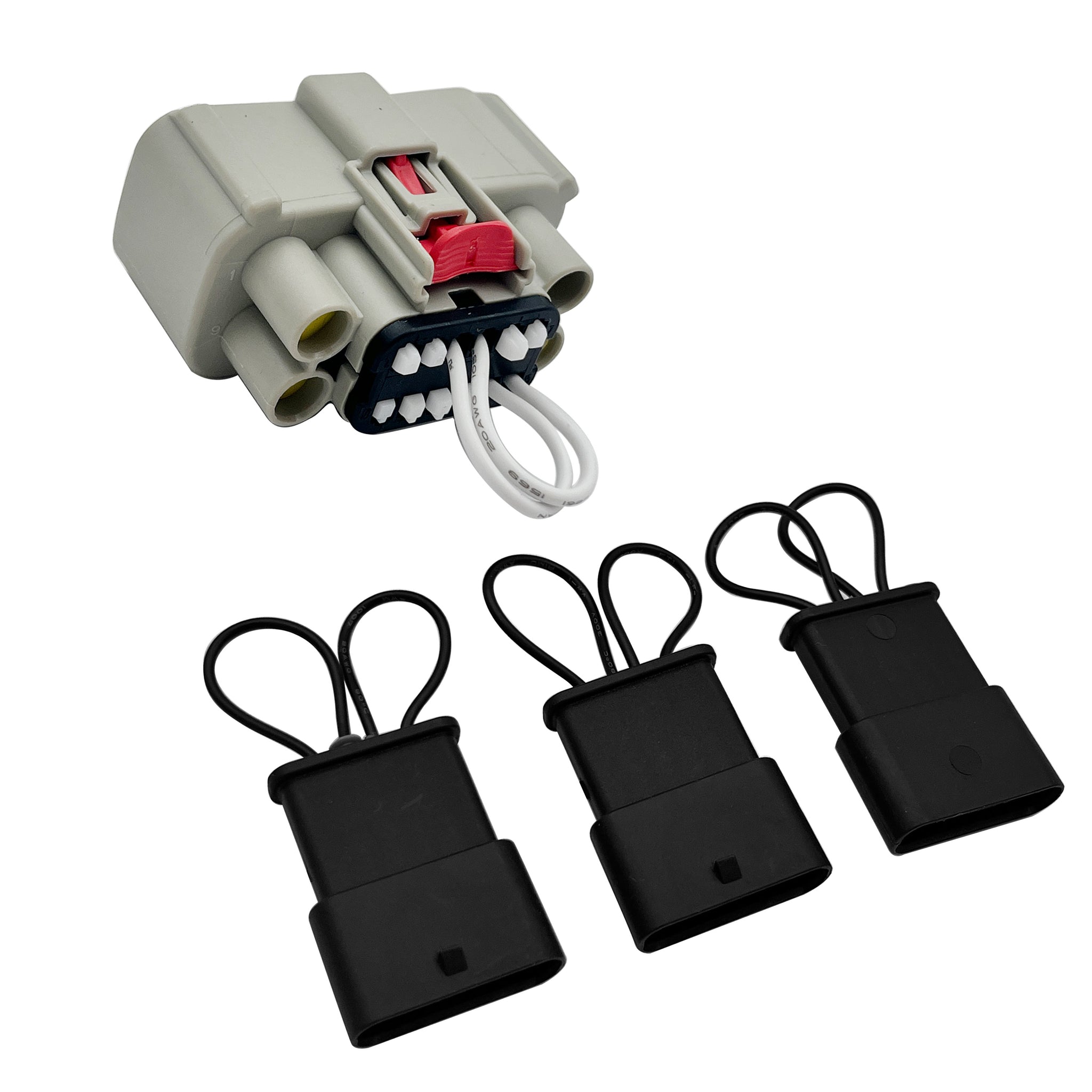

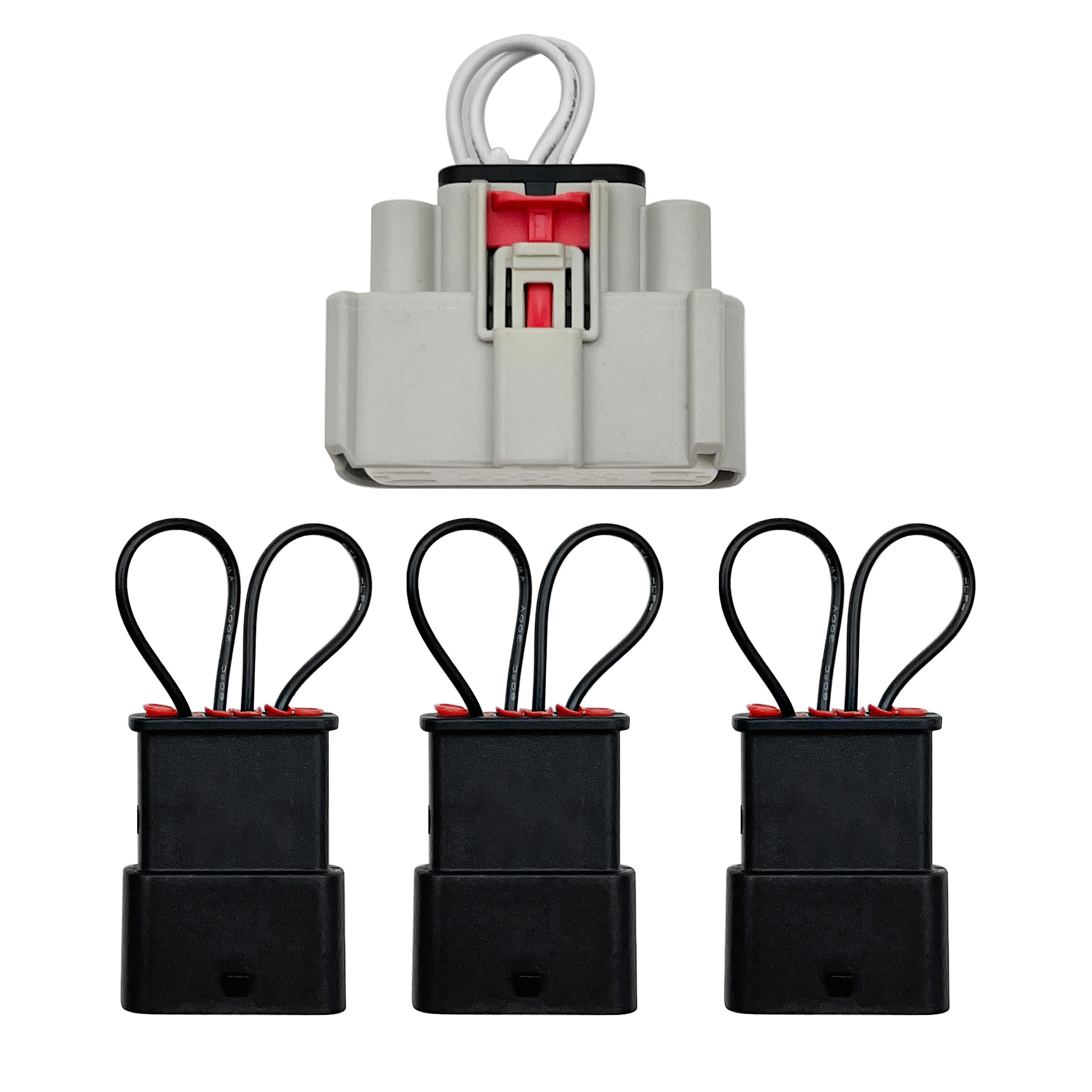

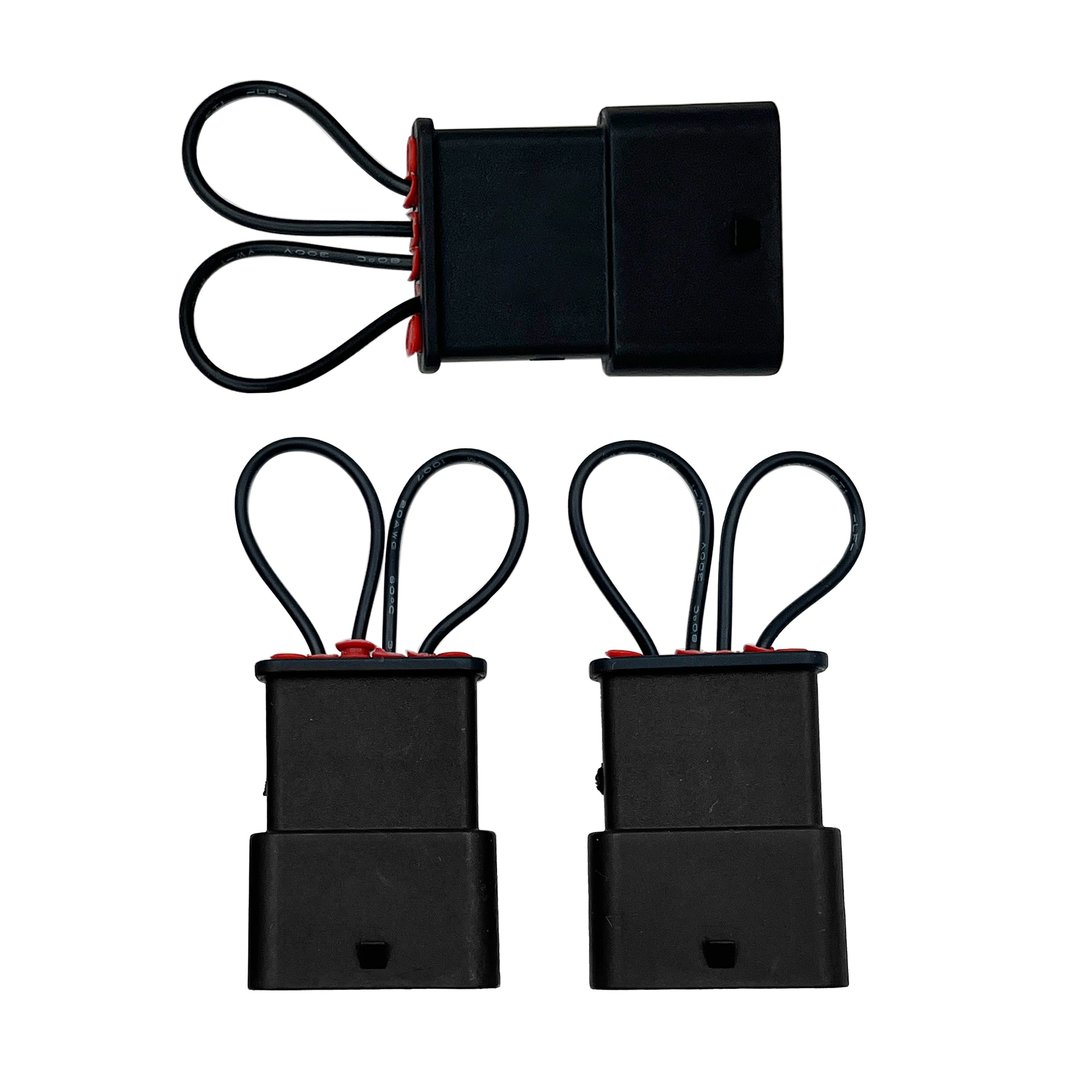

Find the plug on the lower internal frame rail at the rear of the truck and unplug it, then clip one of the black plugs provided in the kit onto the factory socket port.
Step 2 :
Find the second plug along the external frame guide rail. Before removing the plug, pop out the red label and fasten the black plug of the kit to the factory plug port.
Step 3 :
Find the third plug under the hood on the driver's side along the firewall, and clip the black plug of the kit onto the factory plug port.
Step 4 :

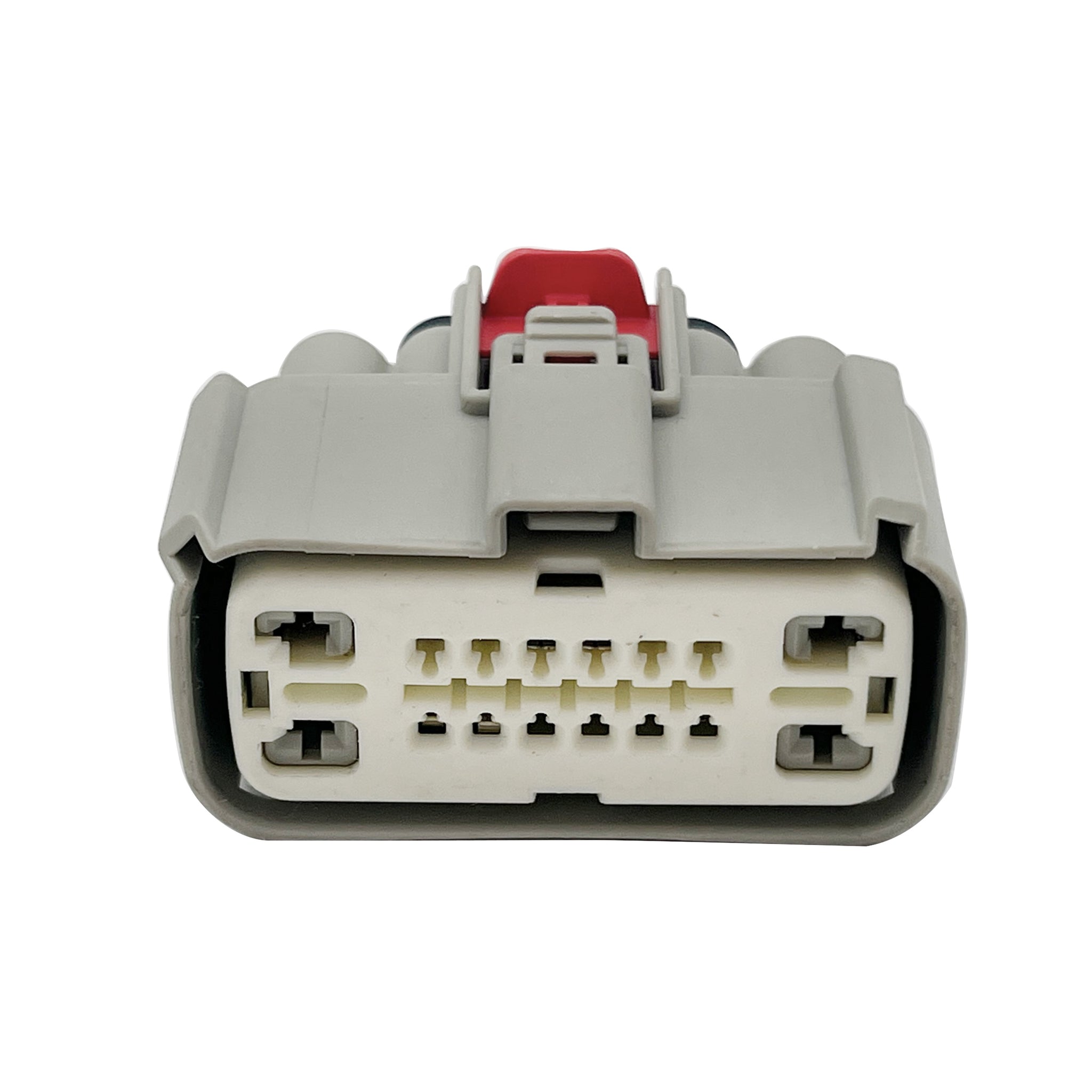

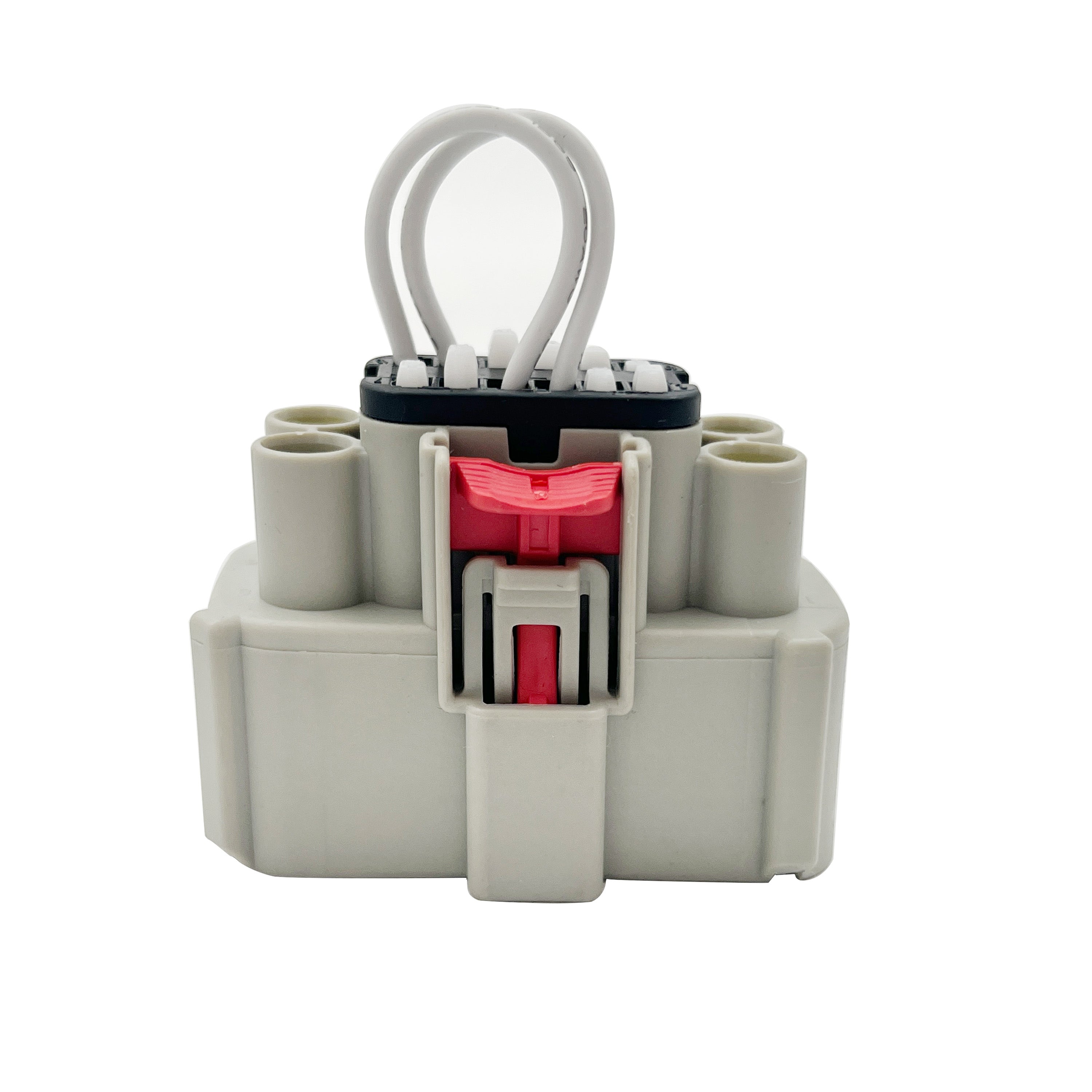

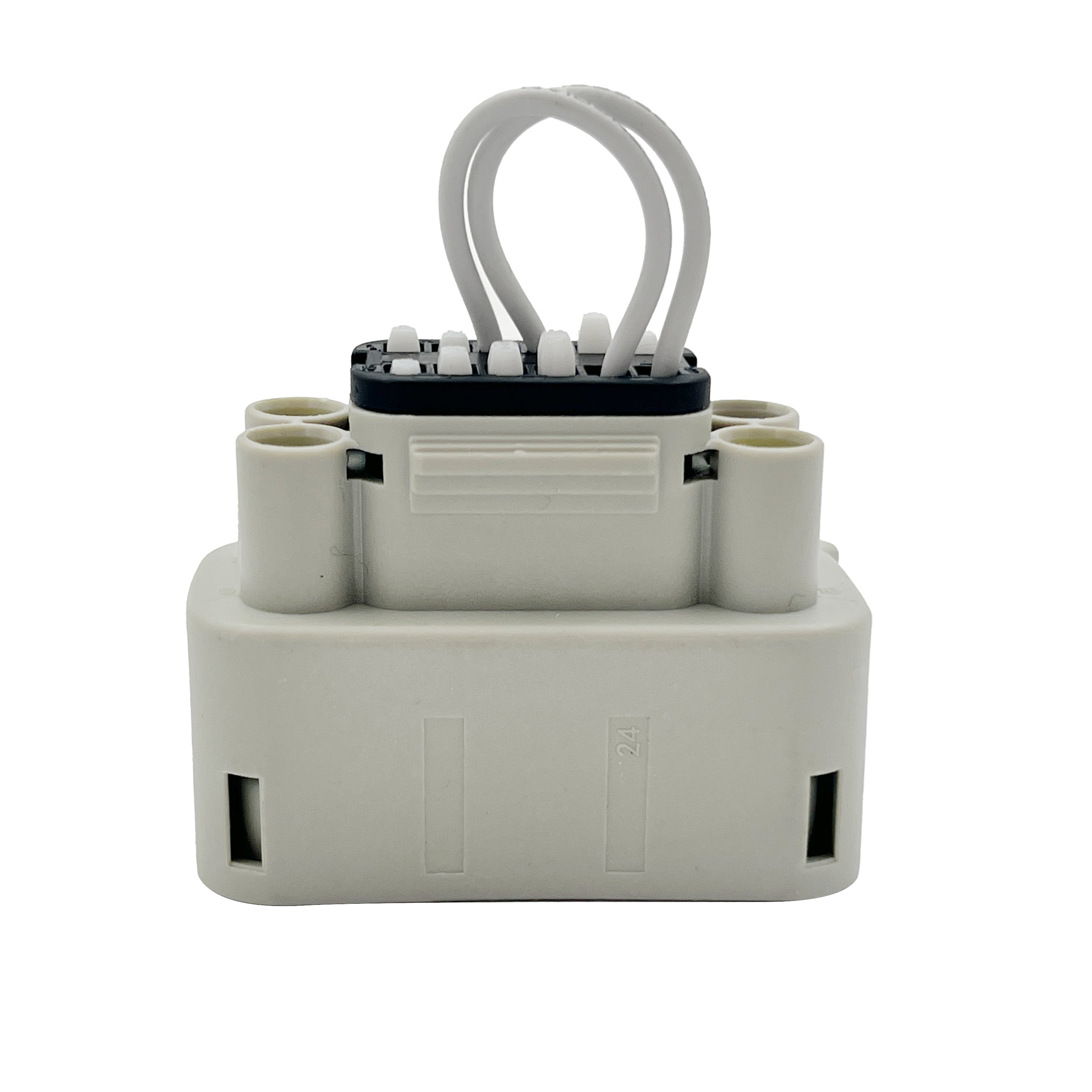

On the other side of the fuel tank, under the front of the truck, find and disconnect the white plug above the torsion bar, and install the CANBUS plug. Similarly, before removing the plug, the red label needs to be popped out.
Step 5 :
Slide the clamp or factory clamp inside the kit onto the PCV hose that leaves the factory, slide the hose onto the 90 inch connector, and then tighten the 90 inch connector so that it does not come into contact with the oil injection pipe or the factory crossover pipe.
Step 6 :
1.Install the bracket. The M10 bolt will be screwed into the support bolt. Secure the transmission dipstick to the bracket using 1/4-20 bolts, nuts, and washers.
2.The bracket will hold the coolant hose connector in place.
