How it Installation?
Installation instructions
Step 1 :
Disassemble the OEM exhaust system. Starting from the flange end of the downspout, unscrew the flange connection and loosen the clamp at the rear of the particle filter.
Step 2 :
Remove the metal hanger from the OE rubber hanger and the pipeline/sensor from the particle filter. Remove the DPF from the truck.
Step 3 :

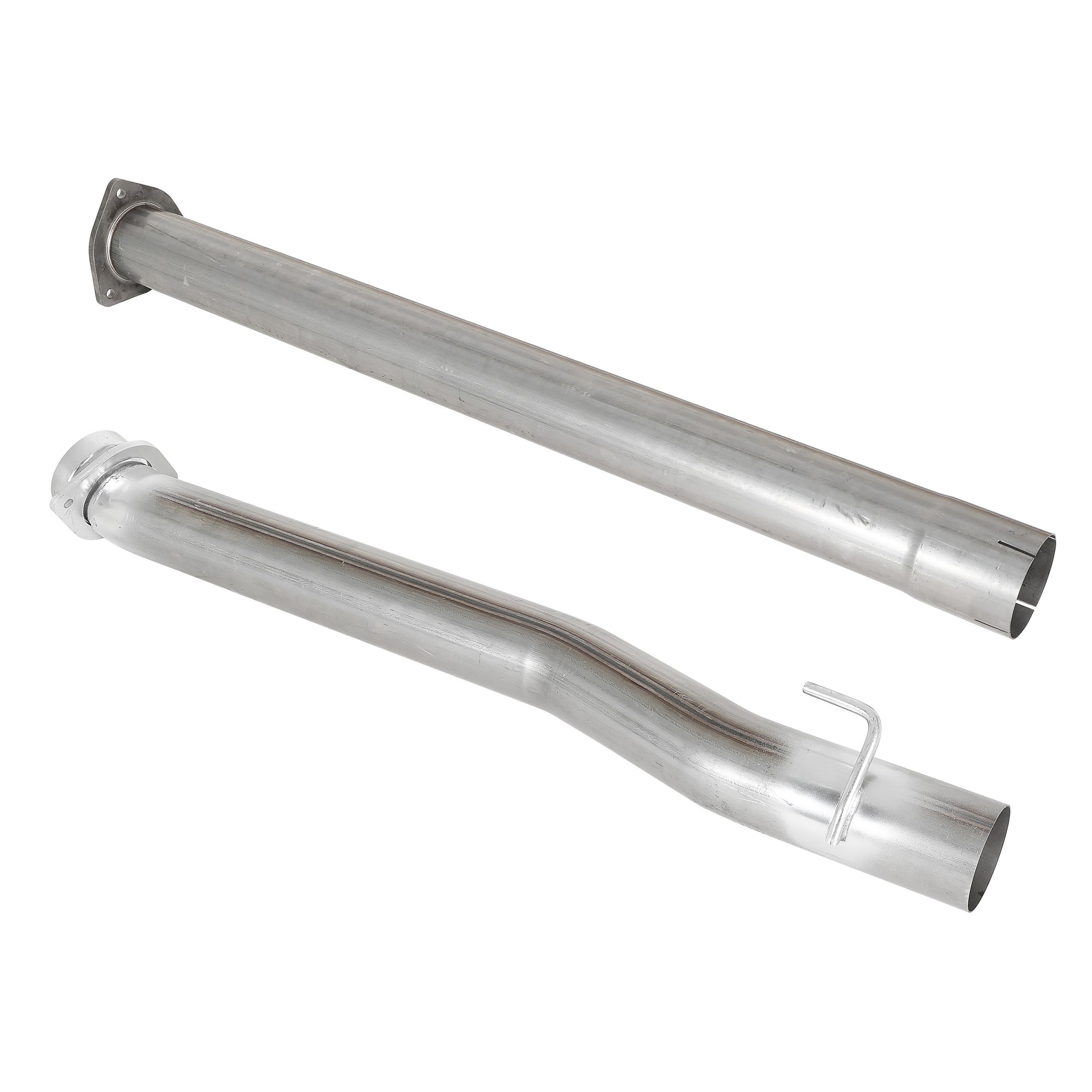

Install #1 pipe by loosely tighten the flange to the flanged end of downpipe.
Step 4 :
Next, install #2 pipe, placing hanger onto the OEM rubber mount and bolt-ing the flanges together at the rear end.
Step 5 :
Adjust the gap and appearance of the new system when the pipeline installation is loose. Tighten all clamps evenly, starting from the front flange connection and tightening all the way to the back.
Step 6 :
1.Install the bracket. The M10 bolt will be screwed into the support bolt. Secure the transmission dipstick to the bracket using 1/4-20 bolts, nuts, and washers.
2.The bracket will hold the coolant hose connector in place.
